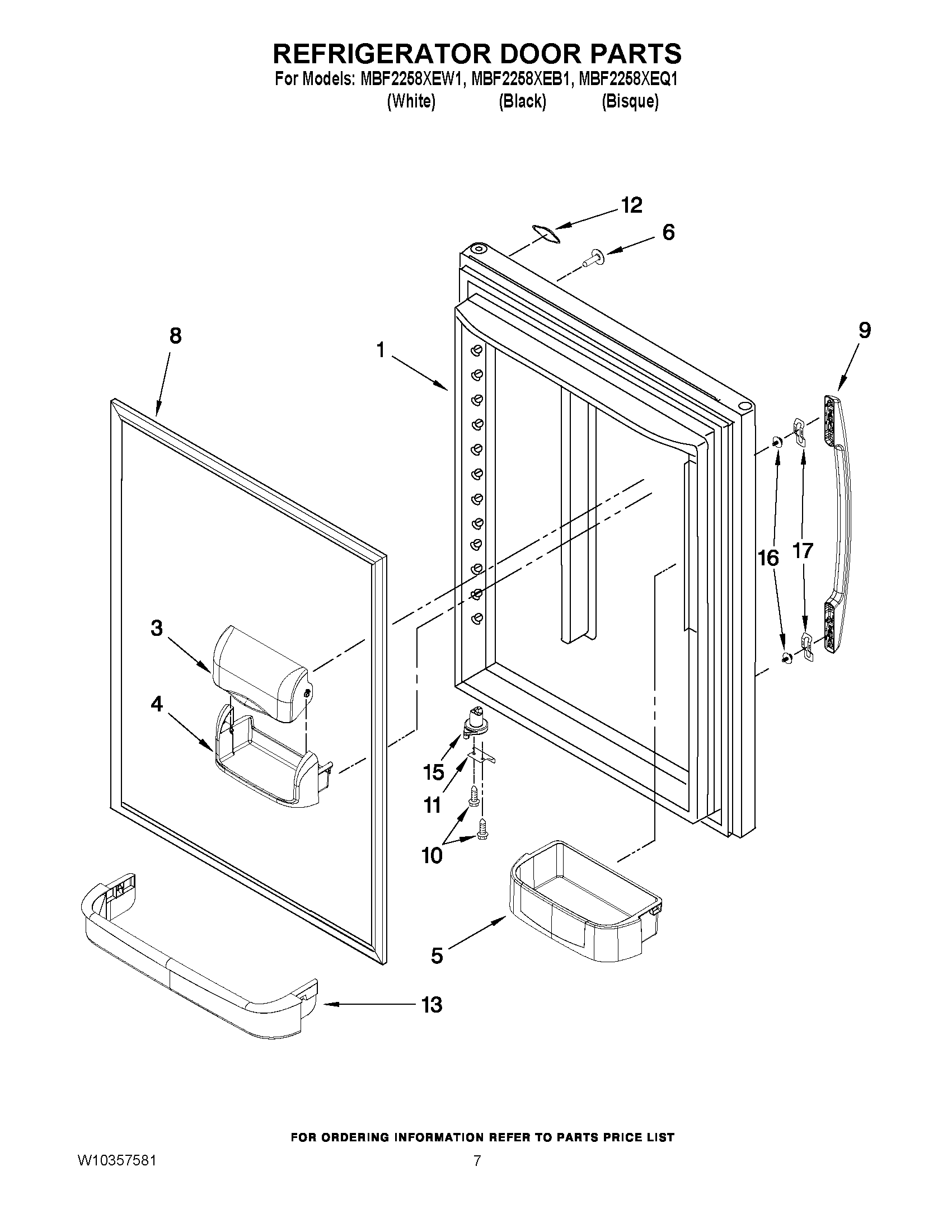

MBF2258XEW1 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY 12658572W
1	MAY 12658572Q
1	MAY 12658572B
3	MAY 12804701SP
4	MAY 12369502SP
5	MAY 12801902V
6	SCREW, HANDLE HOLE (BISQUE)
6	PLUG, BUTTON (BLACK)
6	WHITE
8	GASKET, DOOR MAGNETIC (WHITE)
8	GASKET, DOOR MAGNETIC (BLACK)
9	MAY W10252285N
9	MAY W10252284N
9	MAY W10252287N
10	MAY 12990504
11	MAY 10447113
11	Stop, Door (Black)
11	MAY 10447111
12	Nameplate
13	MAY 12557905
15	MAY 12028505W
15	MAY 12028505B
16	WP12992902 Whirlpool Refrigerator Screw
17	MAY 2255411
