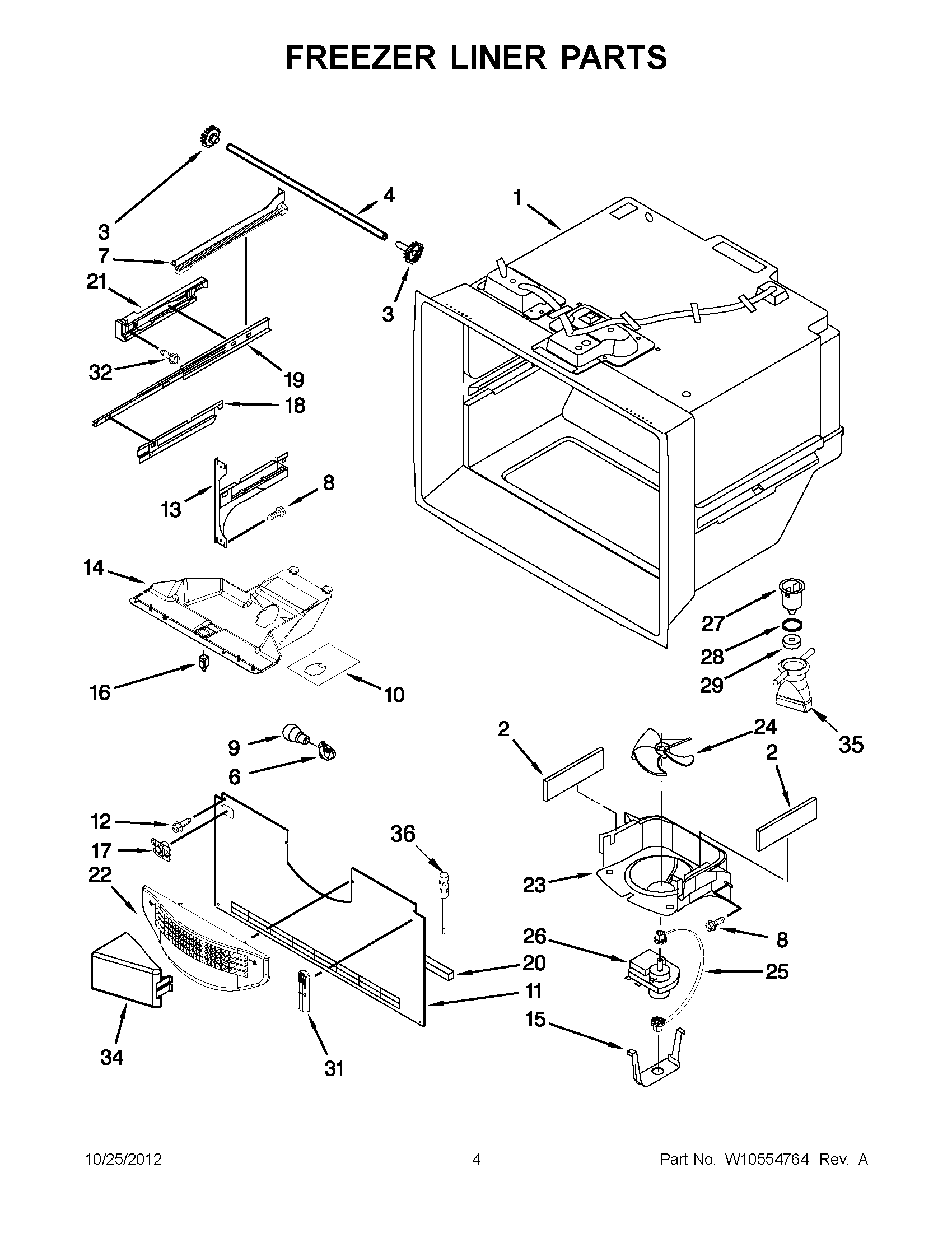

MBF2258XEW5 02 – FREEZER LINER PARTS

MBF2258XEW5 02 – FREEZER LINER PARTS

Written by

in

MBF2258XEW5 02 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
312002497 Whirlpool Refrigerator Drawer Gear Kit
4MAY 12812902WD
6W11447232 Whirlpool Refrigerator Socket
7MAY W10516603
7MAY W10516602
8Screw (8)
9BULB, LIGHT
10FOIL-FZ LIGHT
11MAY W10308415
12MAY 12990101
13MAY W10330991
13MAY W10330993
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466105
17MAY 12932103
18CRADLE-BASKET (LEFT HAND)
18CRADLE-BASKET (RIGHT HAND)
19SLIDE, DRAWER (2)
20MAY A3189395
21ADAPTER, SLIDE (LEFT HAND)
21ADAPTER, SLIDE (RIGHT HAND)
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10150583
26MAY 13062901
27MAY D7753903
28MAY M0500703
29Gasket
31MAY 12815301
32Screw (6)
34MAY W10157765
35MAY W10309238
36MAY 12791409SP
