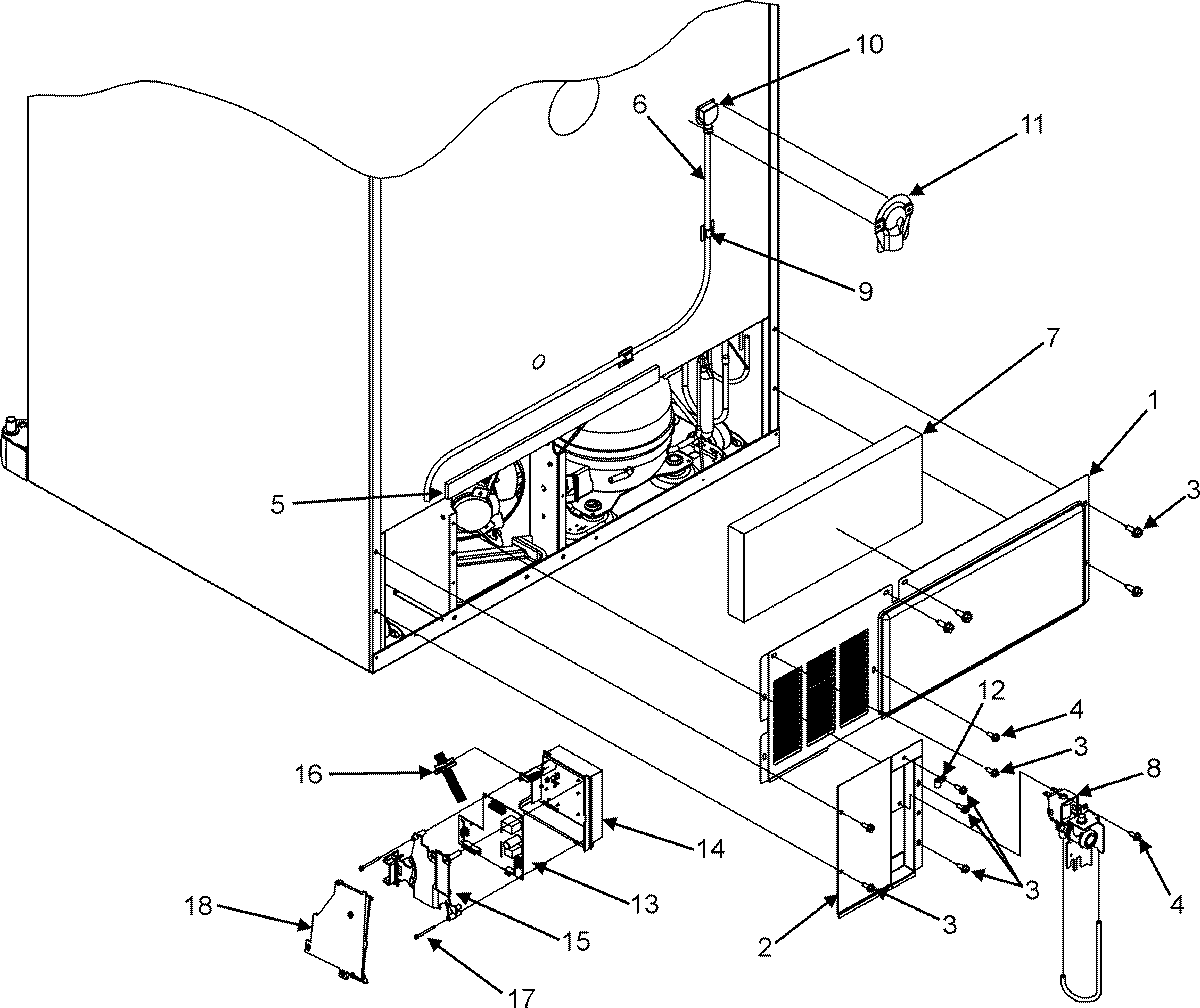

MBF2262HEB 01 – CABINET BACK

Products

Position	Product
1	MAY 67006101
1	BACK, MACH COMP
2	MAY 67001097
3	MAY M0238616
4	681390 Whirlpool Refrigerator Screw
5	Gasket
6	Tubing, Plastic
7	67003796 Whirlpool Refrigerator Fiber Acoustic
8	WP67003753 Whirlpool Refrigerator Inlet Valve
9	WPM0104106 Whirlpool Refrigerator Clip
10	ELBOW, FILL TUBE
10	Clip
11	COVER, WATER LINE
11	MAY 67004822
12	W10833902 Whirlpool Refrigerator Clamp
13	MAY 12002610
13	MAY 67006211
14	MAY 67004969
15	MAY 67005418
16	67005419 Whirlpool Refrigerator HV Board Harness
17	MAY 67005420
18	MAY 67005421
18	MAY 67005332
19	MAY A3223101
20	WP67006506 Whirlpool Refrigerator Power Cord
