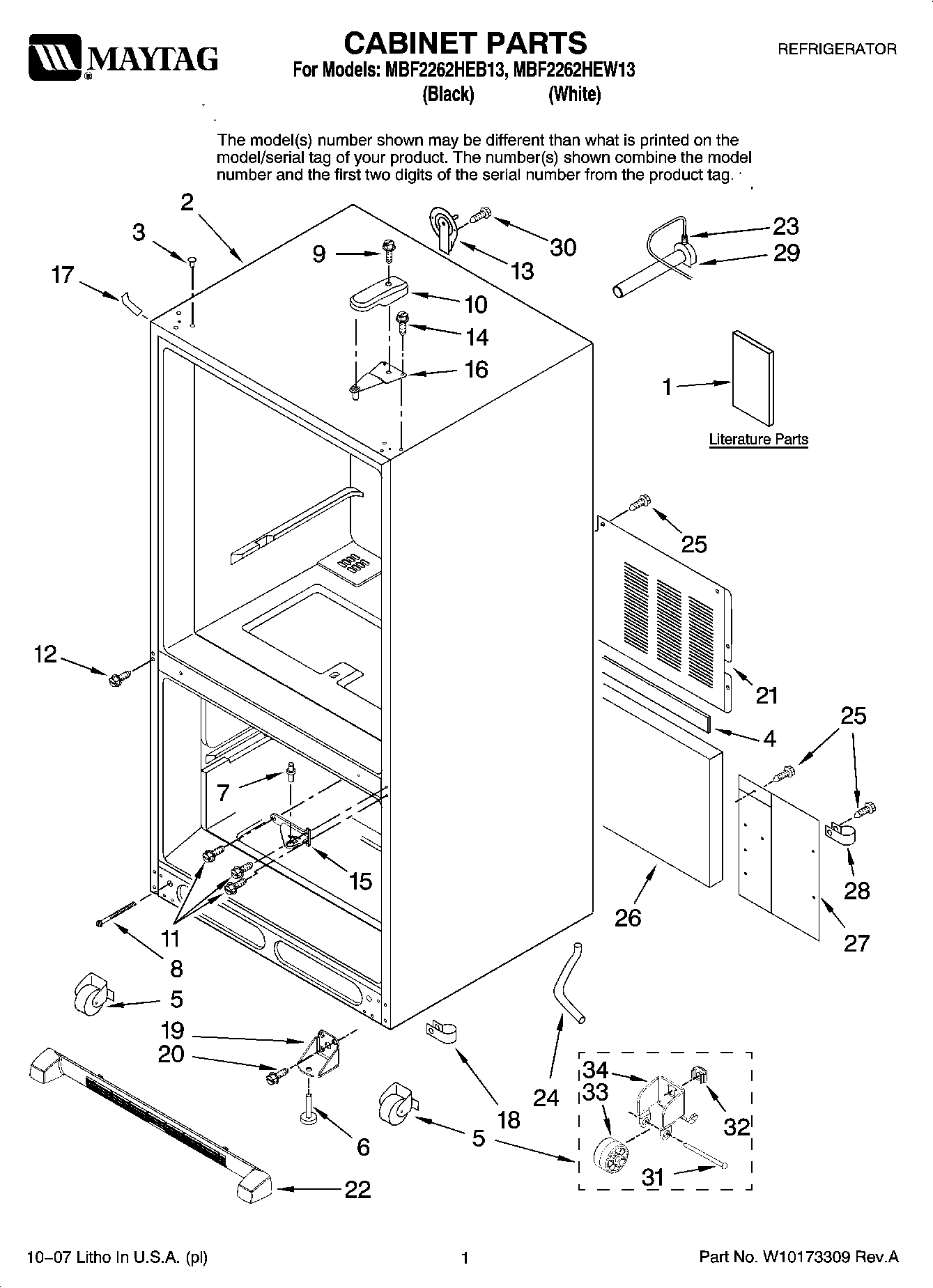

MBF2262HEW13 01 – CABINET PARTS

Products

Position	Product
1	MAY W10123422
1	MAY W10168777
1	Owners Manual
3	MAY M0310729
3	MAY M0310731
4	Gasket
5	Roller Assy.(Rear)
6	W11177593 Whirlpool Leveling Feet
7	WP67006642 Whirlpool Refrigerator Pin
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	67001014 Whirlpool Refrigerator Top Hinge Cover White
10	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
11	MAY 67005822
12	Screw (8)
13	COVER, WATER LINE
14	WP489349 Whirlpool Refrigerator Screw
15	WP12607104ED Whirlpool Refrigerator Door Hinge
15	WP12607103WD Whirlpool Refrigerator Center Hinge
16	Hinge, Top
17	67003484 Whirlpool Refrigerator White Corner Cover
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	67001067 Whirlpool Refrigerator Drain Tube Clip
19	12906303WD Whirlpool Refrigerator Bracket
20	MAY 67006564
21	MAY 67006101
22	WPW10534161 Whirlpool Refrigerator Front Grille
22	WPW10534162 Whirlpool Refrigerator Front Grille
23	Clip
24	MAY 67001066
25	Screw (10)
26	67003796 Whirlpool Refrigerator Fiber Acoustic
27	MAY 67001097
28	W10833902 Whirlpool Refrigerator Clamp
29	MAY W10137519
30	WP98165 Whirlpool Screw
31	MAY M1205302
32	MAY M0286708
33	WP10450603 Whirlpool Refrigerator Roller
34	12456801V Whirlpool Refrigerator Bracket
