MBF2556HEQ 09 – REFRIGERATOR DOOR

MBF2556HEQ 09 – REFRIGERATOR DOOR

Written by

in

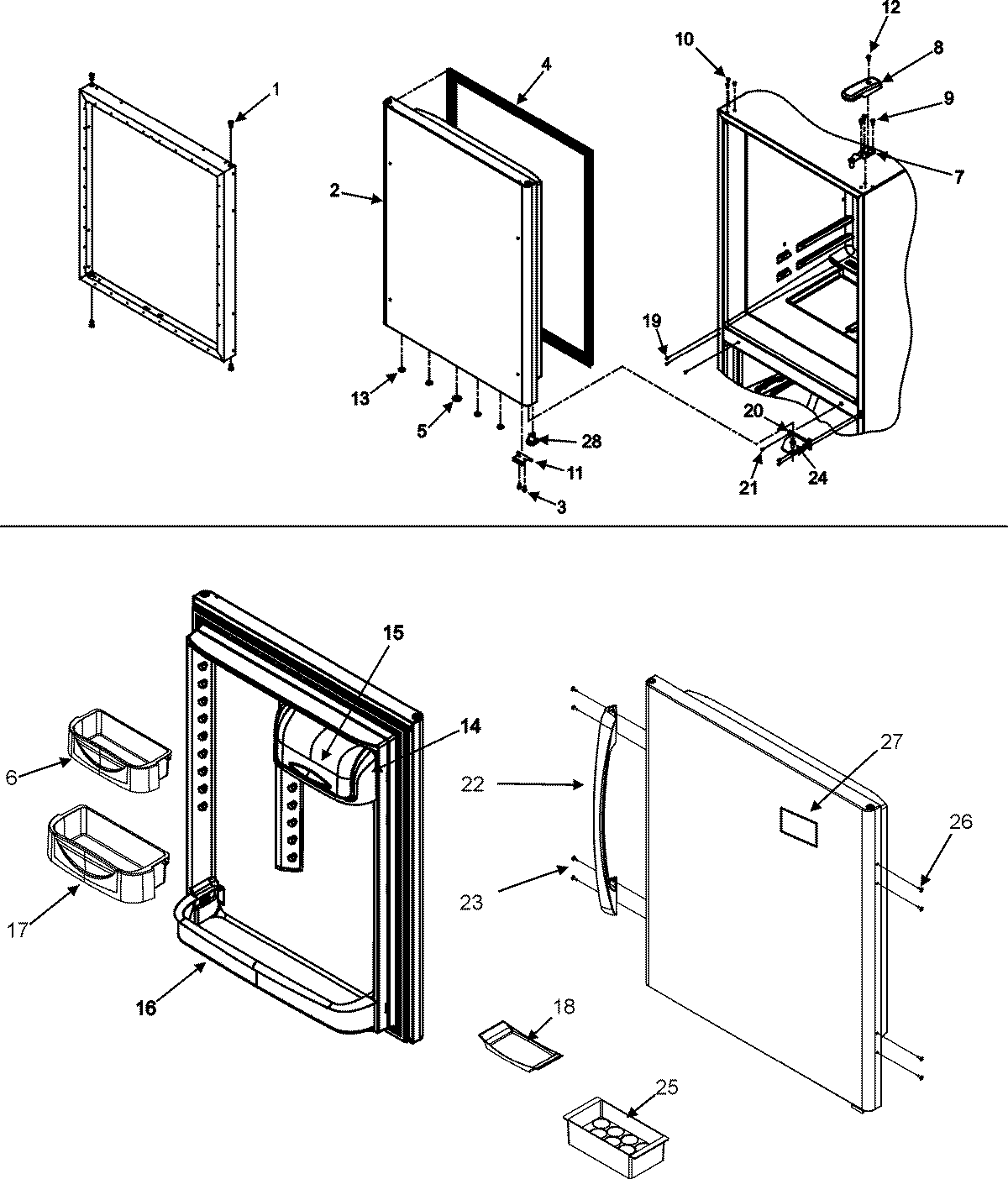

MBF2556HEQ 09 – REFRIGERATOR DOOR

Products

PositionProduct
1WP67004977 Whirlpool Refrigerator Door Hinge Bushing
212658531CQ Whirlpool Refrigerator DOR-FIP Board
3MAY M0211533
4W10443317 Whirlpool Refrigerator FIP Gasket
5MAY A3080002
667004040 Whirlpool Refrigerator Bucket Door
7WP12566606ED Whirlpool Refrigerator Door Hinge
8MAY 67001013
9MAY M0238731
10MAY M0310738
1167003781 Whirlpool Refrigerator Door Stop (BSQ)
12WP8281196 Whirlpool Screw
1310712401 Whirlpool Refrigerator Vent Plug (White)
14WP67001279 Whirlpool Refrigerator Dairy Tray
15WP67003637 Whirlpool Dairy Door
16Retainer, Door
17Bucket, Lrg (2)
18MAY 29936-2
19WP489349 Whirlpool Refrigerator Screw
20WP12607103WD Whirlpool Refrigerator Center Hinge
21MAY M0226233
22MAY 67004043
2367004707 Whirlpool Refrigerator Hi Torque Screw (BSQ)
24WP67006642 Whirlpool Refrigerator Pin
25MAY 67215-2
26MAY 12246604
272324038 Whirlpool Refrigerator Nameplate
28WP67003638 Whirlpool Closing Cam
