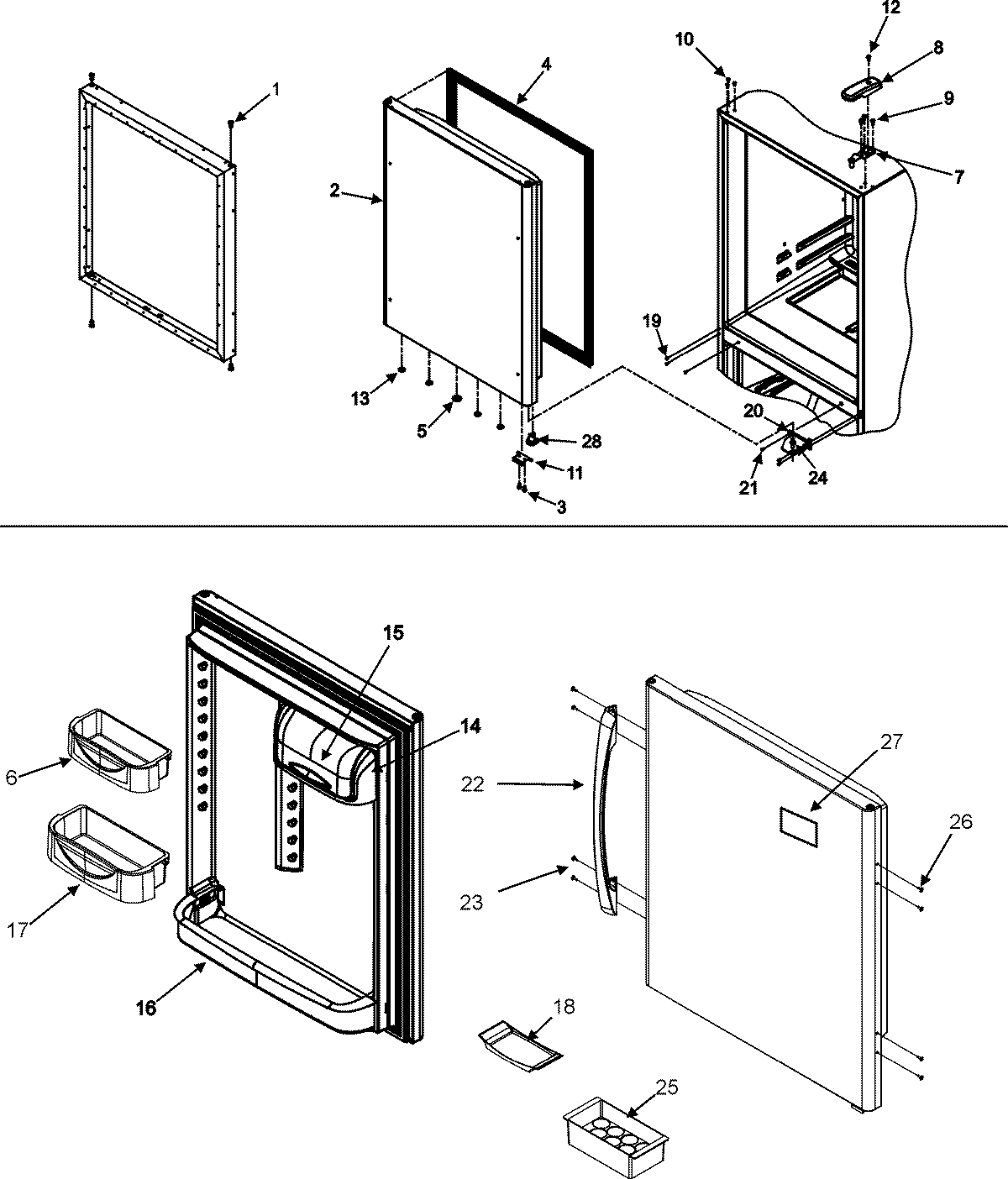

MBF2556HES 09 – REFRIGERATOR DOOR

MBF2556HES 09 – REFRIGERATOR DOOR

Written by

in

MBF2556HES 09 – REFRIGERATOR DOOR

Products

PositionProduct
167004978 Whirlpool Refrigerator Black Door Bushing
2MAY 67004506
3MAY M0211533
4W10849442 Whirlpool Refrigerator FIP Gasket
5MAY A3080001
667004040 Whirlpool Refrigerator Bucket Door
7WP12566606ED Whirlpool Refrigerator Door Hinge
867001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
9MAY M0238731
10MAY M0310731
11W11708403 Whirlpool Door Stop
12WP8281196 Whirlpool Screw
1367004838 Whirlpool Refrigerator Button Vent Plug
14WP67001279 Whirlpool Refrigerator Dairy Tray
15WP67003637 Whirlpool Dairy Door
16Retainer, Door
17Bucket, Lrg (2)
18MAY 29936-2
19WP489349 Whirlpool Refrigerator Screw
20WP12607104ED Whirlpool Refrigerator Door Hinge
21MAY M0226233
22MAY 67004045
23MAY 67004048
24WP67006642 Whirlpool Refrigerator Pin
25MAY 67215-2
26WP12246610 Whirlpool Refrigerator Handle Plug
272324038 Whirlpool Refrigerator Nameplate
28WP67003639 Whirlpool Refrigerator Closer
