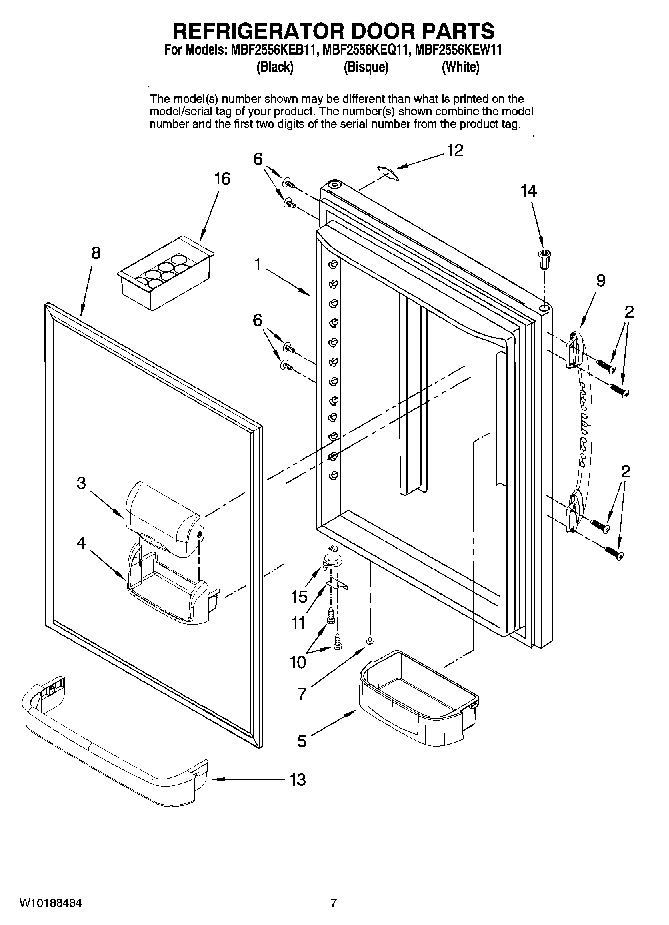

MBF2556KEB11 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	12658531CQ Whirlpool Refrigerator DOR-FIP Board
1	MAY 67004415
1	Refrigerator Door (w/Liner) (Black)
2	67006806 Whirlpool Refrigerator Screw HI Torque Black
2	67004707 Whirlpool Refrigerator Hi Torque Screw (BSQ)
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	Bucket, Lrg (2)
5	67004040 Whirlpool Refrigerator Bucket Door
6	SCREW (BLK)
6	MAY 12991104
6	MAY 12991103
7	67004838 Whirlpool Refrigerator Button Vent Plug
7	10712401 Whirlpool Refrigerator Vent Plug (White)
8	GASKET, REF DR (WHT)
8	Door Gasket, Magnetic (Black)
9	MAY 67006120
9	MAY 67006119
9	MAY 67006887
10	WP98165 Whirlpool Screw
11	67003781 Whirlpool Refrigerator Door Stop (BSQ)
11	12968202W Whirlpool Refrigerator Door Stop
11	W11708403 Whirlpool Door Stop
12	2324038 Whirlpool Refrigerator Nameplate
13	Retainer, Door
14	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
14	67004978 Whirlpool Refrigerator Black Door Bushing
15	WP67003639 Whirlpool Refrigerator Closer
15	WP67003638 Whirlpool Closing Cam
16	MAY 67215-2
