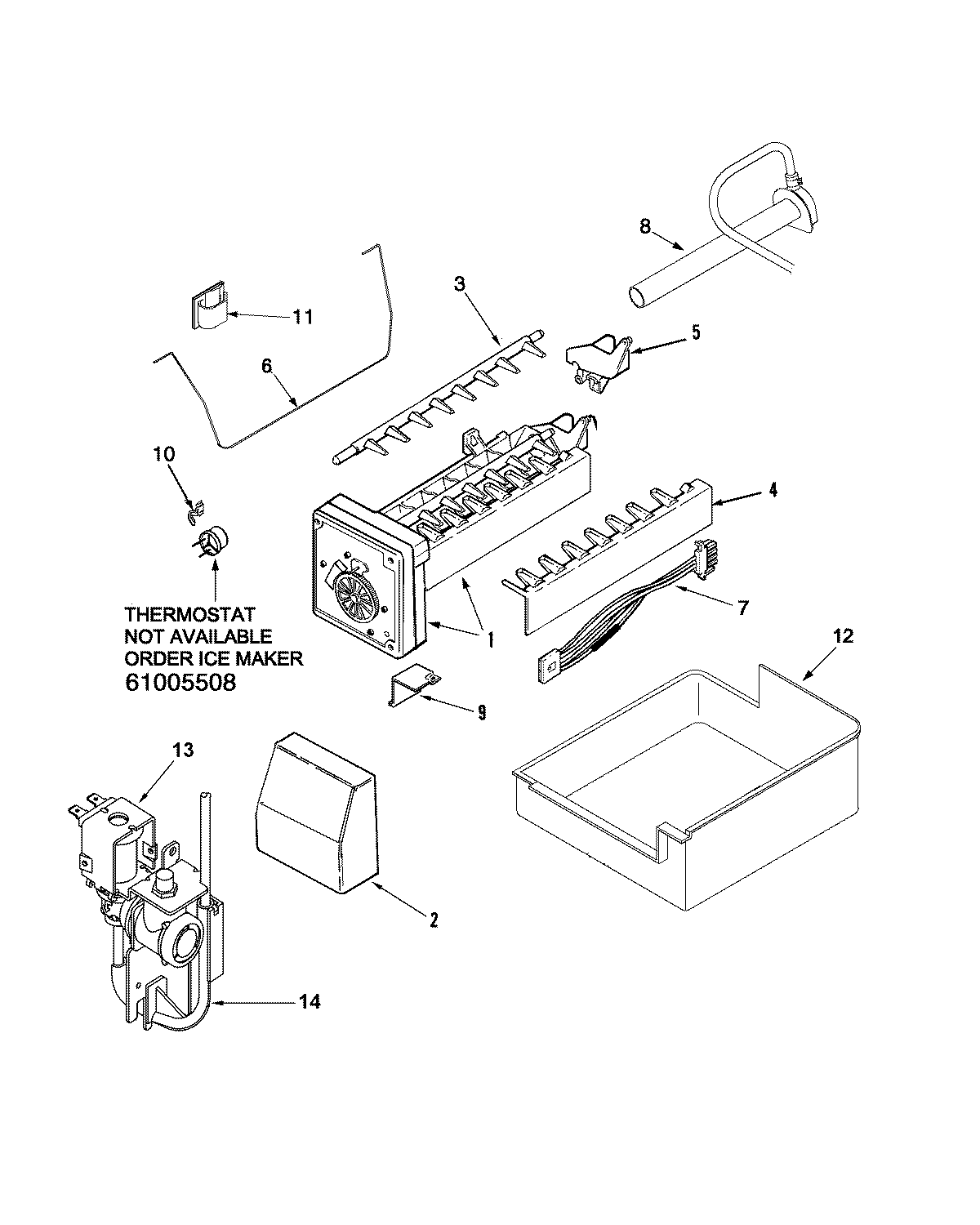

MBF2558HEQ 07 – ICE MAKER

Products

Position	Product
1	WP2256087 Whirlpool Refrigerator Bracket
1	MAY M0238616
1	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
2	WPW10289690 Whirlpool Ice Maker Cover
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	WP628356 Whirlpool Refrigerator Fill Cup
6	ARM-SHUT
7	WPD7813010 Whirlpool Refrigerator Wire Harness
8	ELBOW, FILL TUBE
9	BRACKET, MODULE & HEATER
9	MAY 95108-1
10	WP2315522 Whirlpool Refrigerator Clip
11	WPM0104106 Whirlpool Refrigerator Clip
12	WP67001255 Whirlpool Ice Bucket
13	WP67003753 Whirlpool Refrigerator Inlet Valve
14	Tubing, Plastic
15	W10833902 Whirlpool Refrigerator Clamp
16	MAY A3223101
16	Clip
17	W11033771 Whirlpool Refrigerator Coupling
