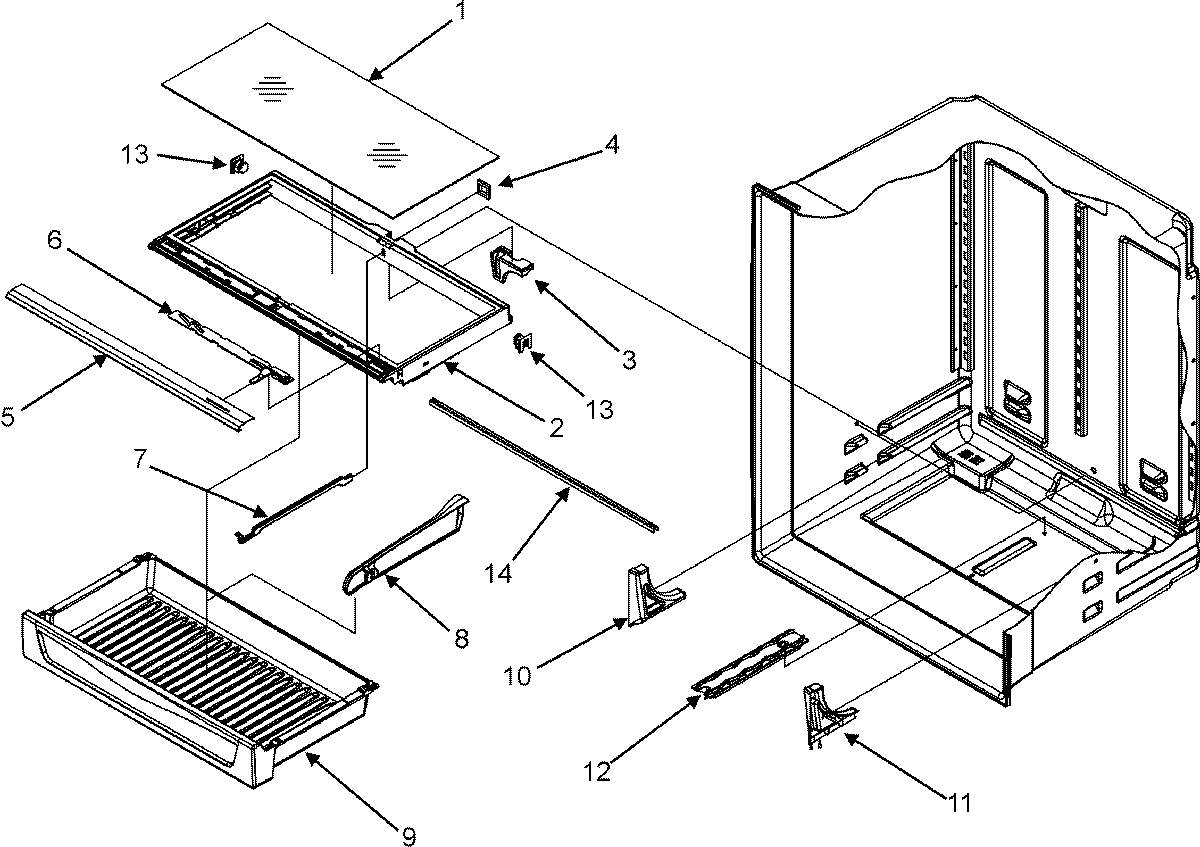

MBF2562HEW 09 – PANTRY ASSEMBLY

MBF2562HEW 09 – PANTRY ASSEMBLY

Written by

in

MBF2562HEW 09 – PANTRY ASSEMBLY

Products

PositionProduct
1WP67006704 Whirlpool Glass Crisper Cover
2WP67003854 Whirlpool Shelf Frame
3WP12531601 Whirlpool Refrigerator Tunnel
4MAY 67002005
5EXTR., PANTRY FRONT
667002002 Whirlpool Refrigerator Pantry Slide
7MAY 67004555
867004556 Whirlpool Refrigerator Pantry Divider
9MAY 67004557
10WP67001721 Whirlpool Refrigerator Support
11WP67001722 Whirlpool Refrigerator Support
12SCREW, SM
12WP67001719 Whirlpool Refrigerator Track
13WP12603701 Whirlpool Refrigerator Support
14WP12642303WD Whirlpool Refrigerator Drawer Support
