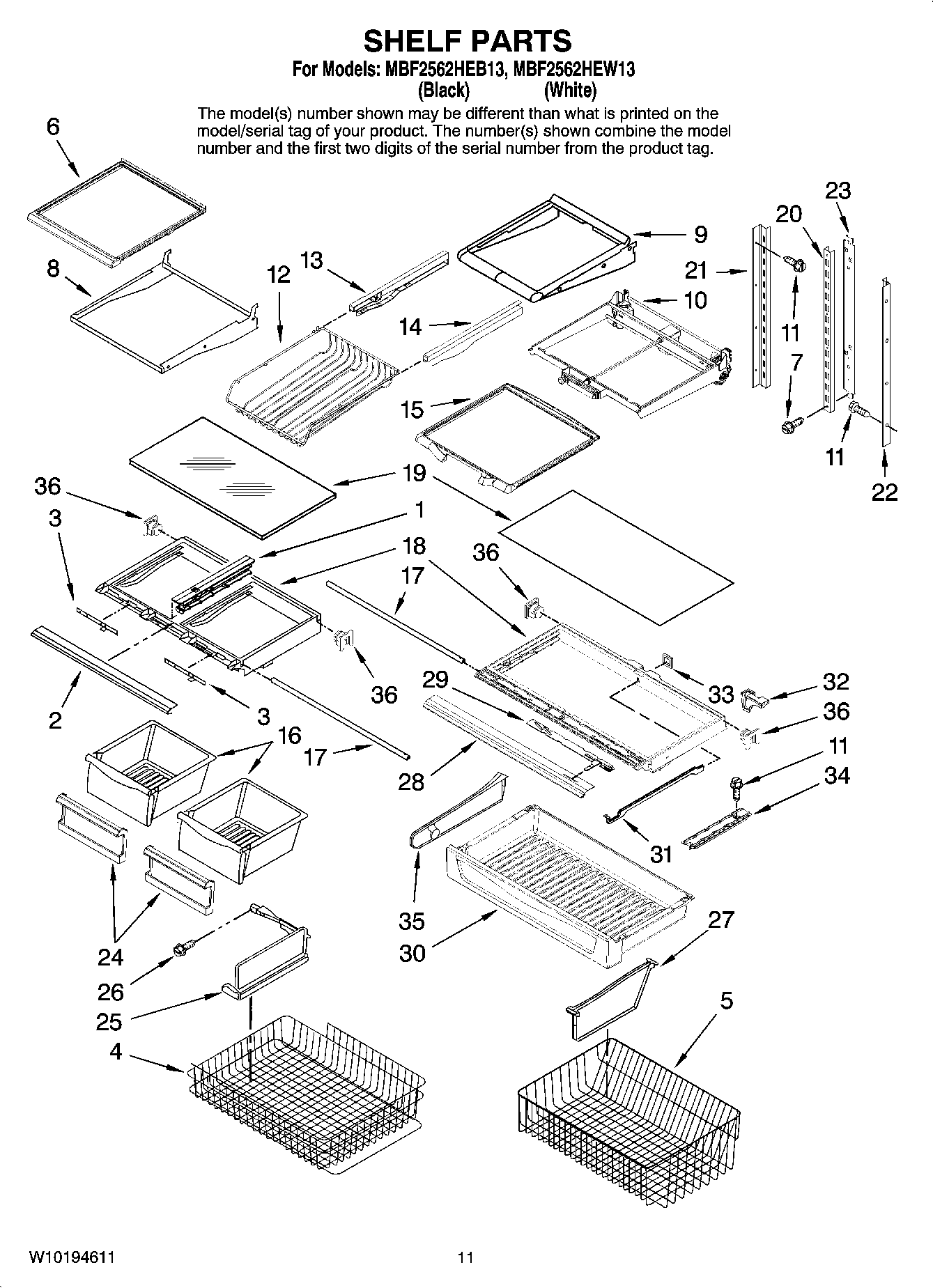

MBF2562HEW13 07 – SHELF PARTSadmin2025-04-26T13:08:59+00:00MBF2562HEW13 07 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | WPW10326469 Whirlpool Drawer Slide Rail |
| 2 | WPW10231345 Whirlpool Refrigerator Shelf Trim |
| 3 | MAY 67005864 |
| 4 | 67004987 Whirlpool Refrigerator Upper Basket |
| 5 | WPW10503184 Whirlpool Refrigerator Freezer Basket |
| 6 | Shelf (2) |
| 7 | W10709795 Whirlpool Refrigerator Screw |
| 8 | Frame, Shelf (3) |
| 9 | Shelf, Can Rack |
| 10 | Frame Assy., Adj. |
| 11 | MAY 67006400 |
| 12 | MAY 67004553 |
| 13 | Glide, Left |
| 14 | WP67002191 Whirlpool Cripser Meat Pan Rail |
| 15 | Shelf, Adj. |
| 16 | WP67004515 Whirlpool Crisper Drawer |
| 17 | WP12642303WD Whirlpool Refrigerator Drawer Support |
| 18 | WP67003854 Whirlpool Shelf Frame |
| 19 | WP67006704 Whirlpool Glass Crisper Cover |
| 20 | Ladder, Center |
| 21 | Ladder, Left |
| 22 | Ladder, Right |
| 23 | MAY 67003721 |
| 24 | WP67005923 Whirlpool Refrigerator Front Cover |
| 25 | Divider, Upper Basket |
| 26 | MAY 67006608 |
| 27 | Divider, Lower Basket |
| 28 | EXTR., PANTRY FRONT |
| 29 | 67002002 Whirlpool Refrigerator Pantry Slide |
| 30 | MAY 67005924 |
| 31 | MAY 67004555 |
| 32 | WP12531601 Whirlpool Refrigerator Tunnel |
| 33 | MAY 67002005 |
| 34 | WP67001719 Whirlpool Refrigerator Track |
| 35 | 67004556 Whirlpool Refrigerator Pantry Divider |
| 36 | WP12603701 Whirlpool Refrigerator Support |
