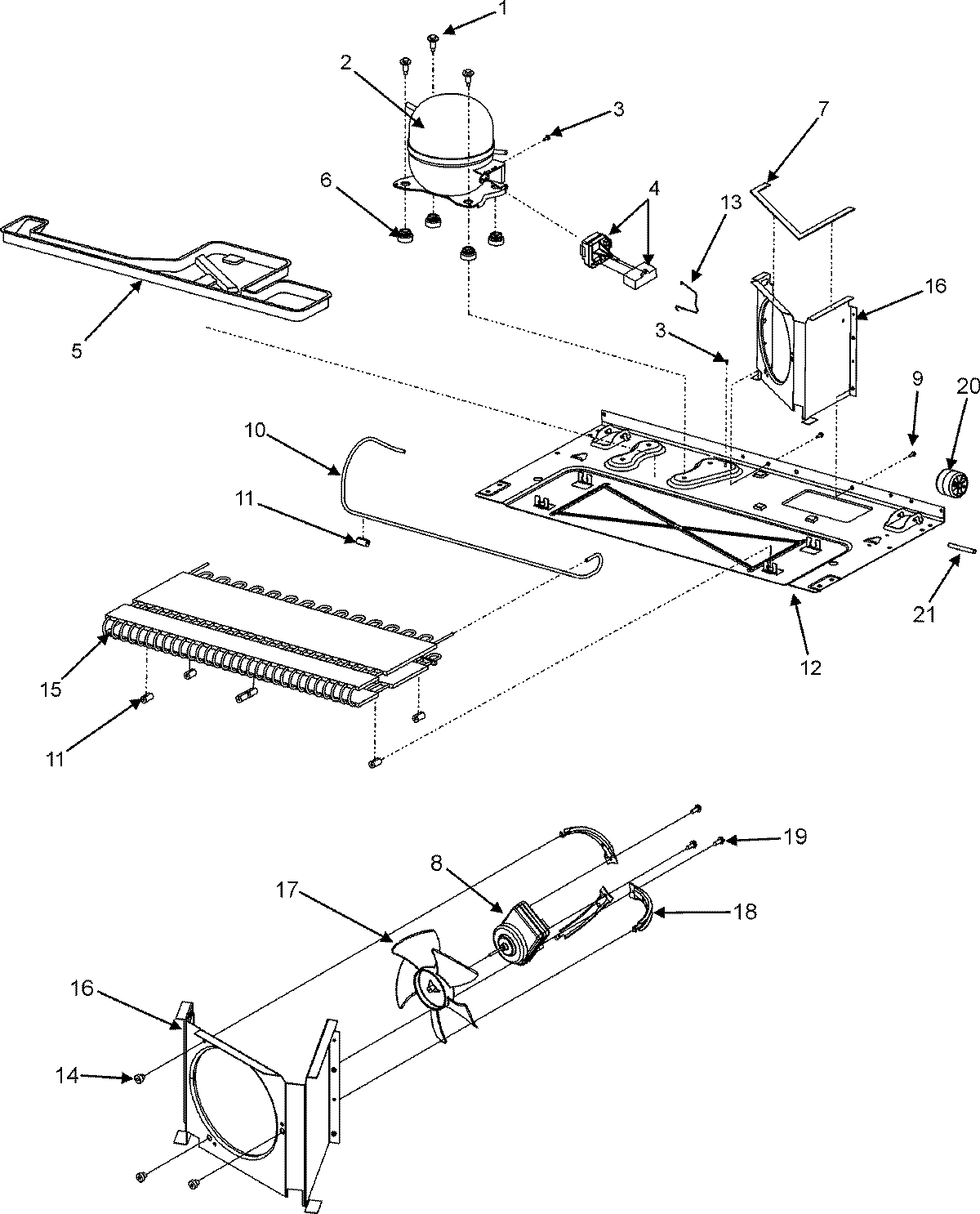

MBL1952KES 02 – COMPRESSOR/COND MOTOR/REAR ROLLERS

MBL1952KES 02 – COMPRESSOR/COND MOTOR/REAR ROLLERS

Written by

in

MBL1952KES 02 – COMPRESSOR/COND MOTOR/REAR ROLLERS

Products

PositionProduct
1MAY 67006432
2W10160407 Whirlpool Refrigerator Compressor
3MAY 67006433
4W10613606 Whirlpool Refrigerator Start Device Relay Overload
5Drain Pan
667003493 Whirlpool Refrigerator Compressor Grommet
7WP854334 Whirlpool Air Conditioner Sealing Strip
8MAY 67004432
9Screw (10)
10MAY 67004203
1167005680 Whirlpool Refrigerator Condenser Grommet
12MAY 67006914
13MAY 12576801
14GROMMET, BRACKET
1567006133 Whirlpool Refrigerator 30" Condenser BM
16SHROUD, CONDENSER FAN
17W10156818 Whirlpool Refrigerator Fan Blade
18MAY 67004953
19WP67004954 Whirlpool Refrigerator Screw
20WP67005149 Whirlpool Roller
2167006434 Whirlpool Axle Pin
