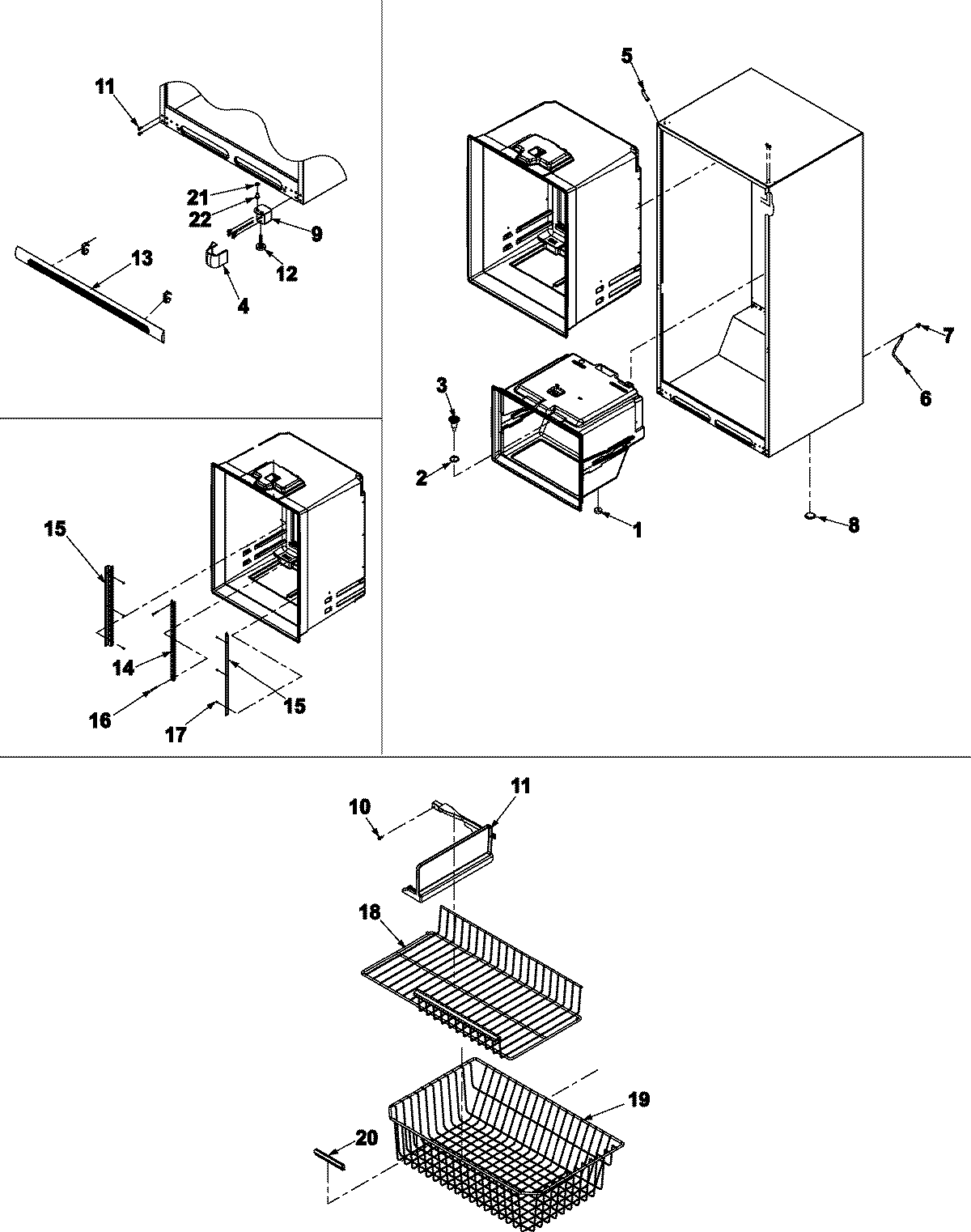

MBL1952KES 07 – INTERIOR CABINET/FRZ SHELVES/TOE GRILLE

MBL1952KES 07 – INTERIOR CABINET/FRZ SHELVES/TOE GRILLE

Written by

in

MBL1952KES 07 – INTERIOR CABINET/FRZ SHELVES/TOE GRILLE

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4Cover, Lw Hinge (Black)
567003485 Whirlpool Refrigerator Corner Cover (Black)
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
9MAY 67001068
10MAY 67006608
11Divider, Upper Basket
12W11177593 Whirlpool Leveling Feet
13Grille Assembly (Includes Clips) (Black)
13Clip, Grille
1467001073 Whirlpool Refrigerator Center Ladder
15MAY 67001302
16W10709795 Whirlpool Refrigerator Screw
17MAY 67006400
18Shelf, Freezer (Upper)
19WP12754803 Whirlpool Refrigerator Freezer Basket
20HANDLE, BASKET/SHELF
21MAY M0274057
2267007018 Whirlpool Refrigerator Bottom Hinge PIN
29MAY 67006491
