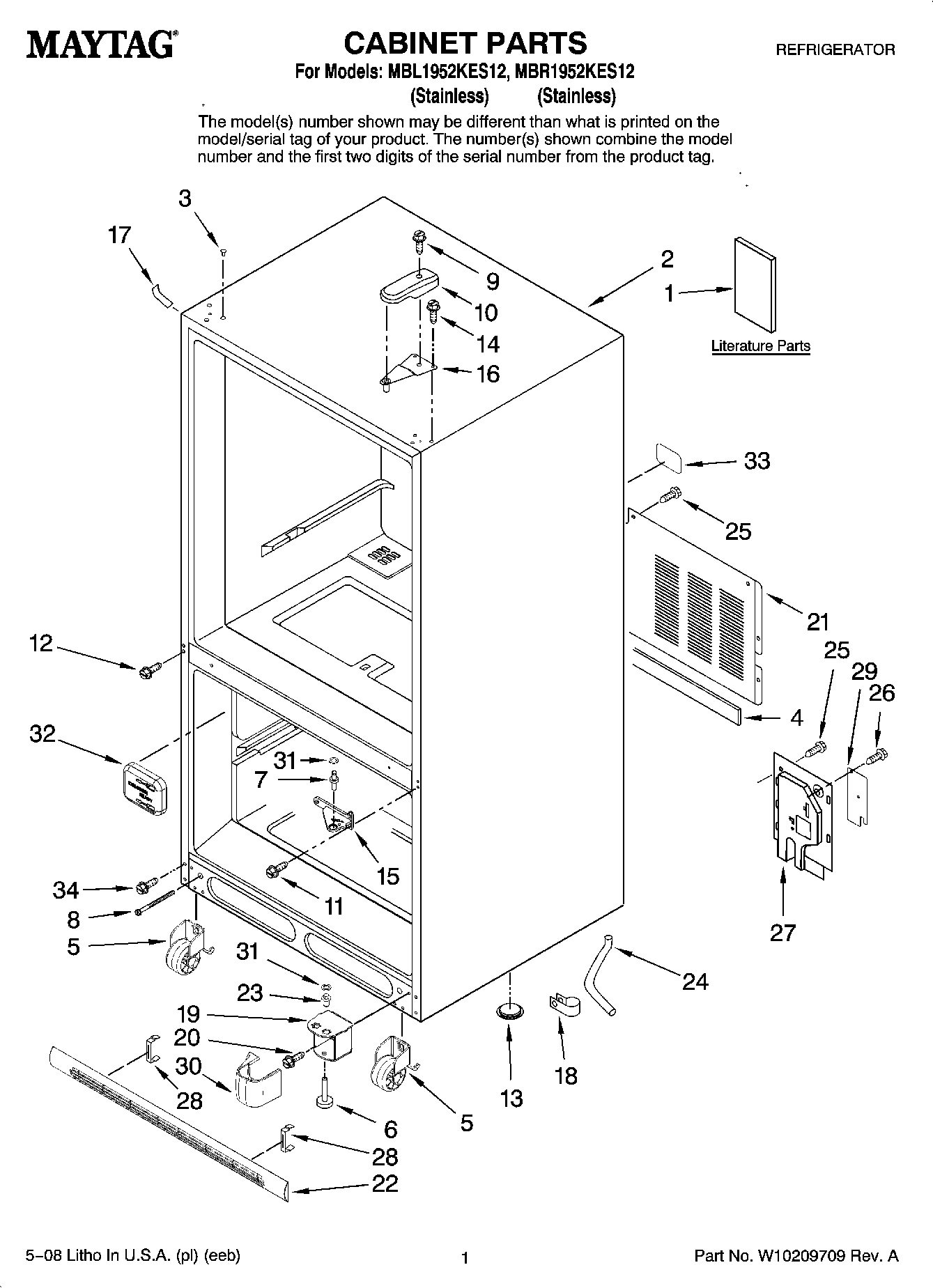

MBL1952KES12 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide
1	MAY W10169671
1	Owners Manual
3	MAY M0310731
4	Gasket
5	Roller Assy.(Rear)
6	W11177593 Whirlpool Leveling Feet
7	WP67006744 Whirlpool Refrigerator Center Pin
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
11	WP67006380 Whirlpool Screw
12	MAY 67005822
13	A3076901 Whirlpool Refrigerator Plug
14	WP489349 Whirlpool Refrigerator Screw
15	WP12607104ED Whirlpool Refrigerator Door Hinge
16	Hinge, Top
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	67001067 Whirlpool Refrigerator Drain Tube Clip
19	MAY 67001068
20	MAY 67006564
21	MAY 67006101
22	Grille Assembly (Includes Clips) (Black)
23	67007018 Whirlpool Refrigerator Bottom Hinge PIN
24	MAY 67001066
25	Screw (10)
26	MAY 67006662
27	MAY 67001173
28	Clip, Grille
29	MAY 12479901
30	Cover, Lw Hinge (Black)
31	MAY M0274057
32	WP67001098 Whirlpool Refrigerator Tube Cover
33	MAY 67005064
34	SCREW
