MBL1952KES3 06 – SHELF PARTS

MBL1952KES3 06 – SHELF PARTS

Written by

in

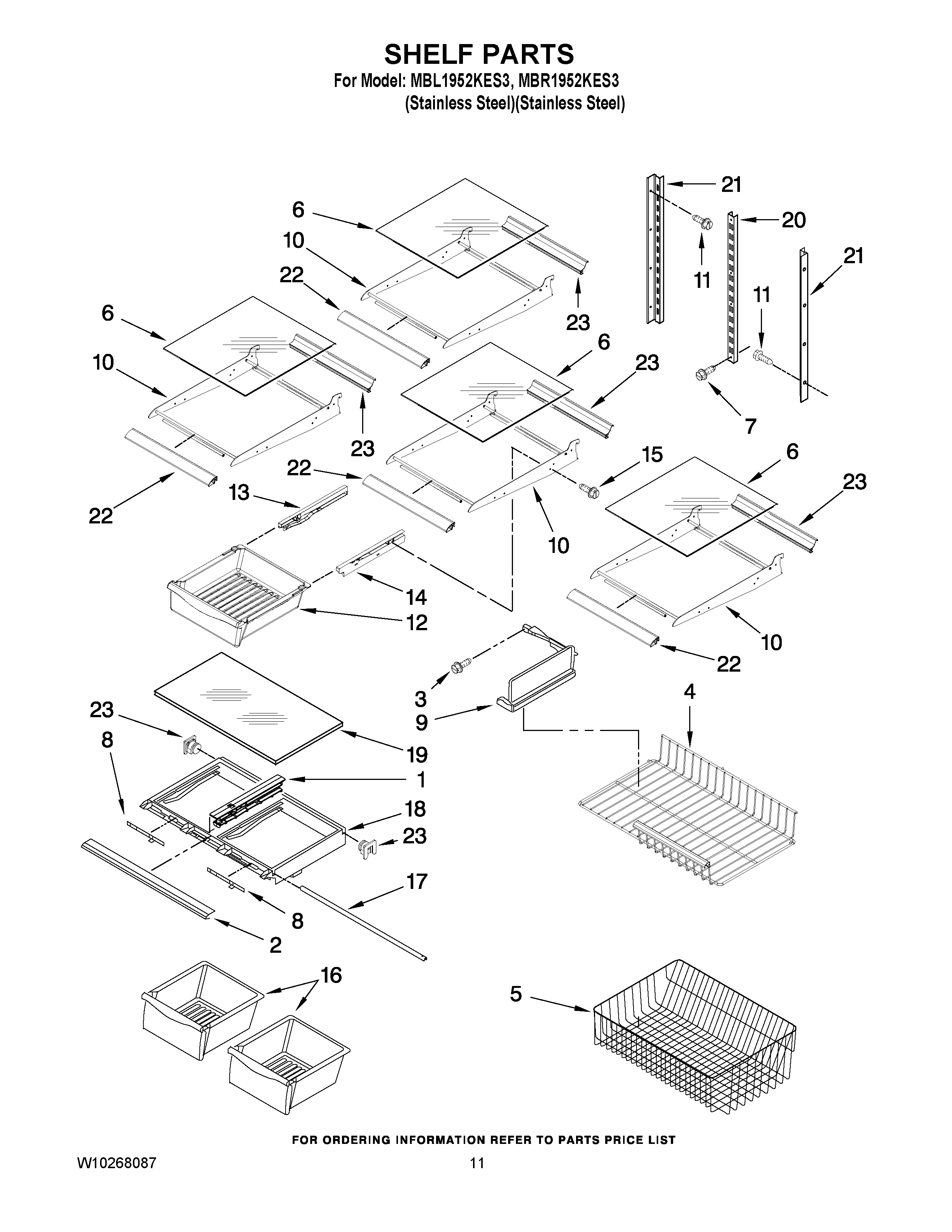

MBL1952KES3 06 – SHELF PARTS

Products

Position	Product
1	Rail, Center Crisper
2	MAY W10231339
3	MAY 12990601
4	SHELF, GLIDE (UPPER)
5	MAY W10143565
6	SHELF, GLASS (4)
7	MAY 12990515
8	MAY 12530805SP
9	Divider, Upper Basket
10	Frame, Shelf (4)
11	MAY 12990513
12	MAY 12656504V
13	MAY 12656601V
14	MAY 12656602V
15	MAY 12990302V
16	MAY 12531305
17	MAY 12227302WD
18	MAY 12530901
19	MAY 12204823
20	MAY 12435807
21	MAY 12710606
22	TRIM, FRONT DELI (2)
23	TRIM, REAR
