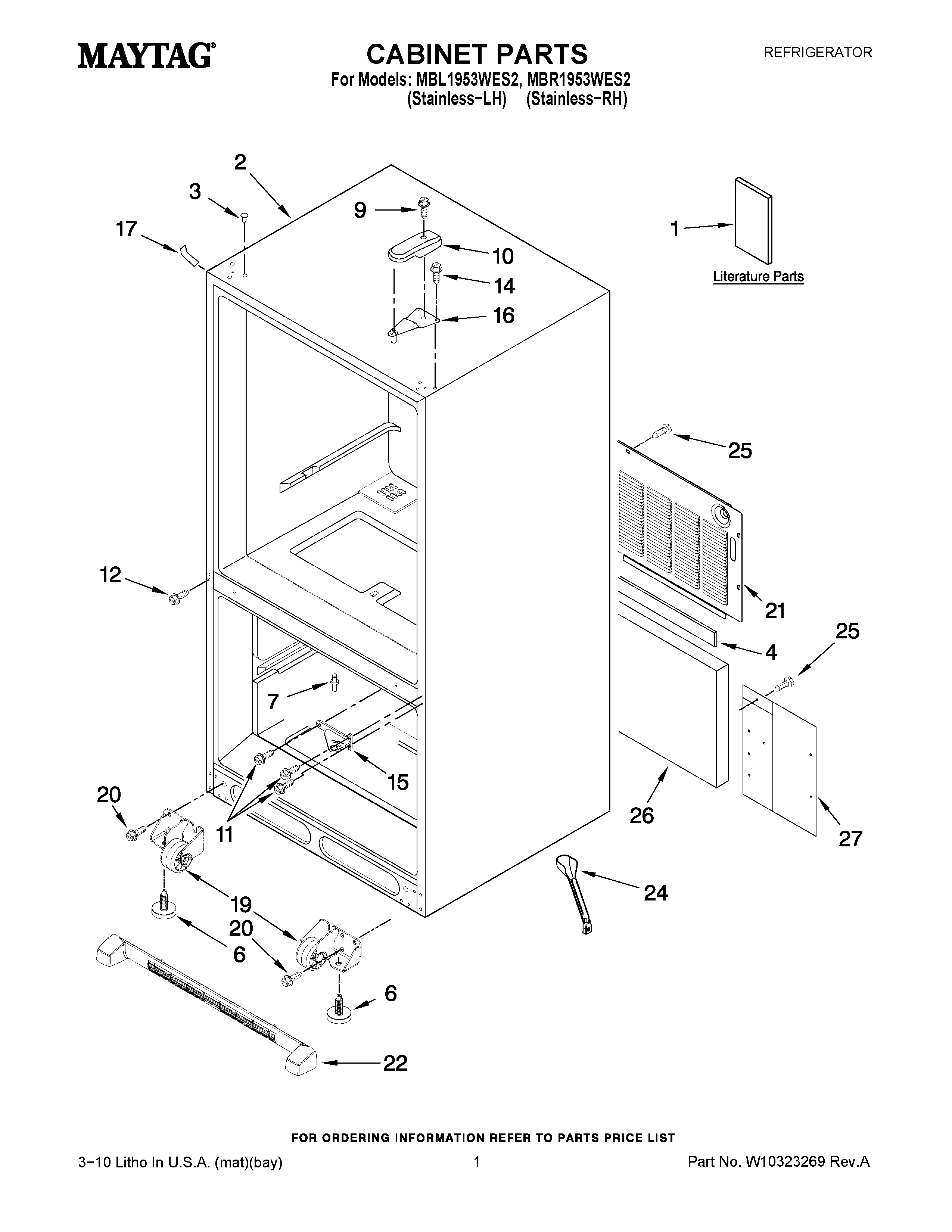

MBL1953WES2 01 – CABINET PARTS

MBL1953WES2 01 – CABINET PARTS

Written by

in

MBL1953WES2 01 – CABINET PARTS

Products

PositionProduct
1MAY W10245040
1OWNERS MANUAL
1MAY W10308611
2LINER (NOT A SERVICEABLE PART)
3MAY M0310731
4MAY B5759655
6Foot Brake (2)
7PIN, CENTER HINGE (REAR)
9MAY 12992602
10COVER, HINGE(BLACK)
11MAY 12990101
12Screw (8)
14SCREW (6)
15MAY 12607104ED
16MAY 12566606ED
17COVER, CORNER (BLACK)
19ROLLER ASSY.(REAR)
20Screw (8)
21MAY W10210978
22Grille Assembly (Includes Clips) (Black)
24MAY W10210987
25SCREW (10)
26Insulation, Sound
27MAY W10217701
