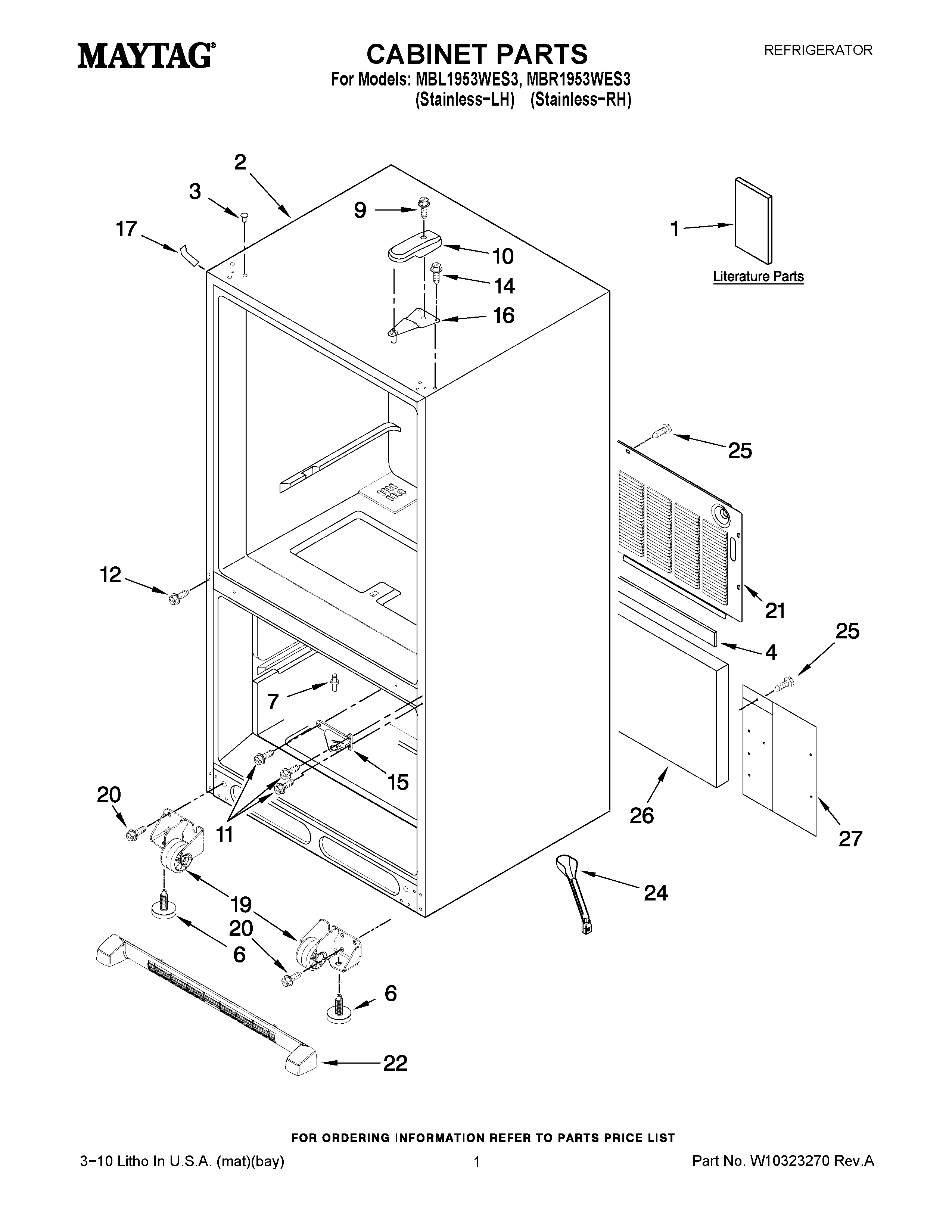

MBL1953WES3 01 – CABINET PARTS

Products

Position	Product
1	MAY W10245040
1	OWNERS MANUAL
1	MAY W10308611
2	LINER (NOT A SERVICEABLE PART)
3	MAY M0310731
4	MAY B5759655
6	Foot Brake (2)
7	PIN, CENTER HINGE (REAR)
9	MAY 12992602
10	COVER, HINGE(BLACK)
11	MAY 12990101
12	Screw (8)
14	SCREW (6)
15	MAY 12607104ED
16	MAY 12566606ED
17	COVER, CORNER (BLACK)
19	ROLLER ASSY.(REAR)
20	Screw (8)
21	MAY W10210978
22	Grille Assembly (Includes Clips) (Black)
24	MAY W10210987
25	SCREW (10)
26	Insulation, Sound
27	MAY W10217701
