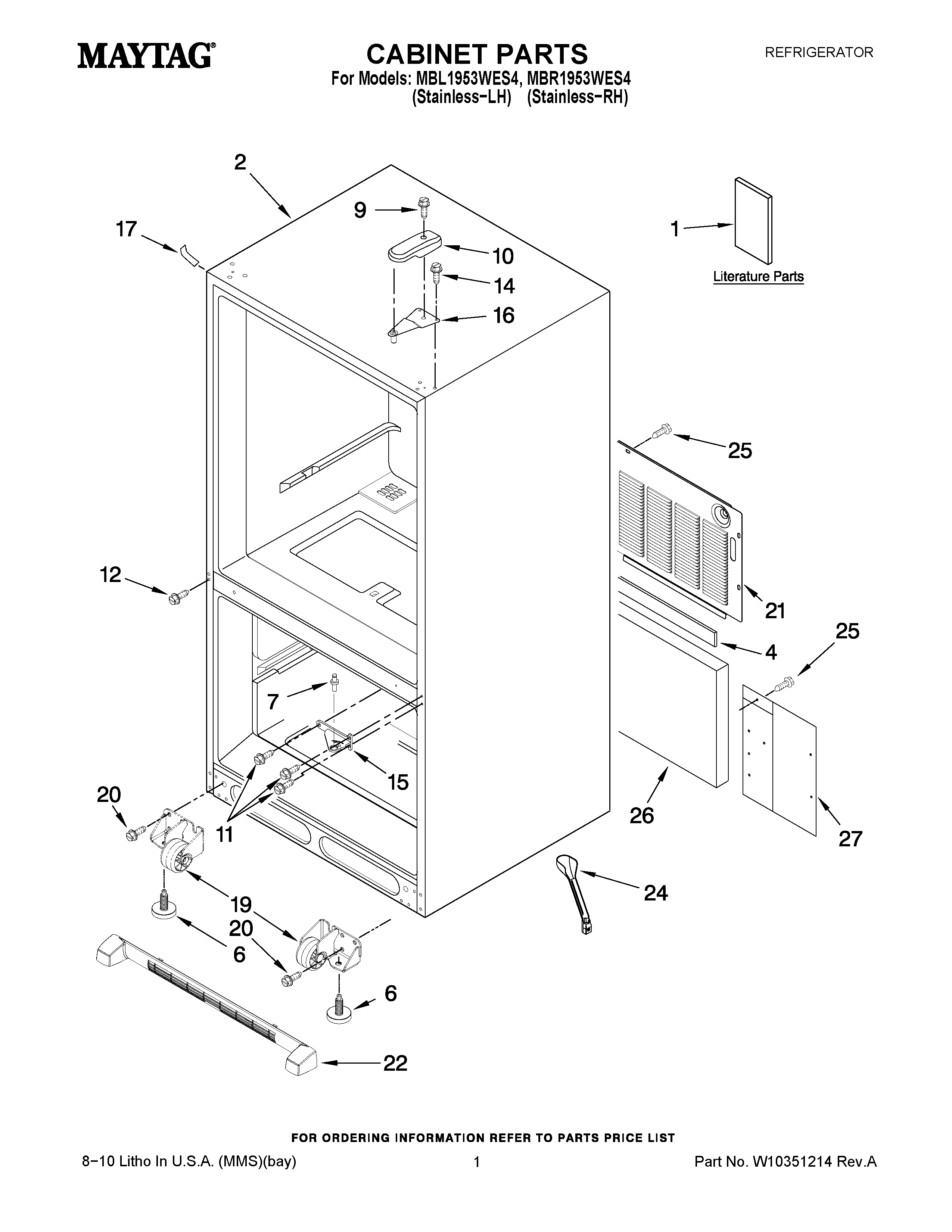

MBL1953WES4 01 – CABINET PARTS

Products

PositionProduct
1MAY W10245040
1OWNERS MANUAL
1MAY W10322959
2LINER (NOT A SERVICEABLE PART)
4MAY B5759655
6Brake, Foot
7PIN, CENTER HINGE (REAR)
9MAY 12992602
10COVER, HINGE(BLACK)
11MAY 12990101
12Screw (8)
14SCREW (6)
15MAY 12607104ED
16MAY 12566606ED
17COVER, CORNER (BLACK)
19ROLLER ASSY. (FRONT) (LEFT)
19ROLLER ASSY. (FRONT) (RIGHT)
20Screw (8)
21MAY W10210978
22Grille Assembly (Black)
24MAY W10210987
25SCREW (10)
26Insulation, Sound
27MAY W10217701
