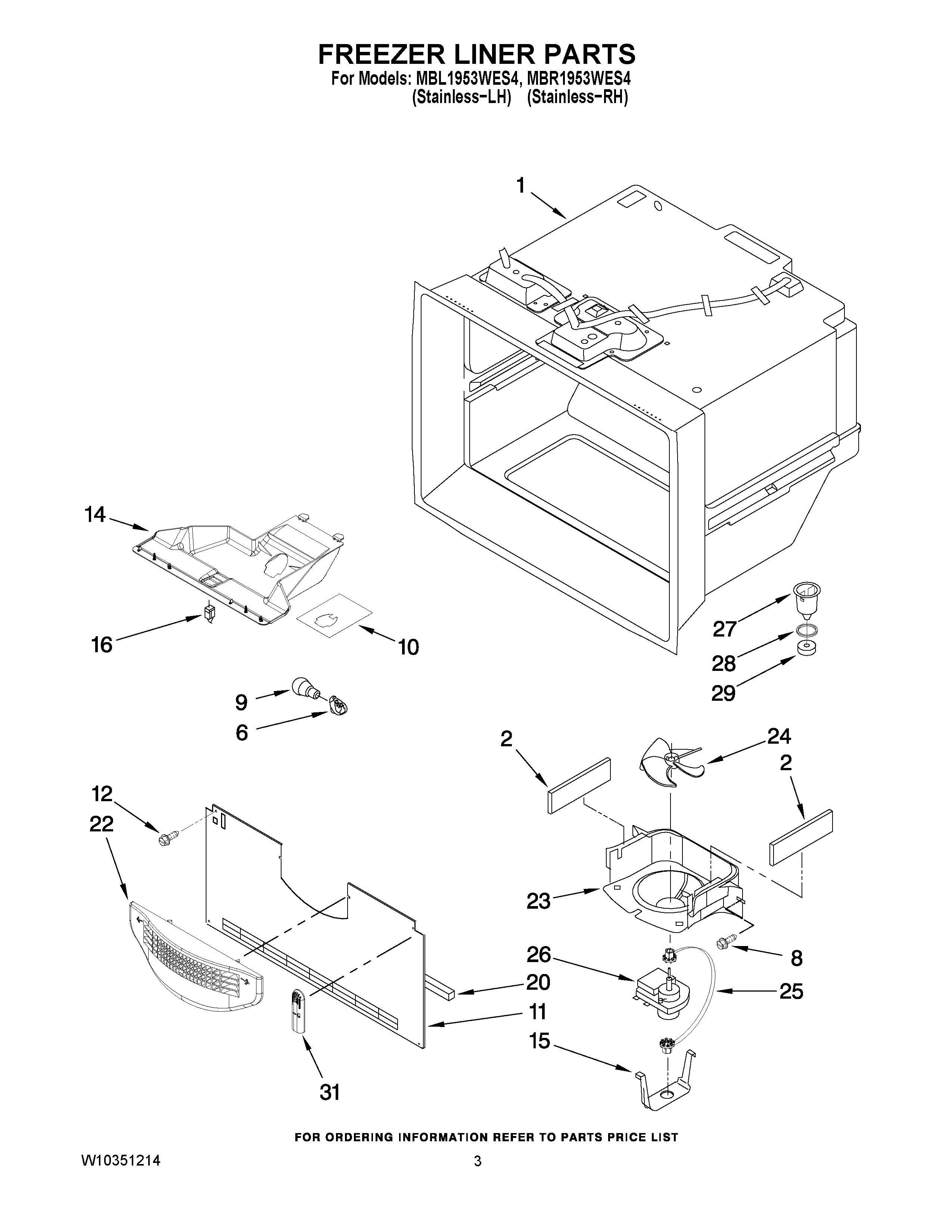

MBL1953WES4 02 – FREEZER LINER PARTS

MBL1953WES4 02 – FREEZER LINER PARTS

Written by

in

MBL1953WES4 02 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
6	Socket, Light
8	Screw (8)
9	BULB, LIGHT (2)
10	FOIL-FZ LIGHT
11	MAY W10308414
12	MAY 12990101
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
20	Gasket, Bottom
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY W10128551
27	MAY D7753903
28	MAY M0500703
29	Gasket
31	MAY 12815301
