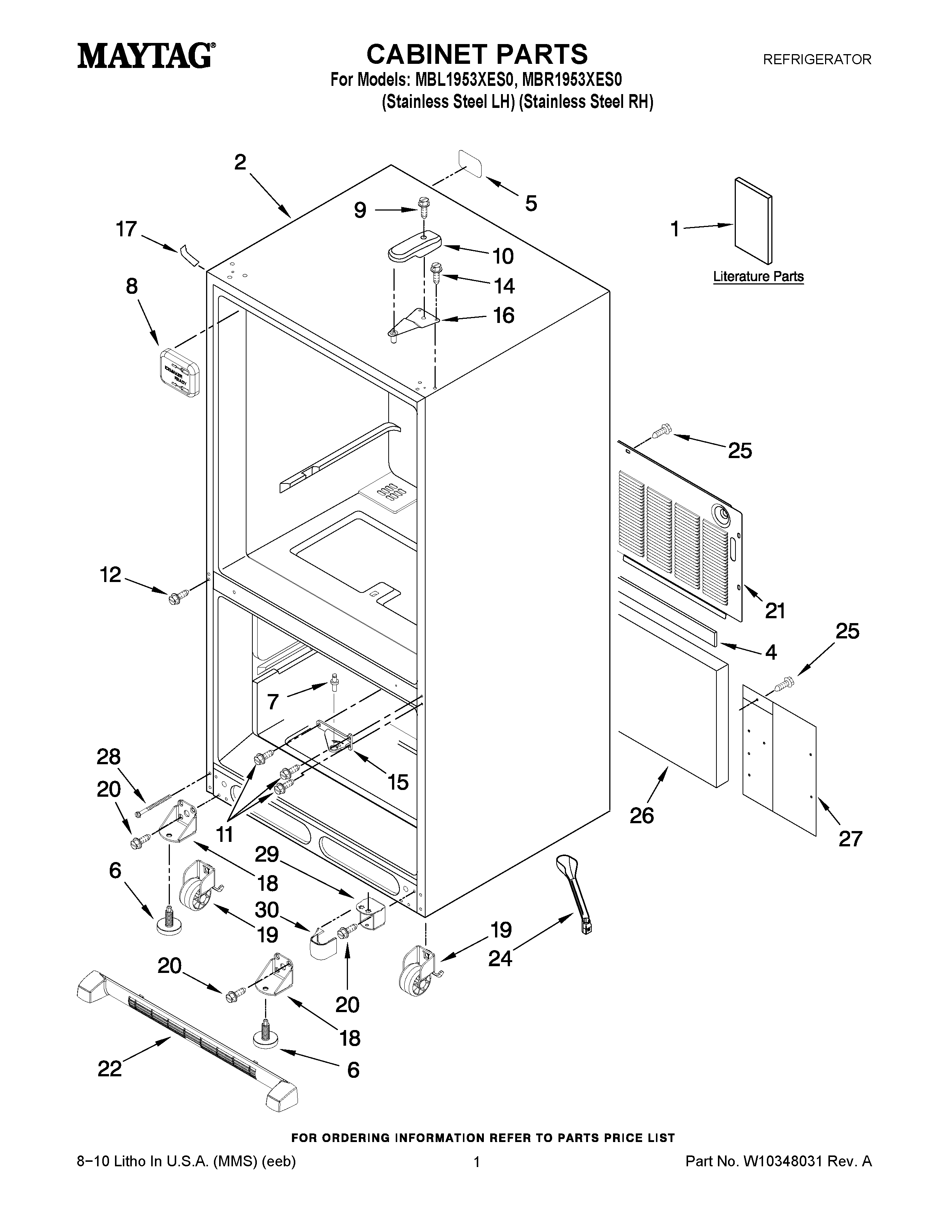

MBL1953XES0 01 – CABINET PARTS

MBL1953XES0 01 – CABINET PARTS

Written by

in

MBL1953XES0 01 – CABINET PARTS

Products

PositionProduct
1MAY W10325961
1OWNERS MANUAL
1MAY W10308611
2LINER (NOT A SERVICEABLE PART)
4MAY B5759655
5LABEL-FILL TUBE
6Foot Brake (2)
7PIN, CENTER HINGE (REAR)
8COVER-FILL TUBE
9MAY 12992602
10COVER, HINGE(BLACK)
11MAY 12990101
12Screw (8)
14SCREW (6)
15MAY 12607104ED
16MAY 12566606ED
17COVER, CORNER (BLACK)
18BRACKET, FOOT
19ROLLER ASSY.(REAR)
20Screw (8)
21MAY W10210978
22Grille Assembly (Includes Clips) (Black)
24MAY W10210987
25SCREW (10)
26Insulation, Sound
27MAY W10217701
28Bolt, Adjusting (Rear)
29MAY 12465005ED
30Cover, Lw Hinge (Black)
