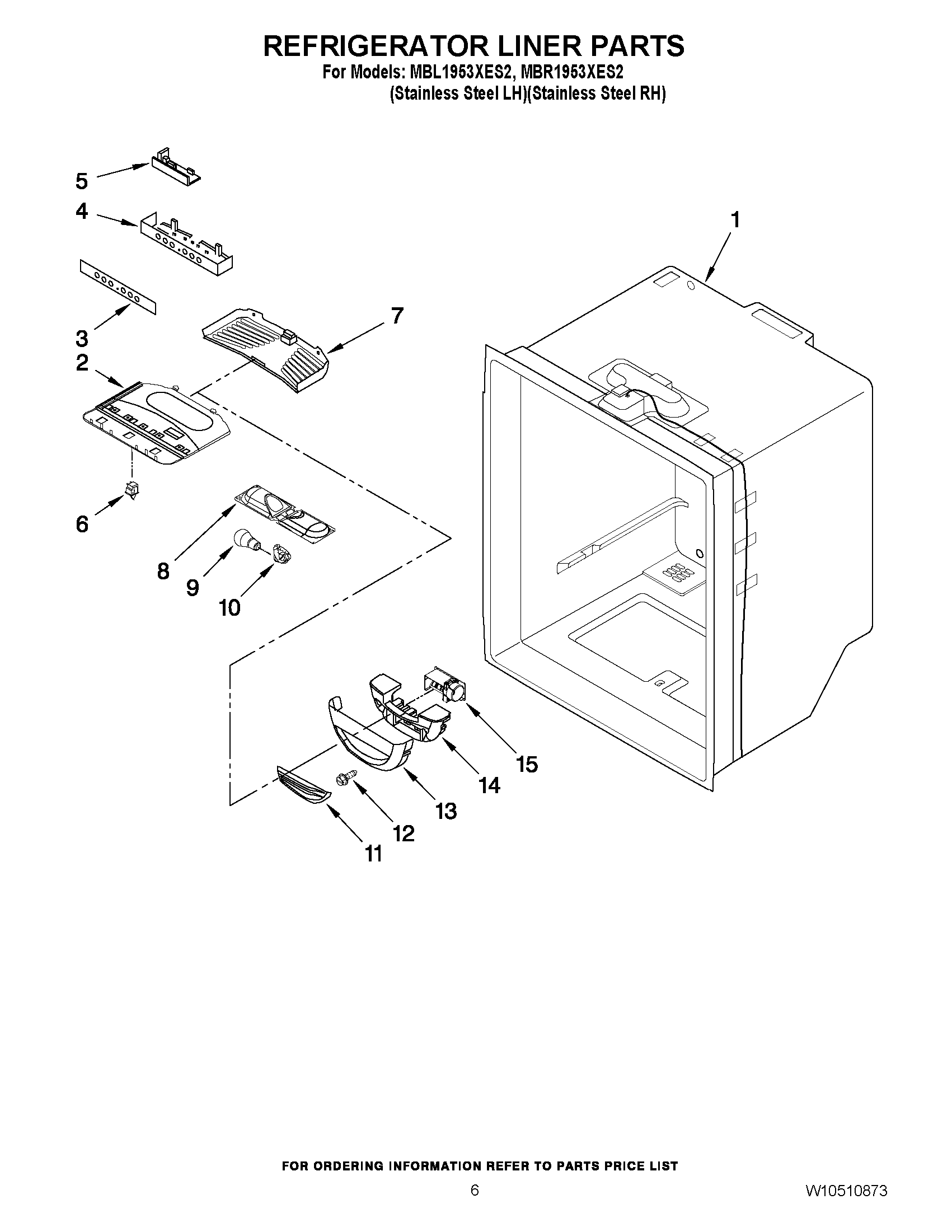

MBL1953XES2 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIMAY 12868701
1LINER (NOT A SERVICEABLE PART)
2MAY W10464757
3MAY W10464769
4Housing, Electronic Control
5MAY 12784415V
6Switch, Light (2)
7MAY 12806501
8MAY W10443023
9BULB, LIGHT
10Socket, Light
11MAY 12806801
12MAY 12990604
13MAY 12806701
14INSULATION
15DAMPER, CONTROL
