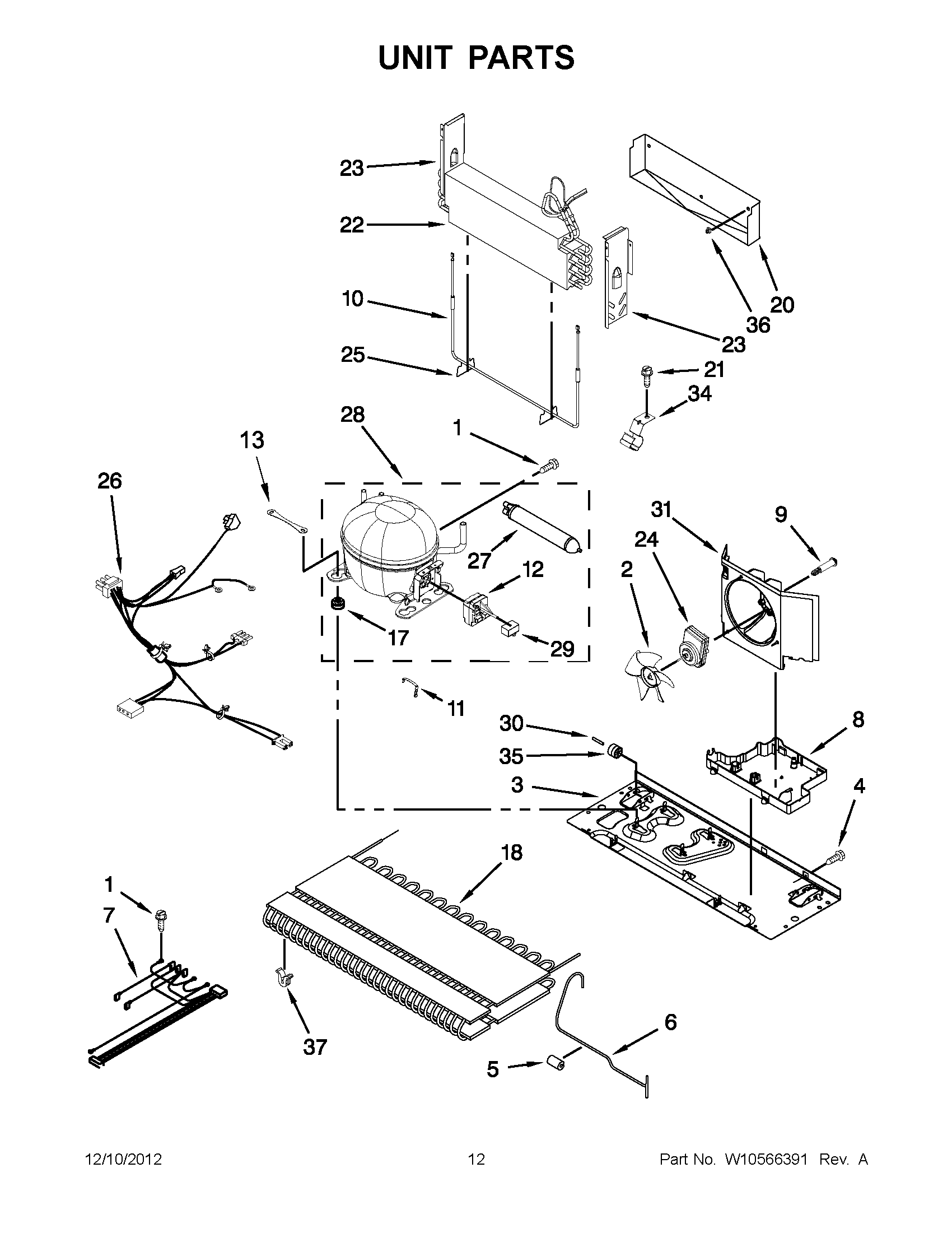

MBL1953XES3 06 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
1	MAY 12992301
2	MAY 12825803
3	MAY W10480107
4	SCREW (10)
5	GROMMET, CONDENSER
6	MAY W10294014
7	HARNESS, EVAPORATOR (INCLUDES HEATER)
8	MAY W10296784
9	MAY W10216919
10	HEATER, EVAPORATOR
11	MAY W10174384
12	START PROTECT, COMBO (START DEVICE, COMBINATION (START RELAY AND OVERLOAD) FOR SERVICE COMPRESSOR ONLY)
13	MAY W10236396
17	Grommet (4)
18	MAY W10346423
20	MAY W10292801
21	MAY 12992101
22	MAY W10317012
23	DAM (LEFT SIDE)
23	Dam (Right Side)
24	MAY W10239053
25	W11673433 Whirlpool Clip
26	HARNESS, UNIT (INCLUDES POWER CORD)
27	Drier
28	MAY W10164016
29	MAY W10350564
30	Axle, Roller (2)
31	SHROUD
34	MAY W10281329
35	Roller (2)
36	MAY 10623002
37	GROMMET, COND (4)
