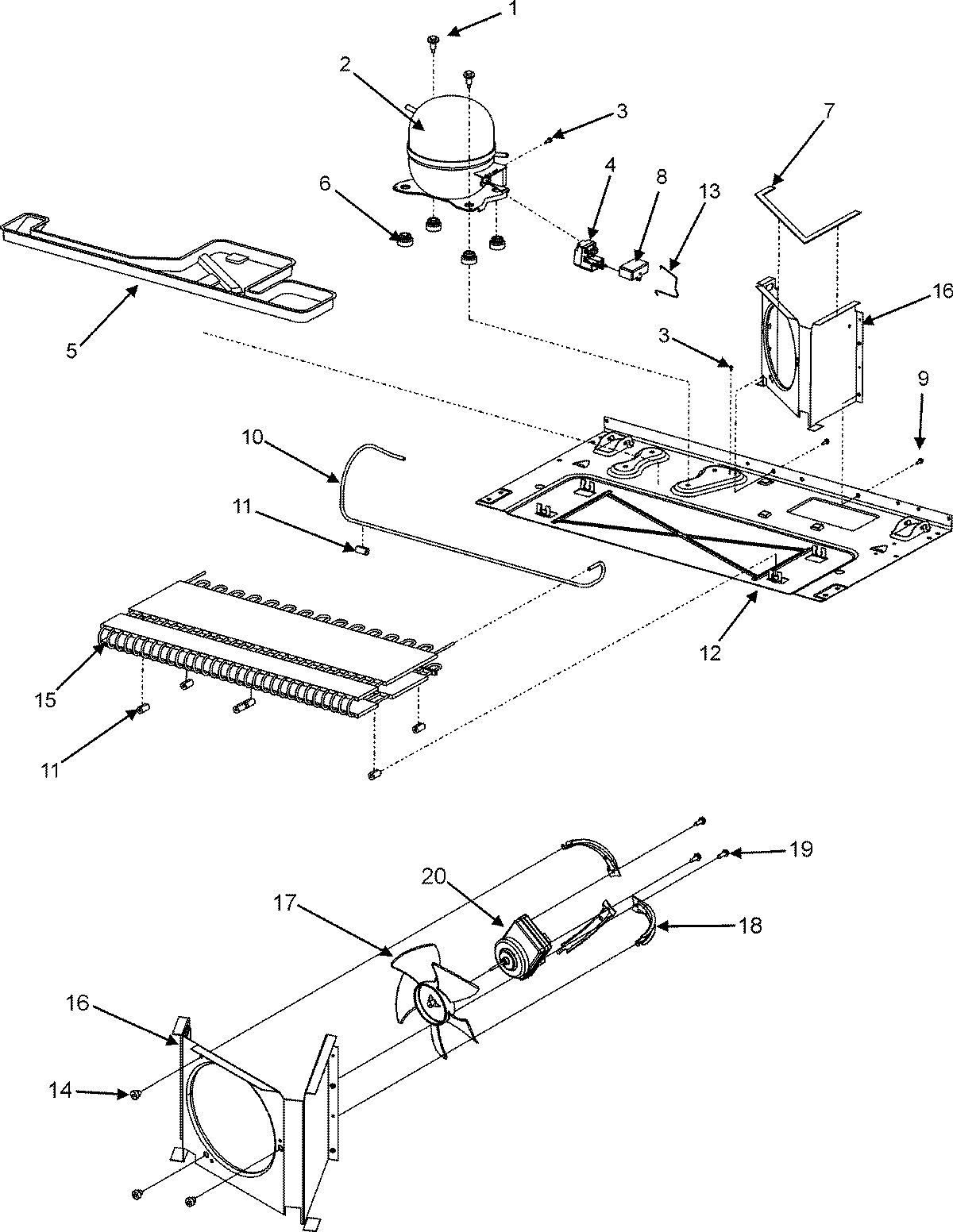

MBL1956HES 02 – COMPRESSOR

MBL1956HES 02 – COMPRESSOR

Written by

in

MBL1956HES 02 – COMPRESSOR

Products

PositionProduct
1MAY 67003790
2W10160407 Whirlpool Refrigerator Compressor
3MAY M0231604
4W10613606 Whirlpool Refrigerator Start Device Relay Overload
5MAY 67001091
667003493 Whirlpool Refrigerator Compressor Grommet
7WP854334 Whirlpool Air Conditioner Sealing Strip
8CAPACITOR
9MAY M0238616
10MAY 67004203
1167005680 Whirlpool Refrigerator Condenser Grommet
12MAY 67003789
13MAY 12576801
14GROMMET, BRACKET
1567006133 Whirlpool Refrigerator 30" Condenser BM
16SHROUD, CONDENSER FAN
17W10156818 Whirlpool Refrigerator Fan Blade
18MAY 67004953
19WP67004954 Whirlpool Refrigerator Screw
20MAY 67004432
