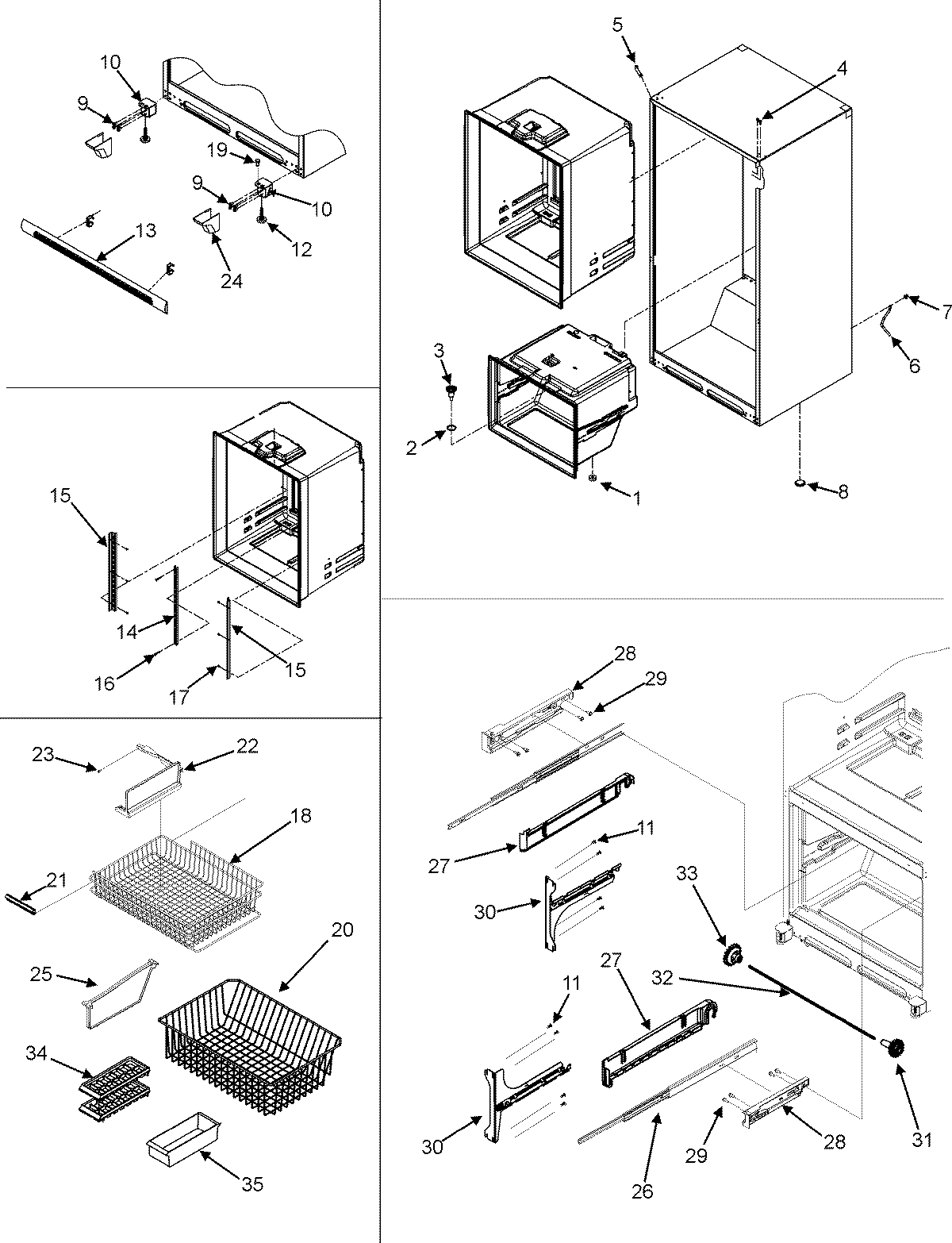

MBL1956HES 07 – INTERIOR CABINET & FREEZER SHELVES

MBL1956HES 07 – INTERIOR CABINET & FREEZER SHELVES

Written by

in

MBL1956HES 07 – INTERIOR CABINET & FREEZER SHELVES

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4MAY A4539607
567003485 Whirlpool Refrigerator Corner Cover (Black)
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
9MAY 67003858
10HINGE, BOTTOM E-CT (BLK)
11MAY M0211018
12W11177593 Whirlpool Leveling Feet
13Clip, Grille
13MAY 67002305
1467001073 Whirlpool Refrigerator Center Ladder
15MAY 67001302
16MAY M0231425
17SCREW, SM
18MAY 67004985
19PLUG, BUTTON
20W10503182 Whirlpool Refrigerator Freezer Basket
21HANDLE, BASKET/SHELF
22Divider, Upper Basket
23MAY 67001310
24Cover, Lw Hinge (Black)
25MAY 67004064
26MAY 67004862
27WPW10280613 Whirlpool Refrigerator Bracket
27WPW10280608 Whirlpool Refrigerator Bracket
28ADAPTER, SIDE (RT)
28ADAPTER, SIDE (LT)
29SCREW, SM
30BRACKET, DRAWER SLIDE (RT)
30BRACKET, DRAWER SLIDE (LT)
31GEAR (LT)
32W10802329 Whirlpool Refrigerator Shaft
33GEAR (RT)
34MAY 67001747
35MAY 10423131
