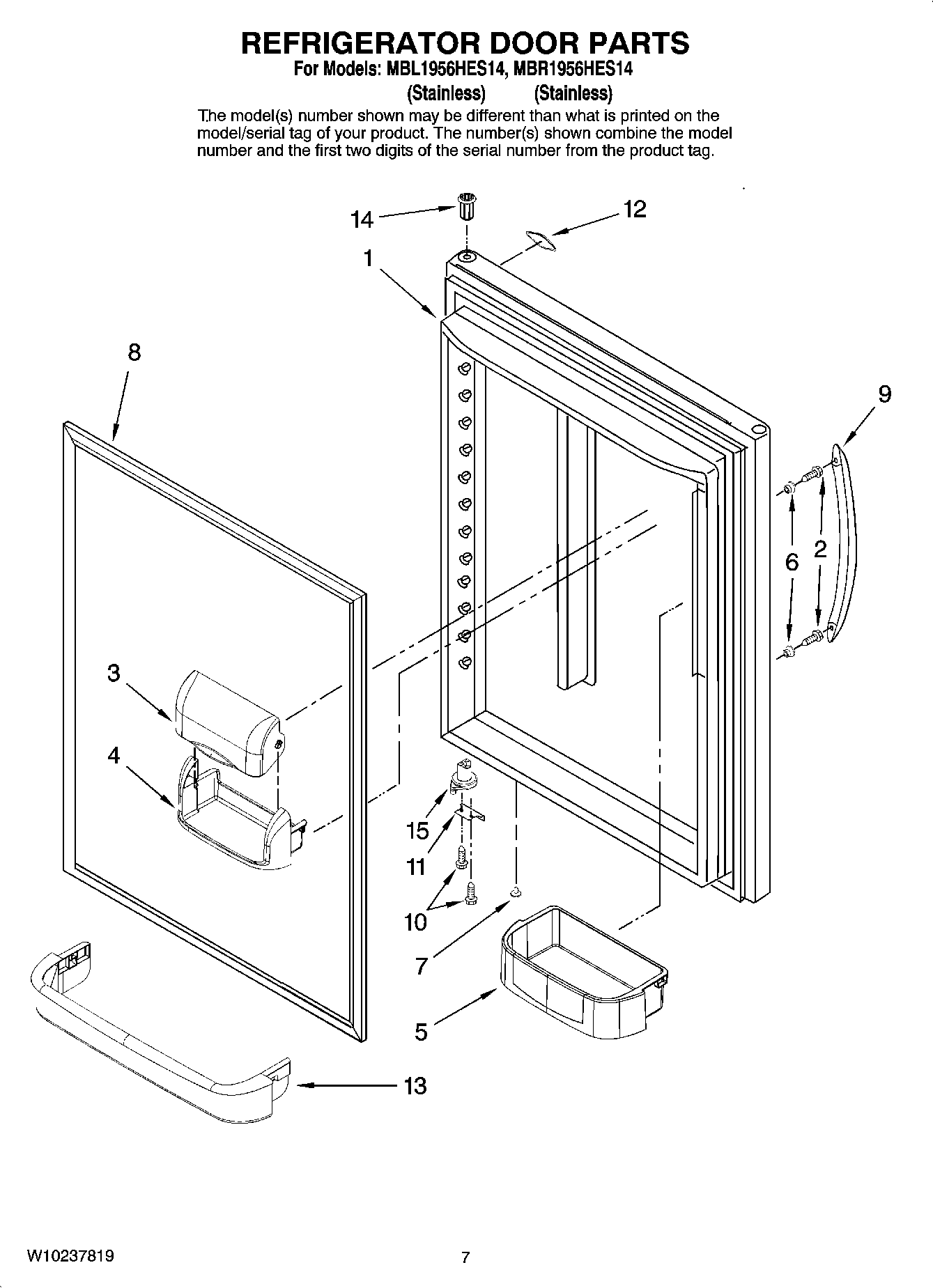

MBL1956HES14 05 – REFRIGERATOR DOOR PARTS

MBL1956HES14 05 – REFRIGERATOR DOOR PARTS

Written by

in

MBL1956HES14 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (w/ Insulation) Stainless Steel (Right)
1MAY W10203482
2SCREW
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
567004040 Whirlpool Refrigerator Bucket Door
5MAY 67004041
6WP67006113 Whirlpool Stud Bolt
767004838 Whirlpool Refrigerator Button Vent Plug
8Gasket, Door Magnetic (Black)
9Handle, Door (Stainless)
10WP98165 Whirlpool Screw
11W11708403 Whirlpool Door Stop
12Nameplate
13RETAINER, DOOR
1467004978 Whirlpool Refrigerator Black Door Bushing
15WP67003639 Whirlpool Refrigerator Closer
