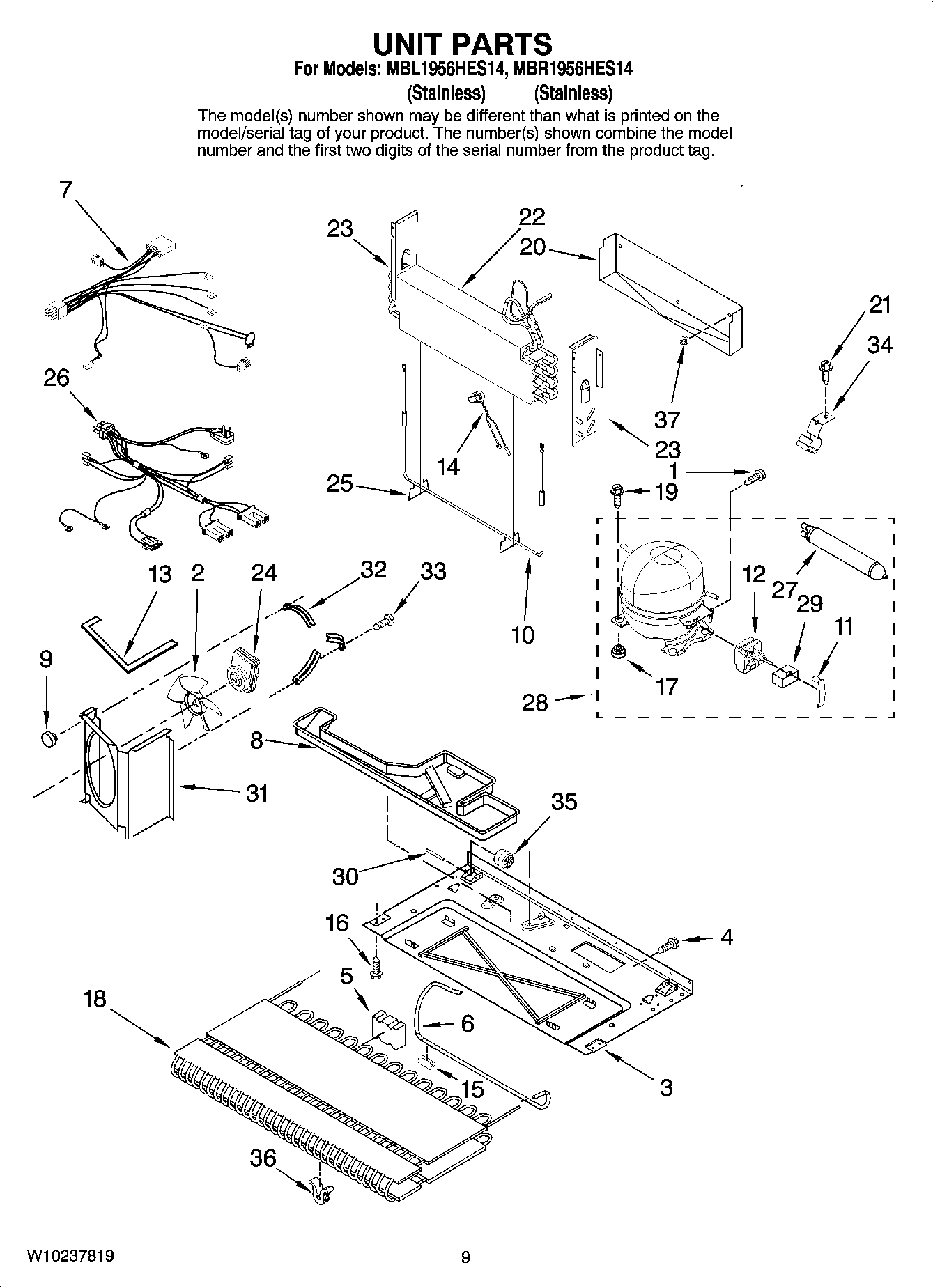

MBL1956HES14 06 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (3/8``)
NI	VALVE, ACCESS (1/4``)
NI	MAY 876764
NI	Valve, Access (1/2``)
NI	Valve, Access (5/8``)
NI	Valve, Access (5/16``)
NI	Valve, Access (3/4``)
1	MAY 67006433
2	MAY W10156818
3	MAY 12601104
4	Screw (10)
5	MAY 67005491
6	MAY W10183705
7	MAY W10119856
8	Drain Pan
9	GROMMET, BRACKET
10	WP67002135 Whirlpool Refrigerator Defrost Heater
11	MAY W10131991
12	Overload/Relay (Capacitor Incl.)
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	Thermostat
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	Screw (4)
17	MAY W10169124
18	MAY W10135028
19	MAY 67006432
20	MAY 67001133
21	SCREW
22	Evaporator
23	MAY 67001084
23	MAY 67001083
24	MAY 67004432
25	W11673433 Whirlpool Clip
26	Harness, Unit Includes Cord
27	Drier
28	COMPRESSOR KIT CONTAINS ITEMS 12, 17, 27, & 29)
29	Capacitor
30	67006434 Whirlpool Axle Pin
31	Shroud, Condenser
32	MAY 67004953
33	WP67004954 Whirlpool Refrigerator Screw
34	MAY 10547003
35	WP67005149 Whirlpool Roller
36	GROMMET, COND (4)
37	MAY 10623002
