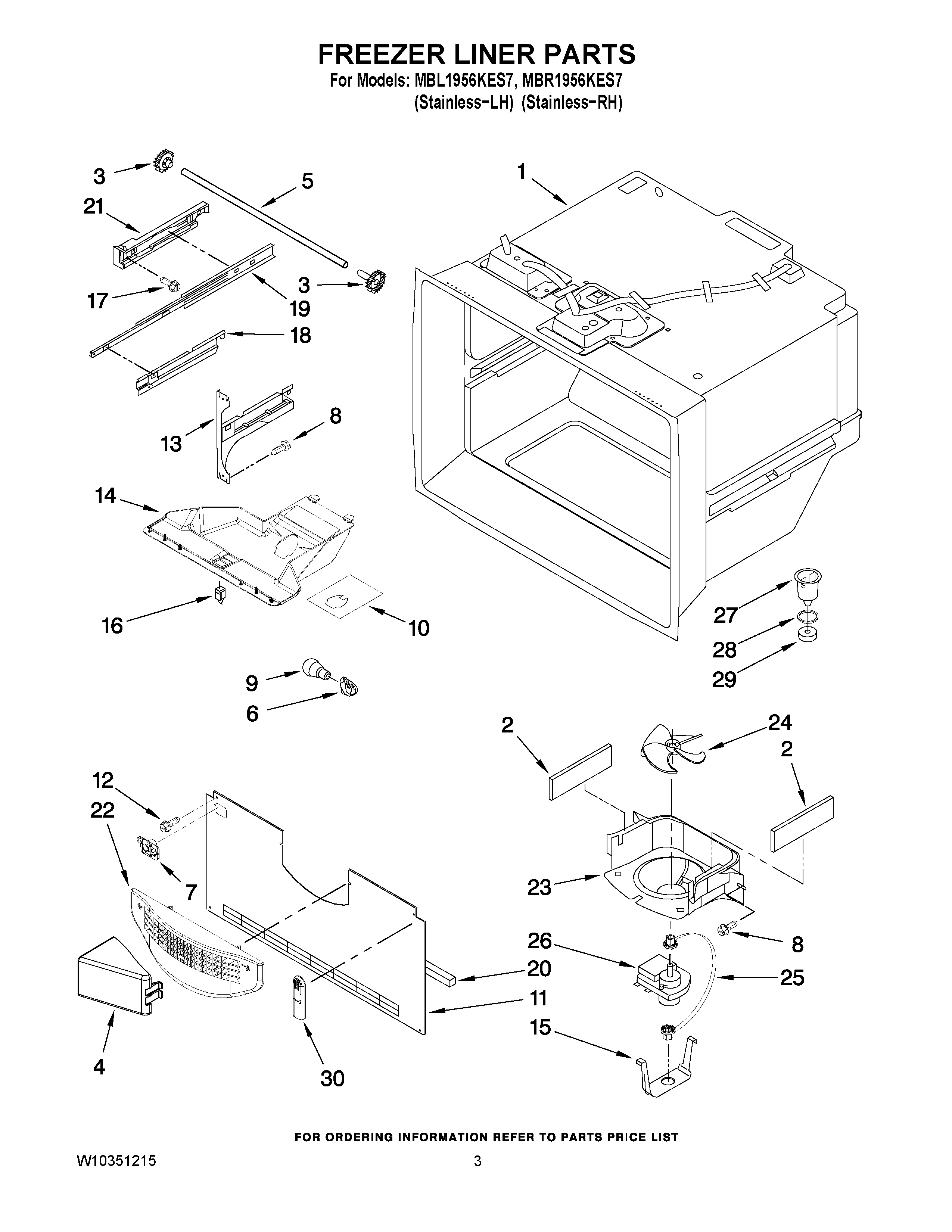

MBL1956KES7 02 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	MAY W10157765
5	SHAFT-RACK
6	Socket, Light
7	MAY 12932103
8	Screw (8)
9	BULB, LIGHT (2)
10	FOIL-FZ LIGHT
11	MAY W10308414
12	MAY 12990101
13	BRACKET, DOOR (LEFT)
13	BRACKET, DOOR (RIGHT)
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	Screw (6)
18	CRADLE-BASKET (RIGHT HAND)
18	CRADLE-BASKET (LEFT HAND)
19	MAY W10120018
20	Gasket, Bottom
21	CRADLE-BASKET (LEFT)
21	CRADLE-BASKET (RIGHT)
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY W10128551
27	MAY D7753903
28	MAY M0500703
29	Gasket
30	MAY 12815301
