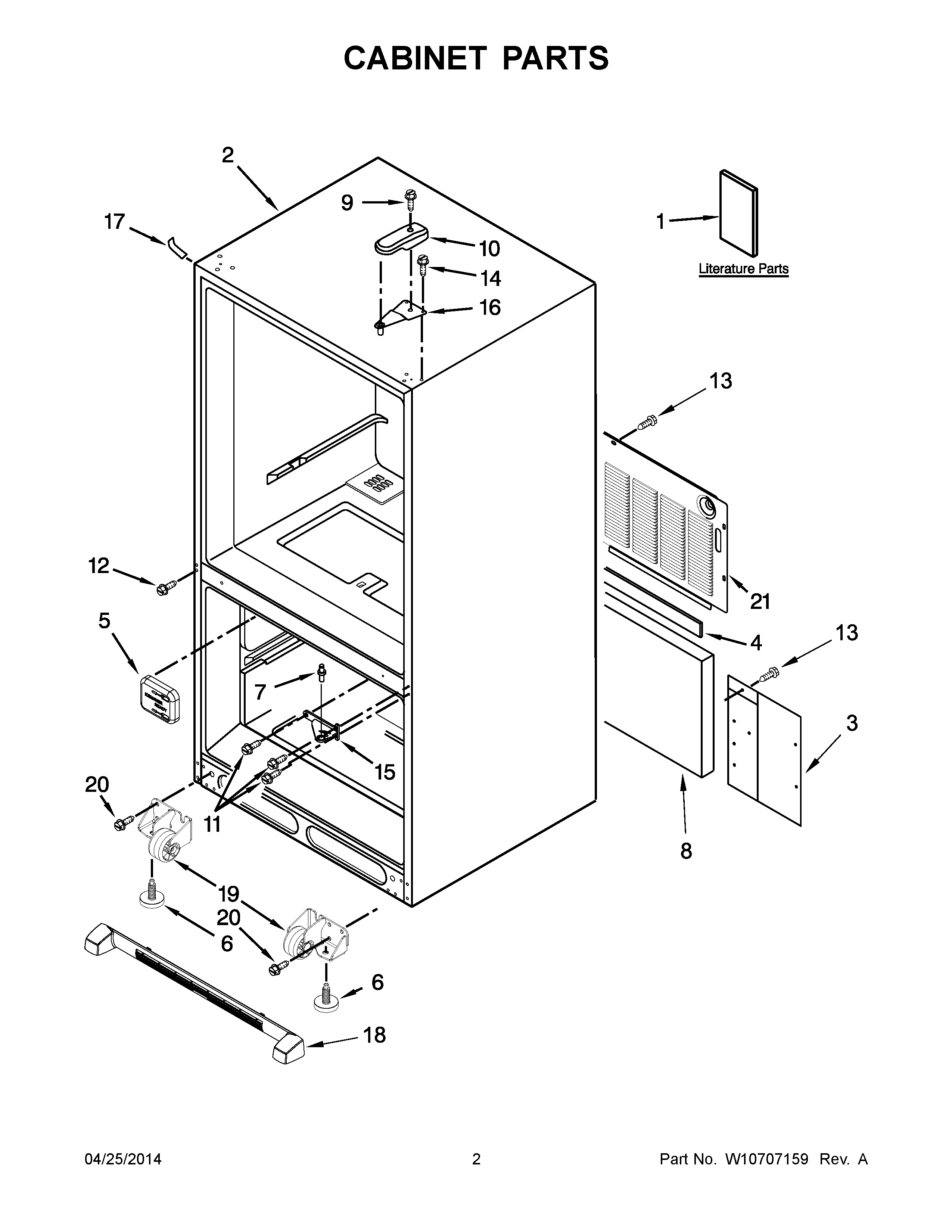

MBL1957DEM00 02 – CABINET PARTS

MBL1957DEM00 02 – CABINET PARTS

Written by

in

MBL1957DEM00 02 – CABINET PARTS

Products

PositionProduct
1MAY W10688368
1MAY W10621529
1MAY W10517966
2LINER (NOT A SERVICEABLE PART)
3MAY W10217701
4MAY B5759655
5COVER-FILL TUBE
6Brake, Foot
7MAY 10351006
8Insulation, Sound
9MAY 12992602
10MAY 12477601AP
11MAY 12990101
12Screw (8)
13SCREW (10)
14SCREW (6)
15MAY 12607103AP
16MAY 12566606ED
17COVER, CORNER (GREY)
18ASSEMBLY, GRILLE (GREY)
19ROLLER ASSEMBLY (LEFT HAND)
19ROLLER ASSEMBLY (RIGHT HAND)
20Screw (8)
21MAY W10210978
