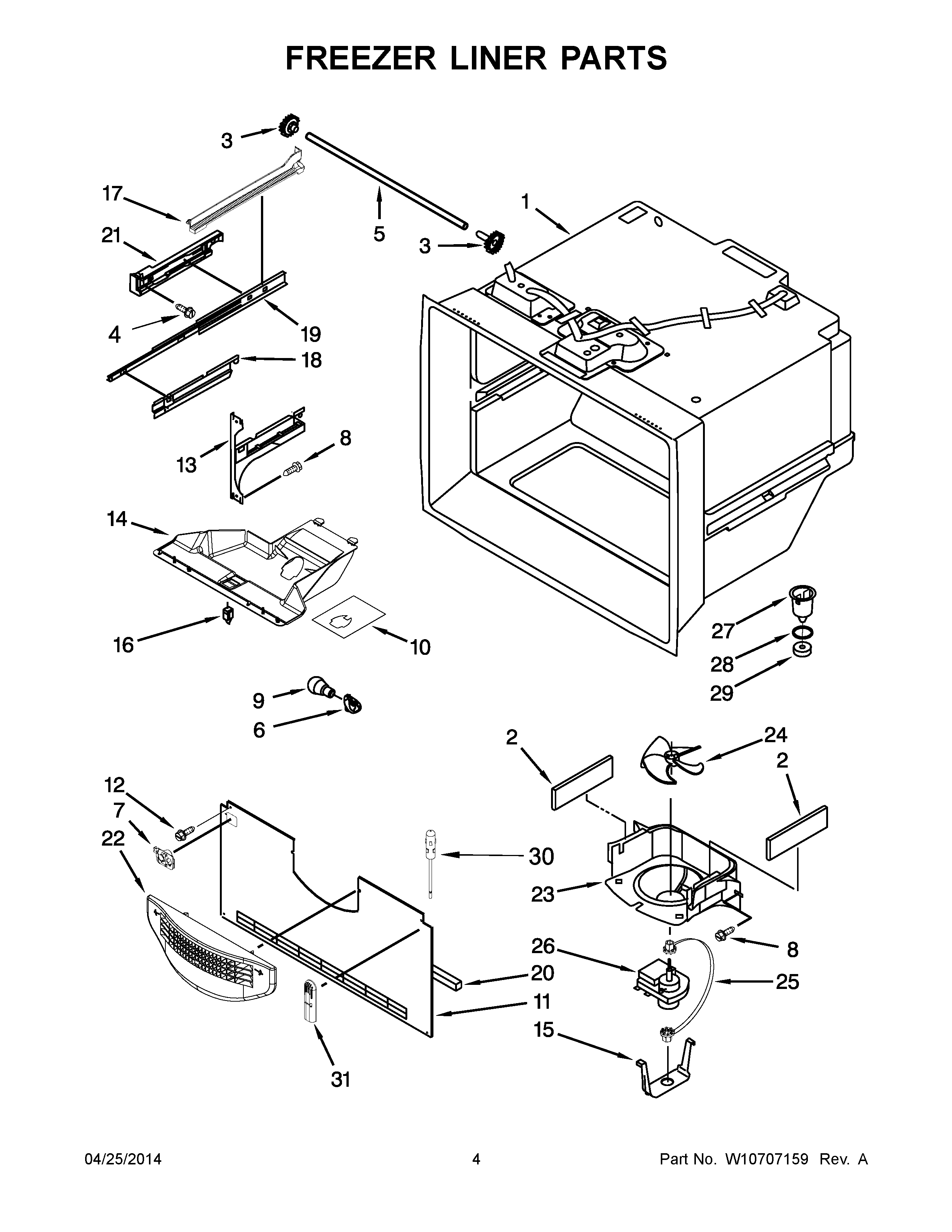

MBL1957DEM00 03 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
312002497 Whirlpool Refrigerator Drawer Gear Kit
4Screw (6)
5SHAFT-RACK
6W11447232 Whirlpool Refrigerator Socket
7MAY 12932103
8Screw (8)
9MAY W10565137
10FOIL-FZ LIGHT
11MAY W10308414
12MAY 12990101
13MAY W10330991
13MAY W10330993
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466105
17MAY W10516602
17MAY W10516603
18CRADLE-BASKET (LEFT HAND)
18CRADLE-BASKET (RIGHT HAND)
19MAY W10120018
20MAY A3189394
21ADAPTER, SLIDE (RIGHT HAND)
21ADAPTER, SLIDE (LEFT HAND)
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10121318
26MAY W10128551
27MAY W10651961
28MAY M0500703
29Gasket
30MAY 12791409SP
31MAY 12815301
