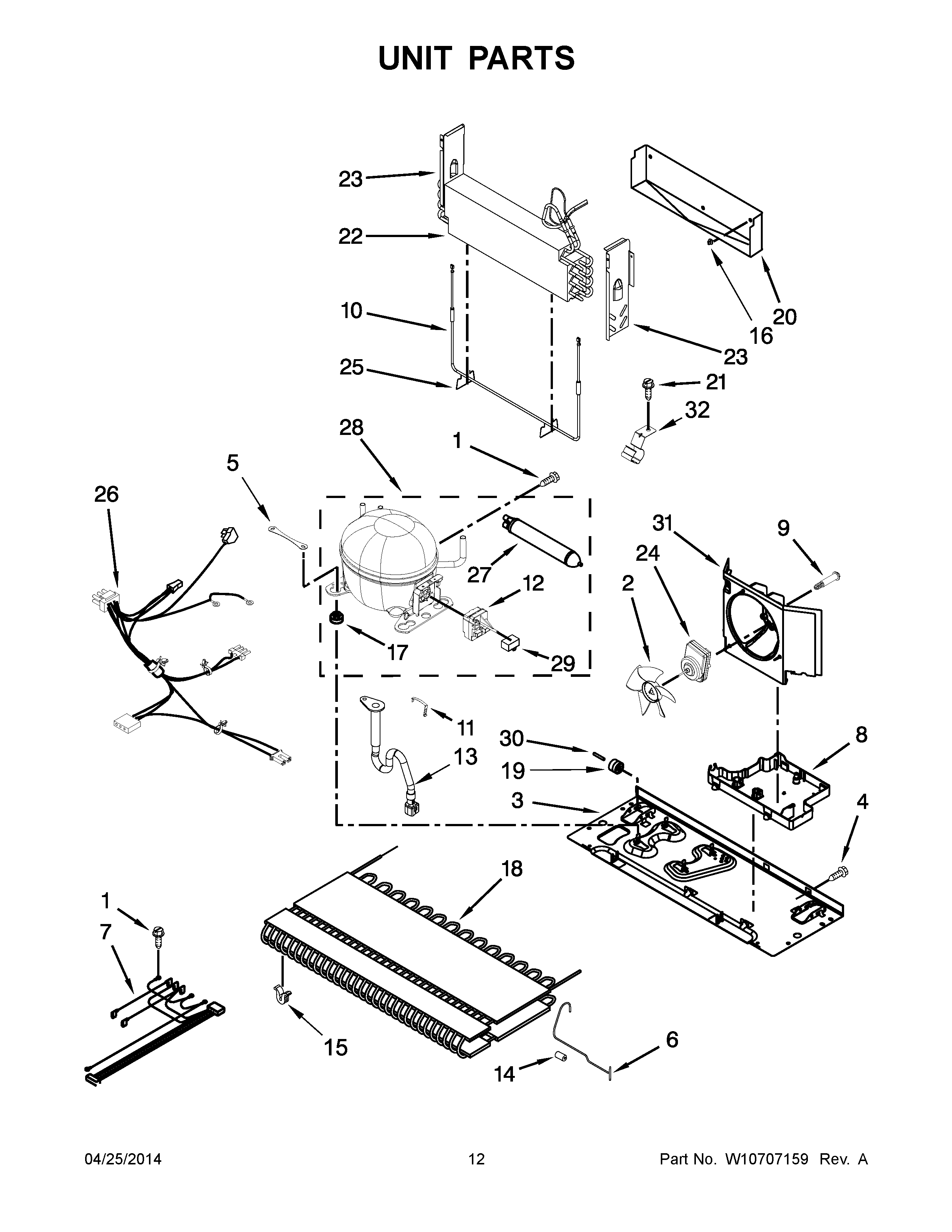

MBL1957DEM00 07 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	LINER (NOT A SERVICEABLE PART)
1	MAY 12992301
2	MAY 12825803
3	MAY W10480107
4	SCREW (10)
5	MAY W10236396
6	MAY W10294014
7	HARNESS, EVAPORATOR (INCLUDES HEATER)
8	MAY W10296784
9	MAY W10216919
10	HEATER, EVAPORATOR
11	MAY W10216075
11	START DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION)
13	MAY W10622098
14	GROMMET, CONDENSER
15	GROMMET, COND (4)
16	MAY 10623002
17	Grommet (4)
18	MAY W10346423
19	Roller (2)
20	MAY W10292801
21	MAY 12992101
22	MAY W10317012
23	Dam (Right Side)
23	DAM (LEFT SIDE)
24	MAY W10239053
25	W11673433 Whirlpool Clip
26	MAY W10630320
27	Drier
28	COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
29	MAY W10350564
30	Axle, Roller (2)
31	SHROUD
32	MAY W10281329
