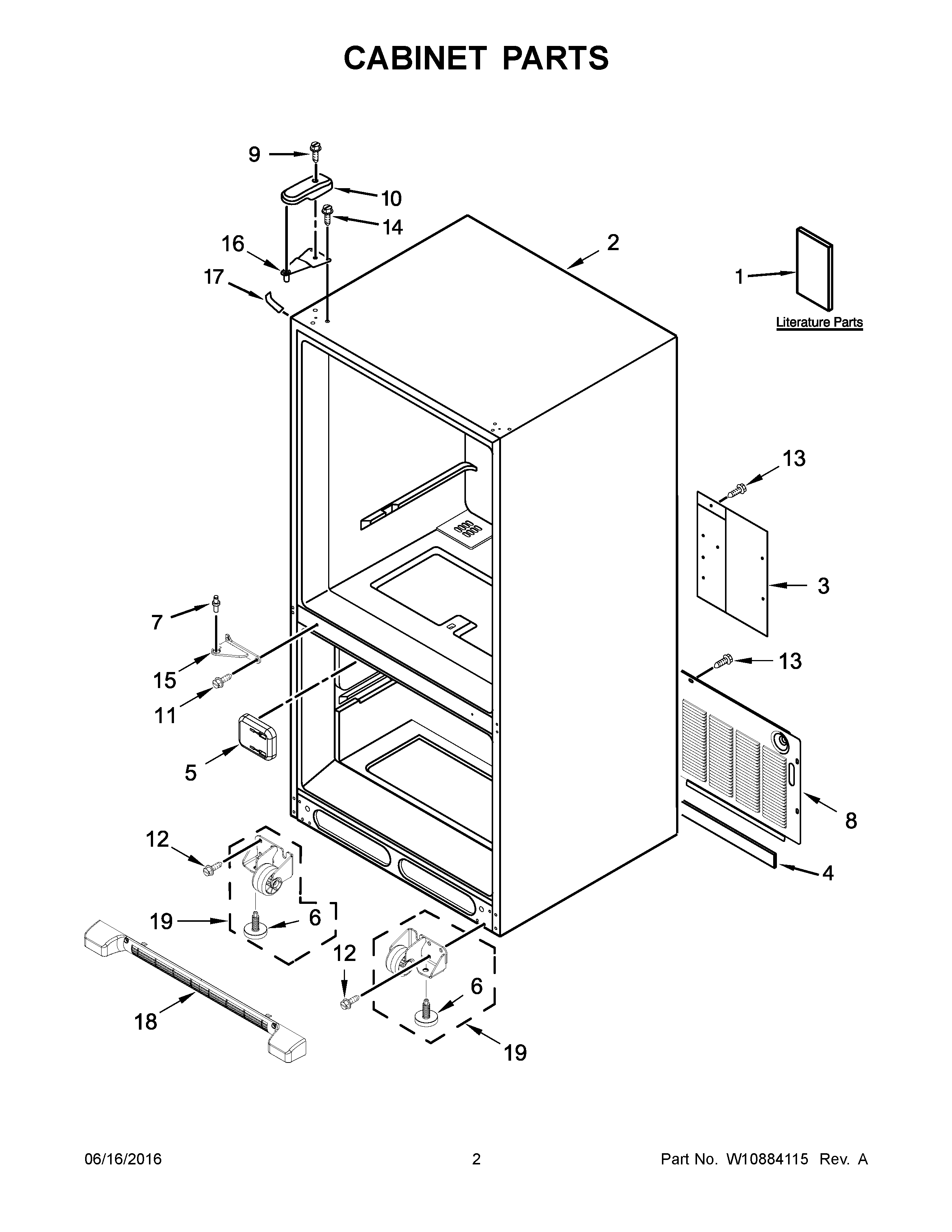

MBL1957FEZ00 02 – CABINET PARTS

MBL1957FEZ00 02 – CABINET PARTS

Written by

in

MBL1957FEZ00 02 – CABINET PARTS

Products

Position	Product
1A	MAY W10853960
1	MAY W10621529
1B	MAY W10517966
2	LINER (NOT A SERVICEABLE PART)
3	MAY W10217701
4	MAY B5759655
5	COVER-FILL TUBE
6	Brake, Foot
7	MAY 10351006
8	MAY W10210978
9	MAY 12992602
10	MAY 12477601AP
11	MAY 12990101
12	MAY W10709365
13	SCREW (10)
14	SCREW (6)
15	MAY 12607103AP
16	MAY 12566606ED
17	COVER, CORNER (GREY)
18	ASSEMBLY, GRILLE (GREY)
19	ROLLER ASSEMBLY (LEFT HAND)
19A	ROLLER ASSEMBLY (RIGHT HAND)
