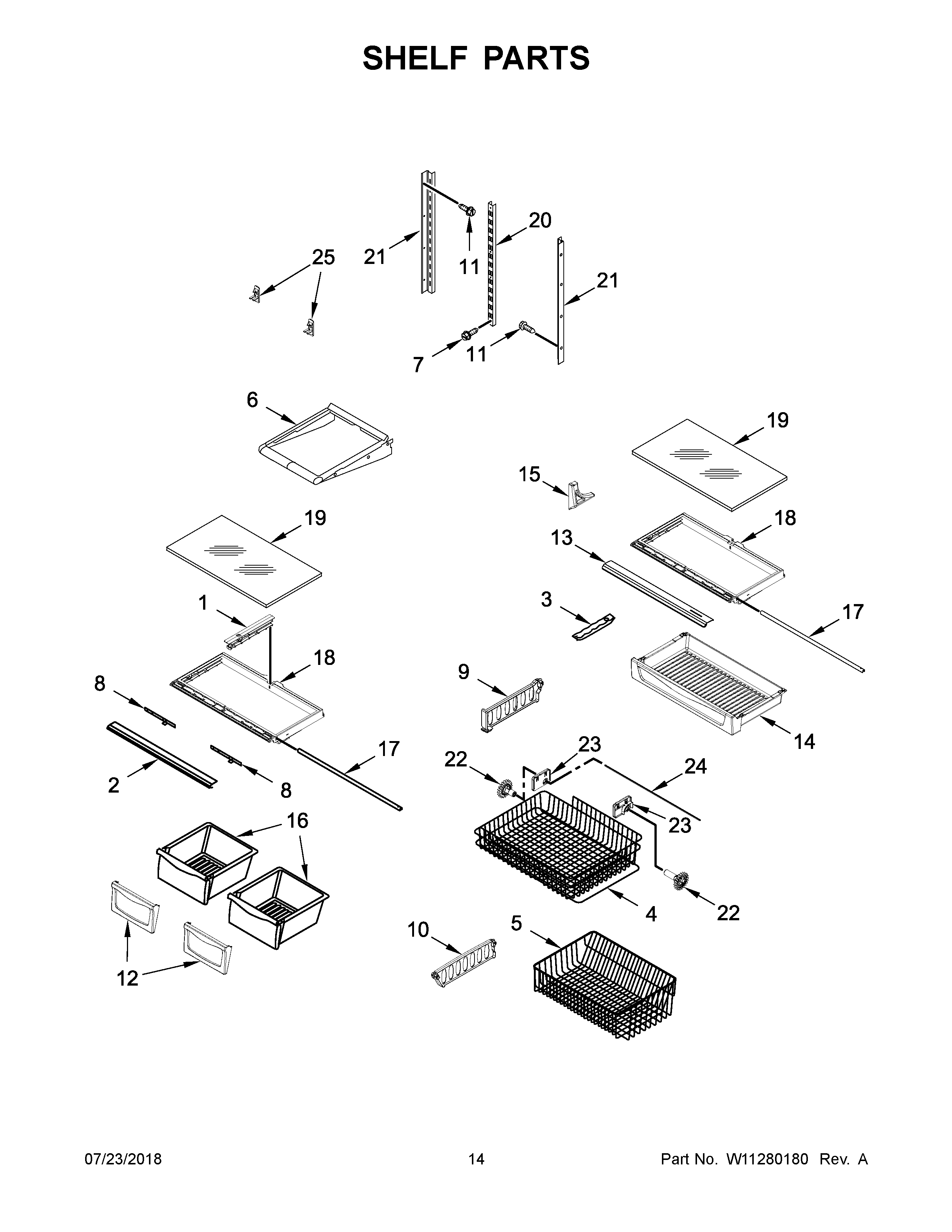

MBL1957FEZ02 08 – SHELF PARTS

MBL1957FEZ02 08 – SHELF PARTS

Written by

in

MBL1957FEZ02 08 – SHELF PARTS

Products

Position	Product
1	MAY W10671238
2	MAY W10231481
3	TRACK, PANTRY
4	BASKET, FREEZER (UPPER)
5	BASKET, FREEZER (LOWER)
6	MAY 12463608
7	MAY W10215666
8	MAY 12530805SP
9	Divider, Upper Basket
10	Divider, Lower Basket
11	MAY 12990513
12	FRONT, PAN
13	MAY W10656984
14	MAY W10328331
15	SUPPORT-LEFT
15A	SUPPORT-RIGHT
16	MAY 12531305
17	MAY 12227302WD
18	MAY W10671240
19	MAY 12204823N
20	MAY W10273463
21	MAY W10251970
22A	MAY W10474715
22	MAY W10474716
23	MOUNT-GEAR (LEFT HAND)
23A	MOUNT-GEAR (RIGHT HAND)
24	MAY W10802340
25	HOOK-LADDER (2)
