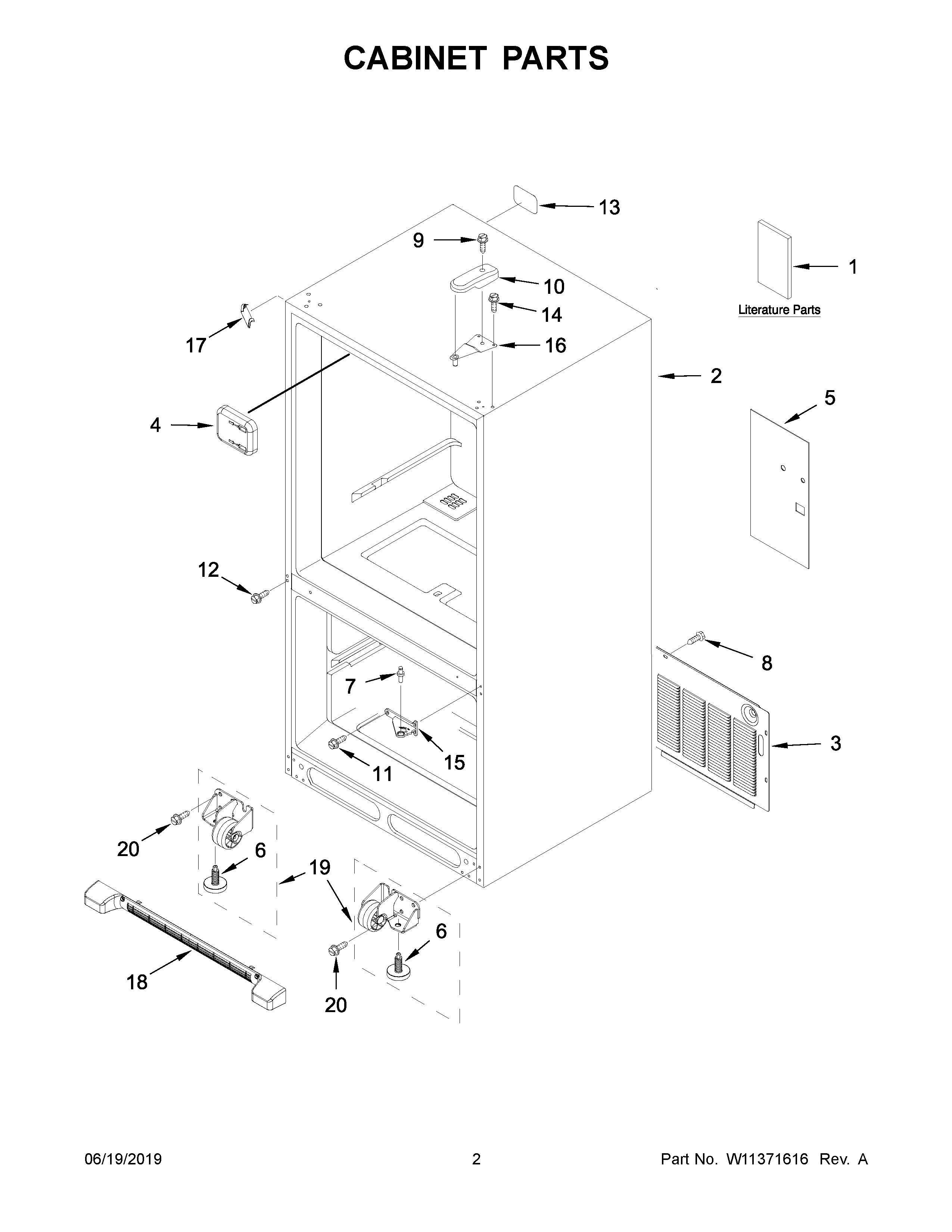

MBL1957FEZ04 02 – CABINET PARTS

MBL1957FEZ04 02 – CABINET PARTS

Written by

in

MBL1957FEZ04 02 – CABINET PARTS

Products

PositionProduct
1AMAY W11306936
1MAY W11296634
1BMAY W11297588
2LINER (NOT A SERVICEABLE PART)
3MAY W10210978
4COVER, FILL TUBE
5MAY W10217701
6Brake, Foot
7MAY 10351006
8SCREW (10)
9MAY 12992602
10MAY 12477601AP
11MAY W10673840
12Screw (8)
13LABEL-FILL TUBE
14SCREW (6)
15MAY 12607103AP
16MAY 12566606ED
17COVER, CORNER (GREY)
18ASSEMBLY, GRILLE (GREY)
19ROLLER ASSEMBLY (LEFT HAND)
19AROLLER ASSEMBLY (RIGHT HAND)
20MAY W10709365
