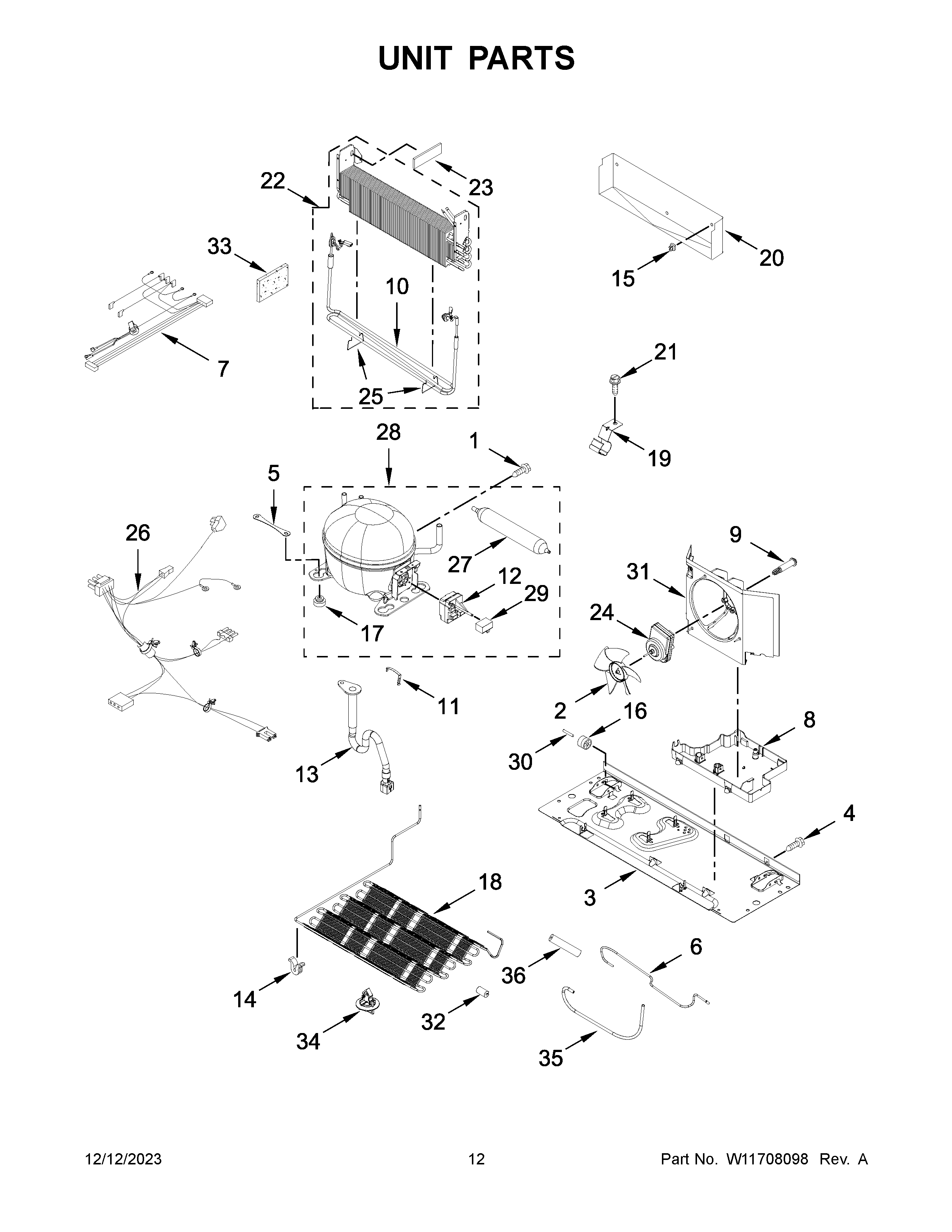

MBL1957FEZ09 07 – UNIT PARTS

MBL1957FEZ09 07 – UNIT PARTS

Written by

in

MBL1957FEZ09 07 – UNIT PARTS

Products

Position	Product
NI	WPL ARI6590DF9444F608EB3490B5DB880E5D08
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W10480107 Whirlpool Refrigerator Plate
4	67006425 Whirlpool Refrigerator Screw
5	W10236396 Whirlpool Refrigerator Strap
6	TUBE, DISCHARGE
7	W11524653 Whirlpool Refrigerator Wire Harness
8	WPW10655367 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	W11533746 Whirlpool Heater
11	WPL W11379613
12	W11524472 Whirlpool Refrigerator Start Device
13	W10619951 Whirlpool Drain Tube with Grommet
14	WPW10137529 Whirlpool Refrigerator Grommet
15	CLIP, EVAP (2)
16	WP67005149 Whirlpool Roller
17	WPW10169124 Whirlpool Refrigerator Grommet
18B	W11504432 Whirlpool Refrigerator Coupler
18	CONDENSER (ALSO ORDER THE FOLLOWING LOKRING PARTS)
18A	W11506623 Whirlpool Refrigerator Coupler
19	W10281329 Whirlpool Clamp
20	W11337775 Whirlpool Drip Tray
21	Screw
22A	W11504423 Whirlpool Refrigerator Coupler
22	W11598430 Whirlpool Evaporator Repair
22B	W11504415 Whirlpool Refrigerator Coupler
23	W11451451 Whirlpool Refrigerator Gasket
24	W11613295 Whirlpool Condenser Motor
25	W11380964 Whirlpool Clip Assembly
26	W11741475 Whirlpool Wire Harness
27	W11109499 Whirlpool Refrigerator Tube
27B	W11504447 Whirlpool Refrigerator Coupler
27A	W11504445 Whirlpool Refrigerator Coupler
28B	W11504431 Whirlpool Microwave Coupler
28	W11547313 Whirlpool Refrigerator Compressor
28C	W11506621 Whirlpool Refrigerator Coupler
28D	W11506635 Whirlpool Refrigerator Valve Coupler
28A	W11504416 Whirlpool Refrigerator Coupler
29	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
30	67006434 Whirlpool Axle Pin
31	W11556315 Whirlpool Shroud
32	W10852725 Whirlpool Refrigerator Grommet
33	W11553819 Whirlpool Refrigerator Insulation
34	W10815863 Whirlpool Clip
35	TUBE
36	SLEEVE
