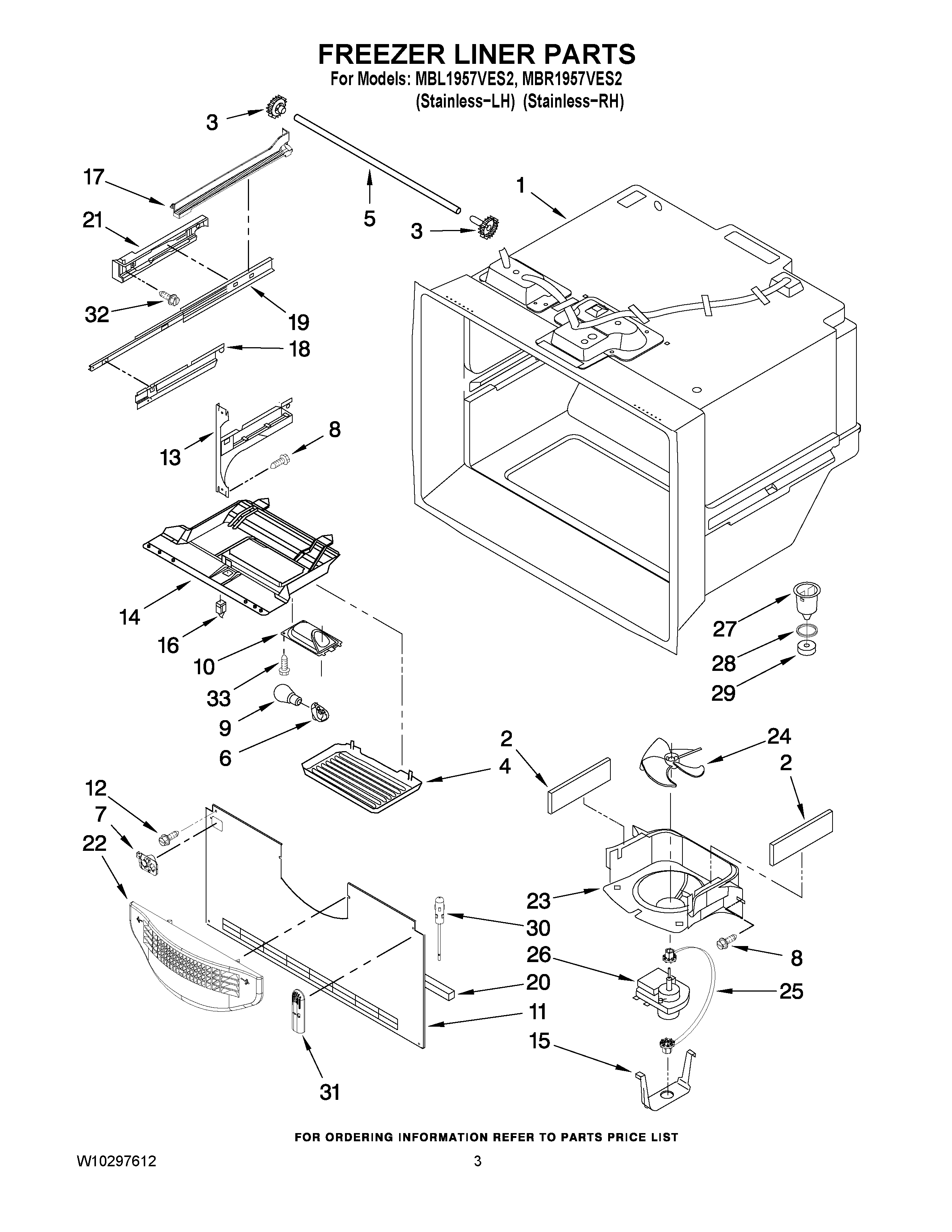

MBL1957VES2 02 – FREEZER LINER PARTS

Products

Position	Product
NI	MAY 13014801
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	MAY 12804901
5	SHAFT-RACK
6	Socket, Light
7	MAY 12932103
8	Screw (8)
9	Bulb, Light (2)
10	MAY 12476401V
11	MAY 12226110
12	MAY 12990101
13	BRACKET, SLIDE (LEFT)
13	BRACKET, SLIDE (RIGHT)
14	MODULE, FZ CONTROL
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	RACK-SIDE (RIGHT)
17	RACK-SIDE (LEFT)
18	CRADLE-BASKET (RIGHT HAND)
18	CRADLE-BASKET (LEFT HAND)
19	MAY W10120018
20	Gasket, Bottom
21	MAY W10261203
21	MAY W10261204
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY W10128551
27	MAY D7753903
28	MAY M0500703
29	Gasket
30	12002355 Whirlpool Refrigerator Thermistor Kit
31	MAY 12815301
32	Screw (6)
33	MAY 12991603V
