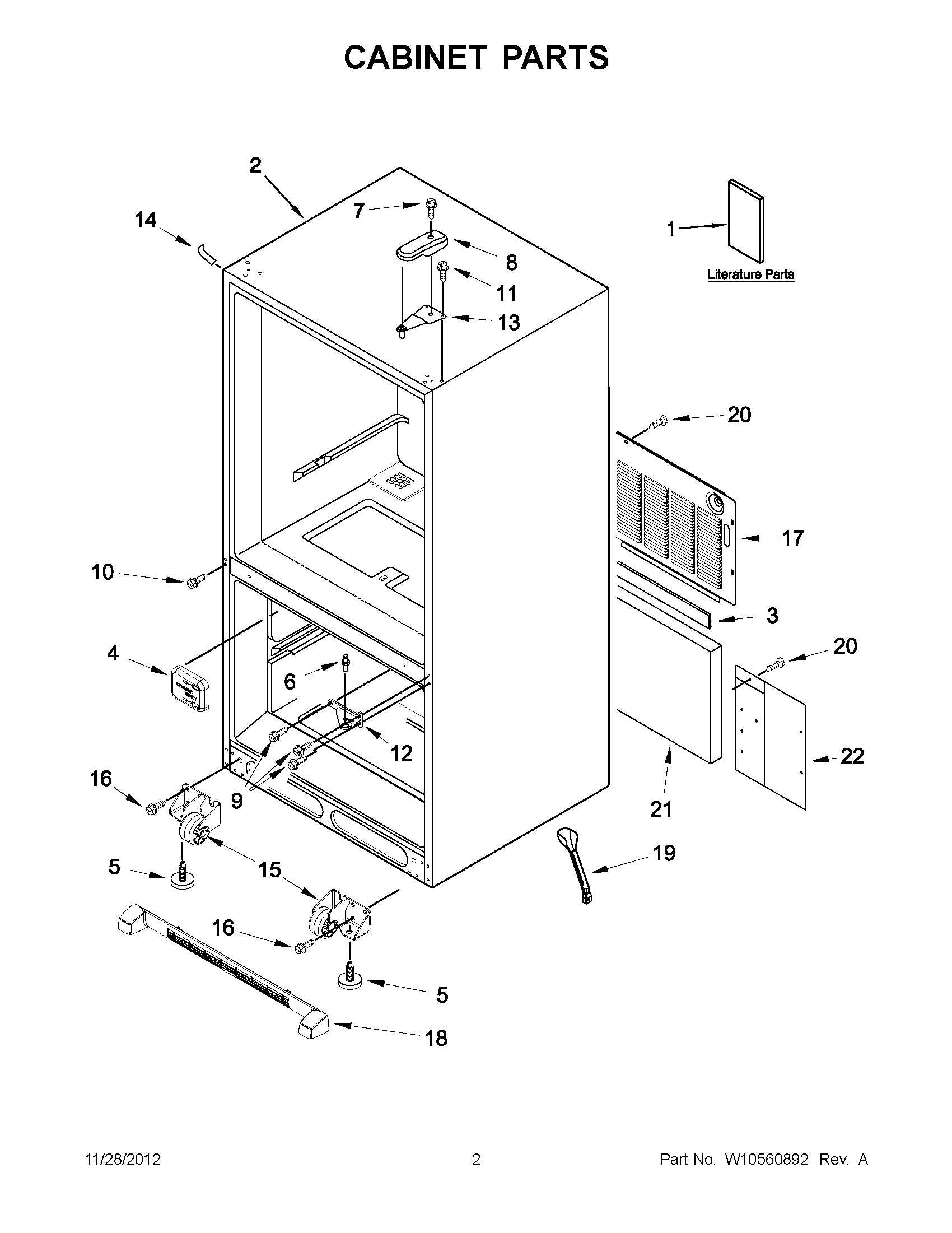

MBL1957WES3 01 – CABINET PARTS

Products

PositionProduct
1MAY W10366206SP
1MAY W10299310
1MAY W10517966
2LINER (NOT A SERVICEABLE PART)
3MAY B5759655
4COVER-FILL TUBE
5Brake, Foot
6MAY 10351006
7MAY 12992602
8COVER, HINGE(BLACK)
9MAY 12990101
10Screw (8)
11SCREW (6)
12MAY 12607104ED
13MAY 12566606ED
14COVER, CORNER (BLACK)
15ROLLER ASSEMBLY (RIGHT HAND)
15ROLLER ASSEMBLY (LEFT HAND)
16Screw (8)
17MAY W10210978
18Grille Assembly (Black)
19TUBE-DRAIN
20SCREW (10)
21Insulation, Sound
22MAY W10217701
