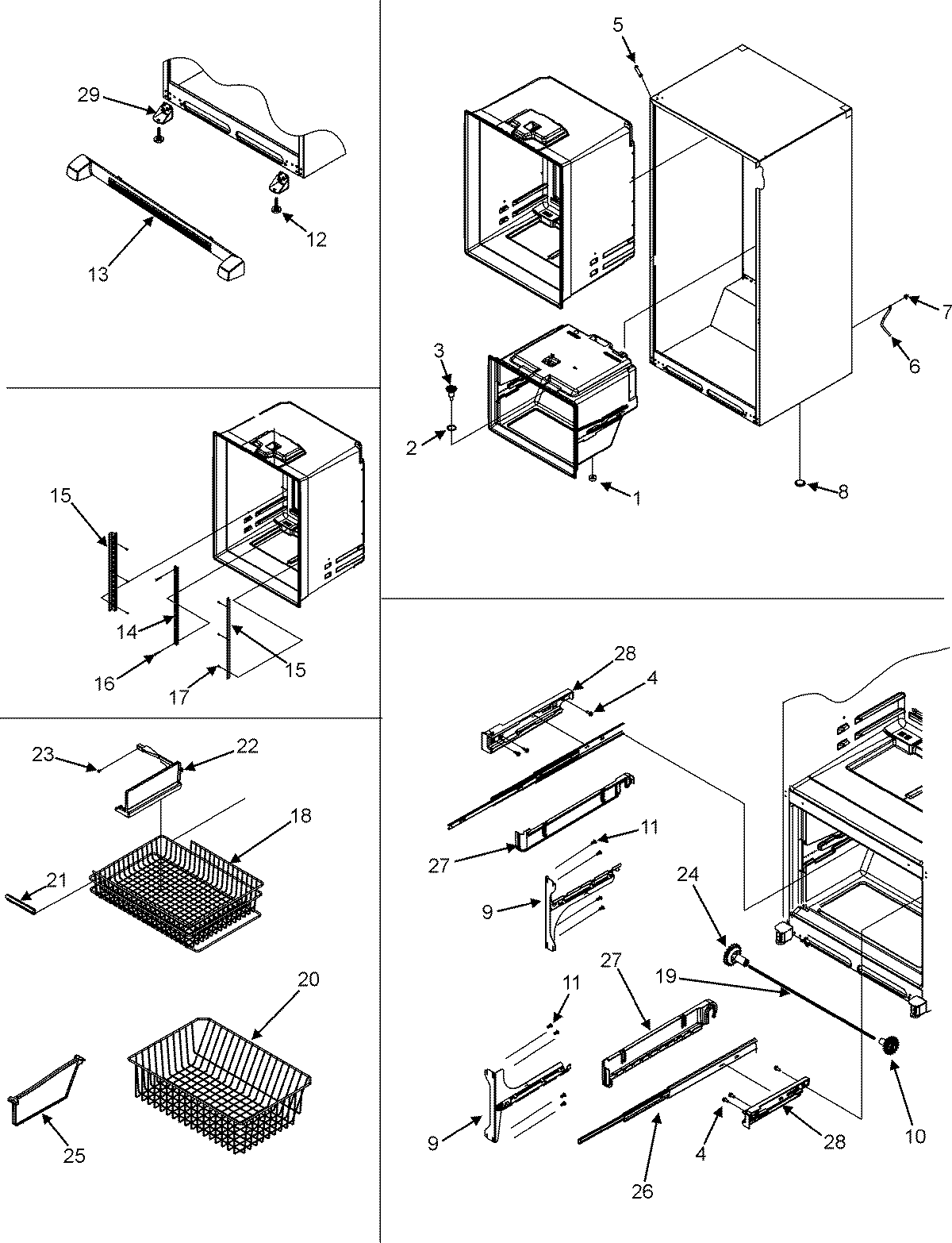

MBL2255KES 08 – INTERIOR CABINET/FRZ SHELVES/TOE GRILLE

MBL2255KES 08 – INTERIOR CABINET/FRZ SHELVES/TOE GRILLE

Written by

in

MBL2255KES 08 – INTERIOR CABINET/FRZ SHELVES/TOE GRILLE

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4Screw (6)
567003485 Whirlpool Refrigerator Corner Cover (Black)
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
9BRACKET, DRAWER SLIDE (LT)
9BRACKET, DRAWER SLIDE (RT)
10GEAR (RT)
12W11177593 Whirlpool Leveling Feet
13Clip, Grille
13WPW10534162 Whirlpool Refrigerator Front Grille
1467001073 Whirlpool Refrigerator Center Ladder
15LADDER, SIDES
16W10709795 Whirlpool Refrigerator Screw
17MAY 67006400
19SHAFT, RACK
20MAY 67006024
21HANDLE, BASKET/SHELF
22Divider, Upper Basket
23MAY 67006608
24GEAR (LT)
25MAY 67006103
26W11658402 Whirlpool Drawer Slide Rail
27WPW10280613 Whirlpool Refrigerator Bracket
27WPW10280608 Whirlpool Refrigerator Bracket
28ADAPTER, SIDE (LT)
28ADAPTER, SIDE (RT)
2912906303WD Whirlpool Refrigerator Bracket
29MAY 67006491
