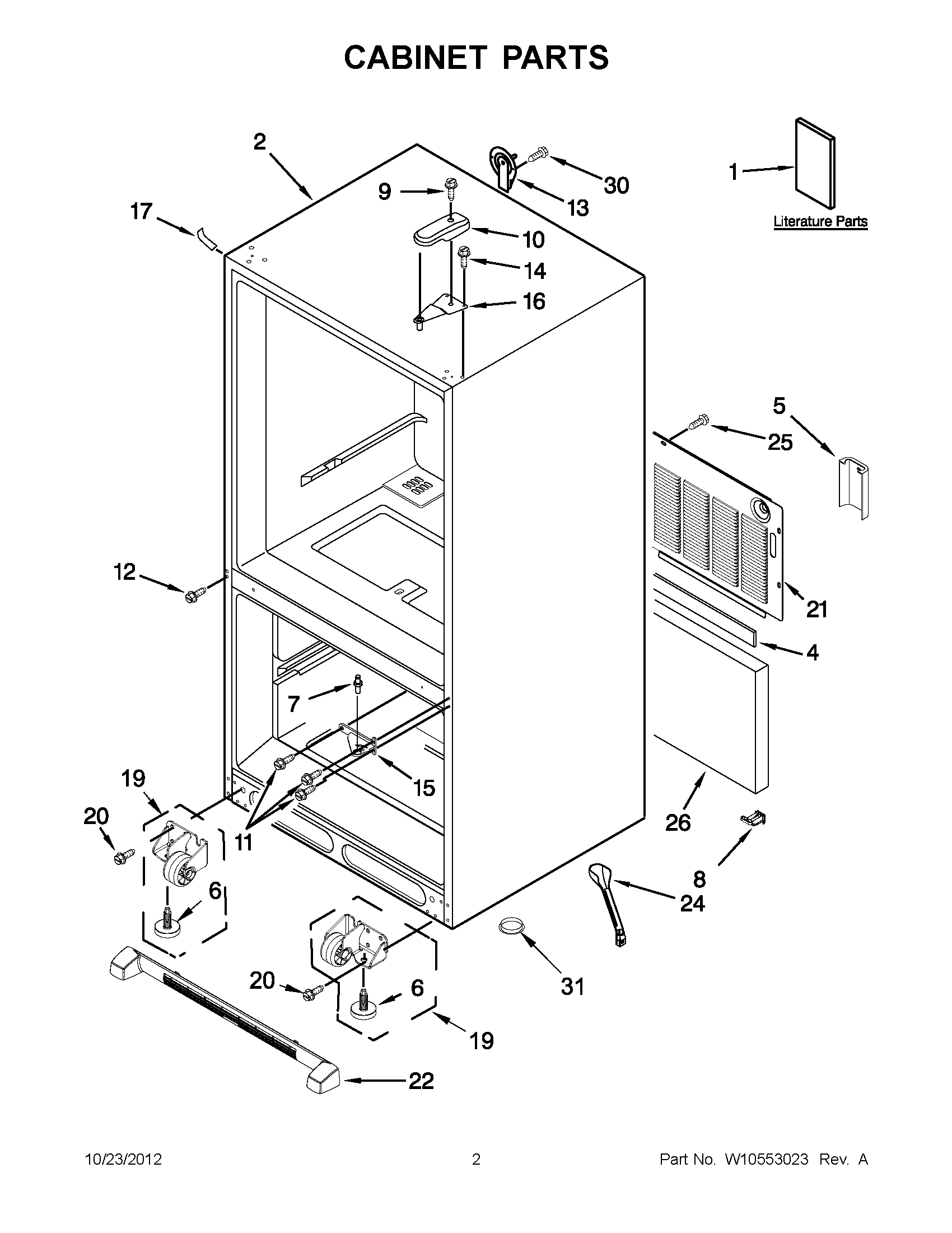

MBL2258XES5 01 – CABINET PARTS

Products

PositionProduct
1MAY W10366206SP
1MAY W10325962
1MAY W10517966
2LINER (NOT A SERVICEABLE PART)
4MAY B5759655
5GUARD-WATER VALVE
6Brake, Foot
7MAY 10351006
8MAY W10485986
9MAY 12992602
10COVER, HINGE(BLACK)
11MAY W10339086
12Screw (8)
13MAY 12726003
14SCREW (6)
15MAY 12607104ED
16MAY 12566606ED
17COVER, CORNER (BLACK)
19ROLLER ASSEMBLY (RIGHT HAND)
19ROLLER ASSEMBLY (LEFT HAND)
20Screw (8)
21MAY W10210979
22GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
24TUBE-DRAIN
25SCREW (10)
26Insulation, Sound
30MAY 12990504
31A3076901 Whirlpool Refrigerator Plug
