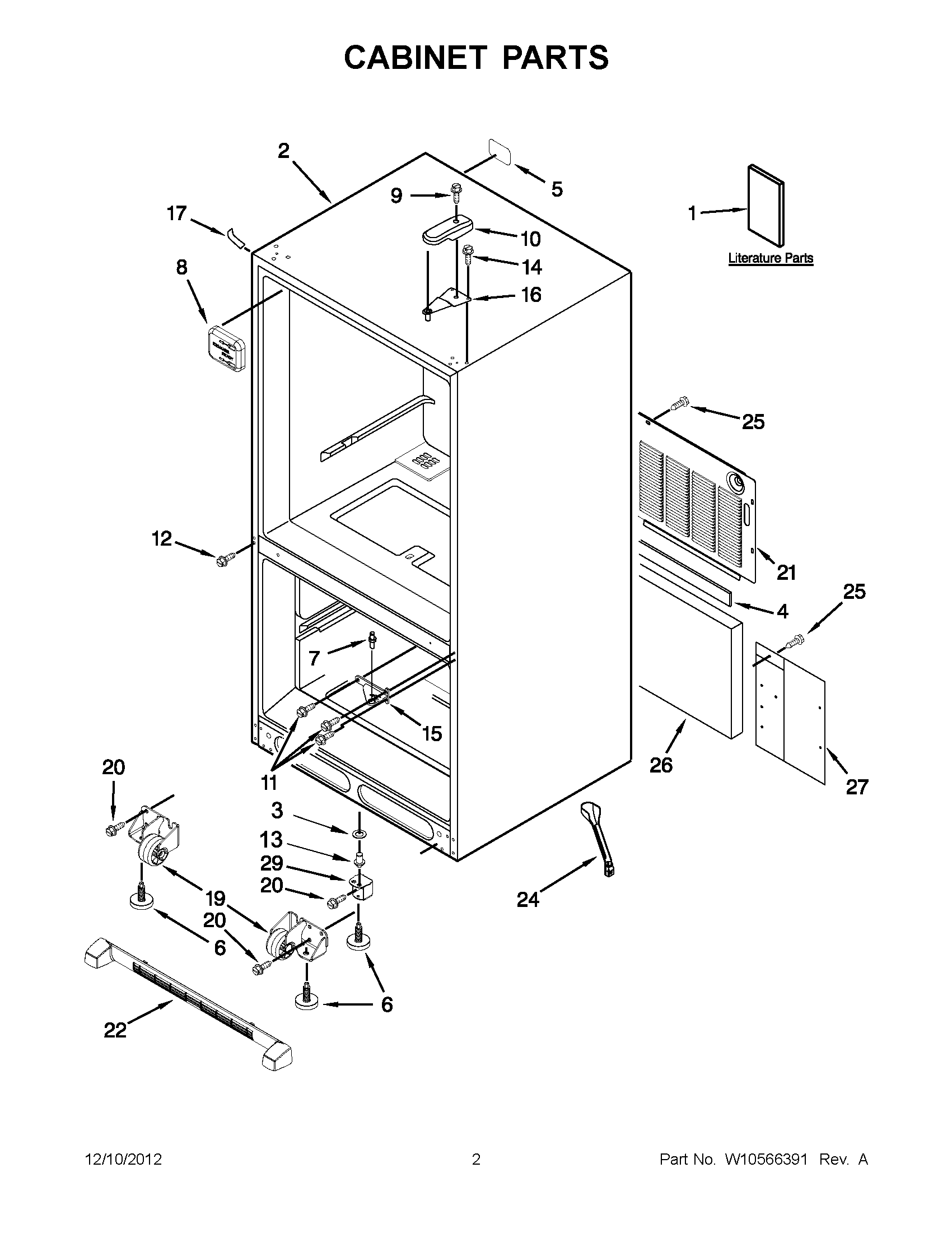

MBR1953XES3 01 – CABINET PARTS

Products

PositionProduct
1MAY W10325961
1MAY W10366206SP
1MAY W10517966
2LINER (NOT A SERVICEABLE PART)
3MAY M0274062
4MAY B5759655
5LABEL-FILL TUBE
6Brake, Foot
7PIN, CENTER HINGE (REAR)
8COVER-FILL TUBE
9MAY 12992602
10COVER, HINGE(BLACK)
11MAY 12990101
12Screw (8)
13MAY 10200802
14SCREW (6)
15MAY 12607104ED
16MAY 12566606ED
17COVER, CORNER (BLACK)
19ROLLER ASSEMBLY (RIGHT HAND)
20Screw (8)
21MAY W10210978
22Grille Assembly (Black)
24TUBE-DRAIN
25SCREW (10)
26Insulation, Sound
27MAY W10217701
29ROLLER ASSEMBLY (LEFT HAND)
