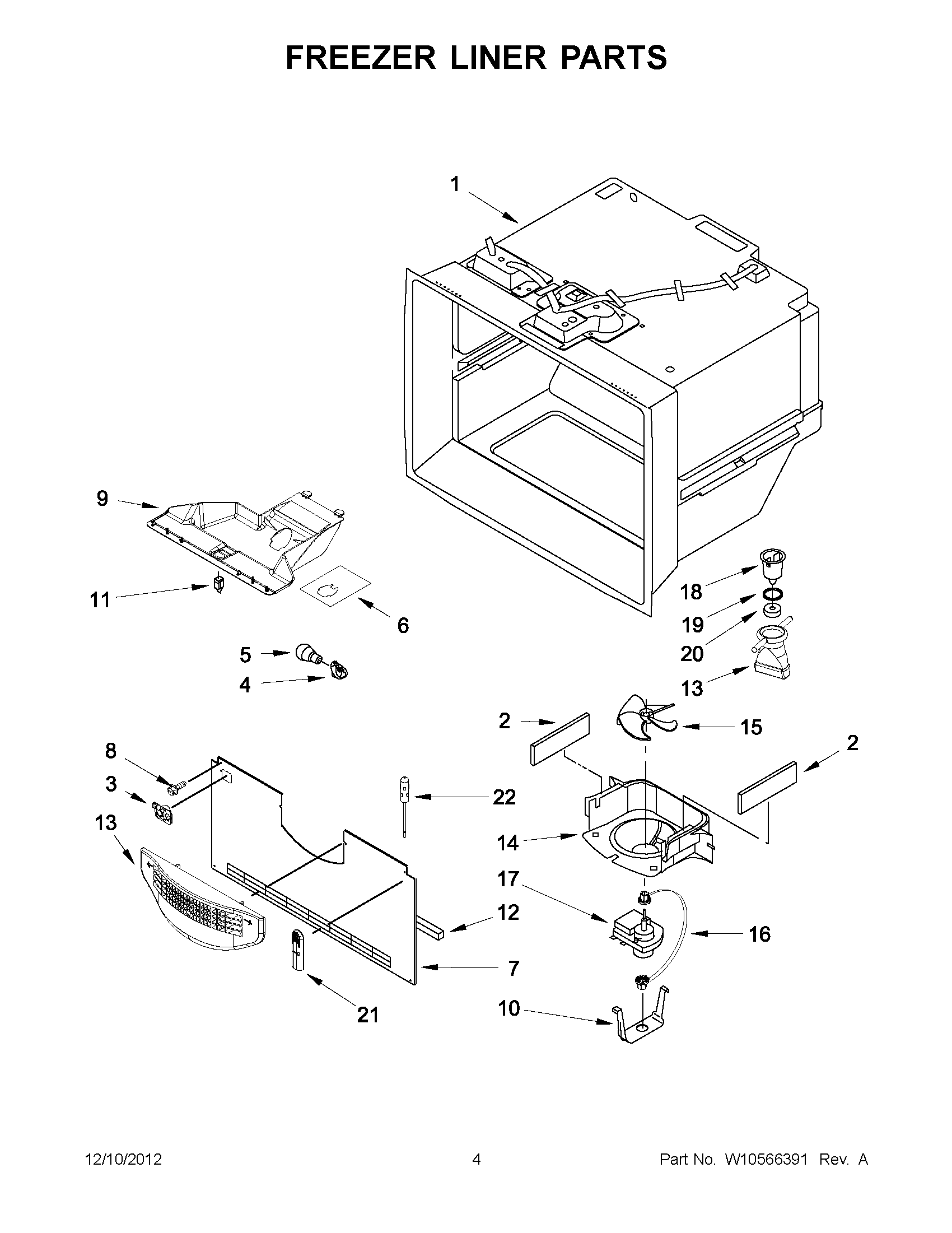

MBR1953XES3 02 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	MAY 12932103
4	W11447232 Whirlpool Refrigerator Socket
5	BULB, LIGHT
6	FOIL-FZ LIGHT
7	MAY W10308414
8	MAY 12990101
9	MODULE-FZ LIGHT
10	CLIP, EVAP. MOTOR
11	MAY 12466105
12	MAY A3189394
13	Grille, Fz Air
14	SHROUD, EVAP.FAN
15	Blade, Fan (Evaporator)
16	MAY W10121318
17	MAY W10128551
18	MAY D7753903
19	MAY M0500703
20	Gasket
21	MAY 12815301
22	MAY 12791409SP
23	MAY W10309238
