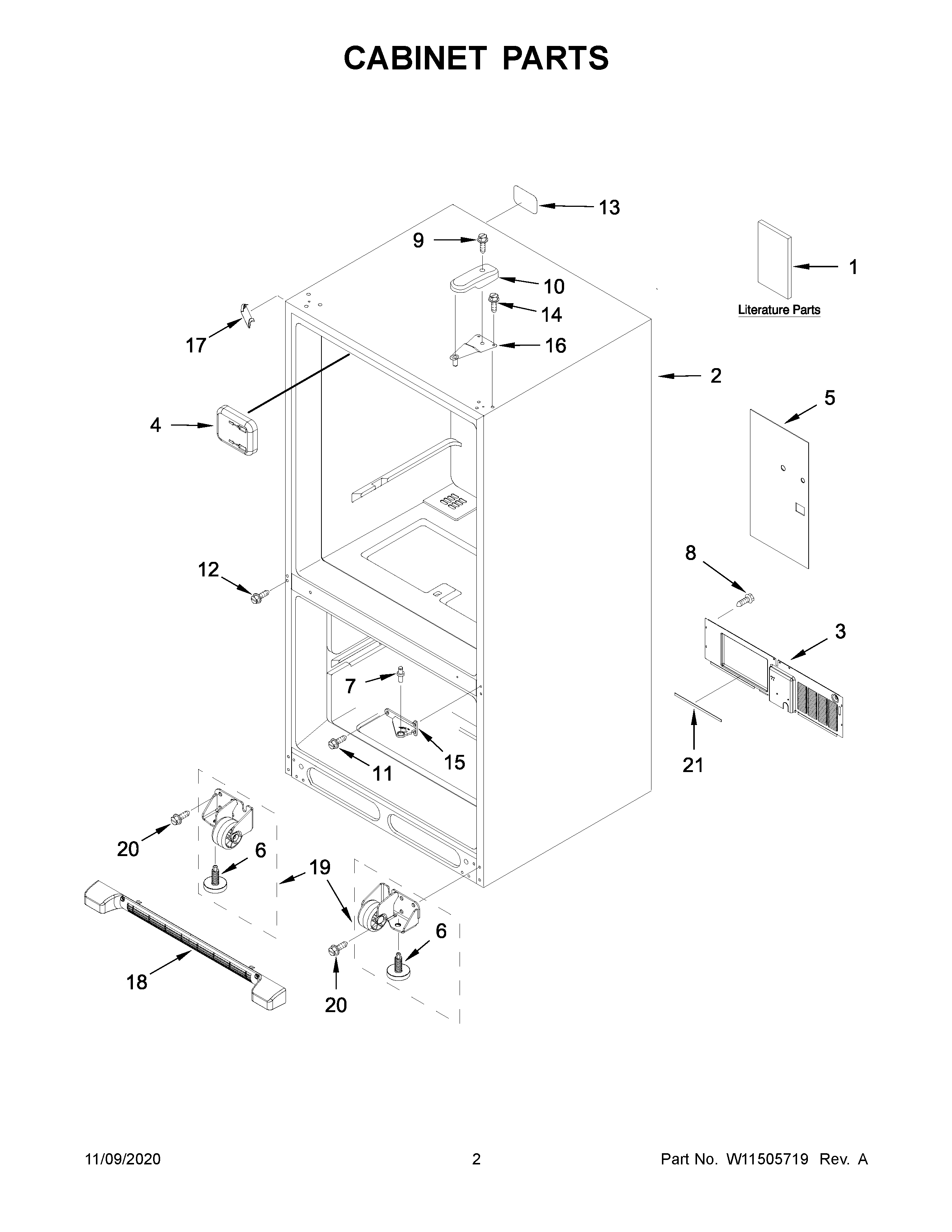

MBR1957FEZ05 02 – CABINET PARTS

MBR1957FEZ05 02 – CABINET PARTS

Written by

in

MBR1957FEZ05 02 – CABINET PARTS

Products

PositionProduct
1BTECH SHEET
1USE AND CARE GUIDE
1AENERGY GUIDE
2CABINET (NOT A SERVICEABLE PART)
3W10210978 Whirlpool Refrigerator Back Cover
4COVER, FILL TUBE
5W11684617 Whirlpool Valve Cover
6WPW10141622 Whirlpool Leveler
7WP67006642 Whirlpool Refrigerator Pin
8SCREW
9WP8281196 Whirlpool Screw
10W11106366 Whirlpool Refrigerator Door Hinge
11W11573362 Whirlpool Screw Assembly
12WP98165 Whirlpool Screw
13W11685757 Whirlpool Label
14WP489349 Whirlpool Refrigerator Screw
1512607103AP Whirlpool Refrigerator Door Hinge
16WP12566606ED Whirlpool Refrigerator Door Hinge
17WP12587703AP Whirlpool Refrigerator Filler
18WPW10534165 Whirlpool Refrigerator Front Grille
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21B5759655 Whirlpool Refrigerator Gasket
