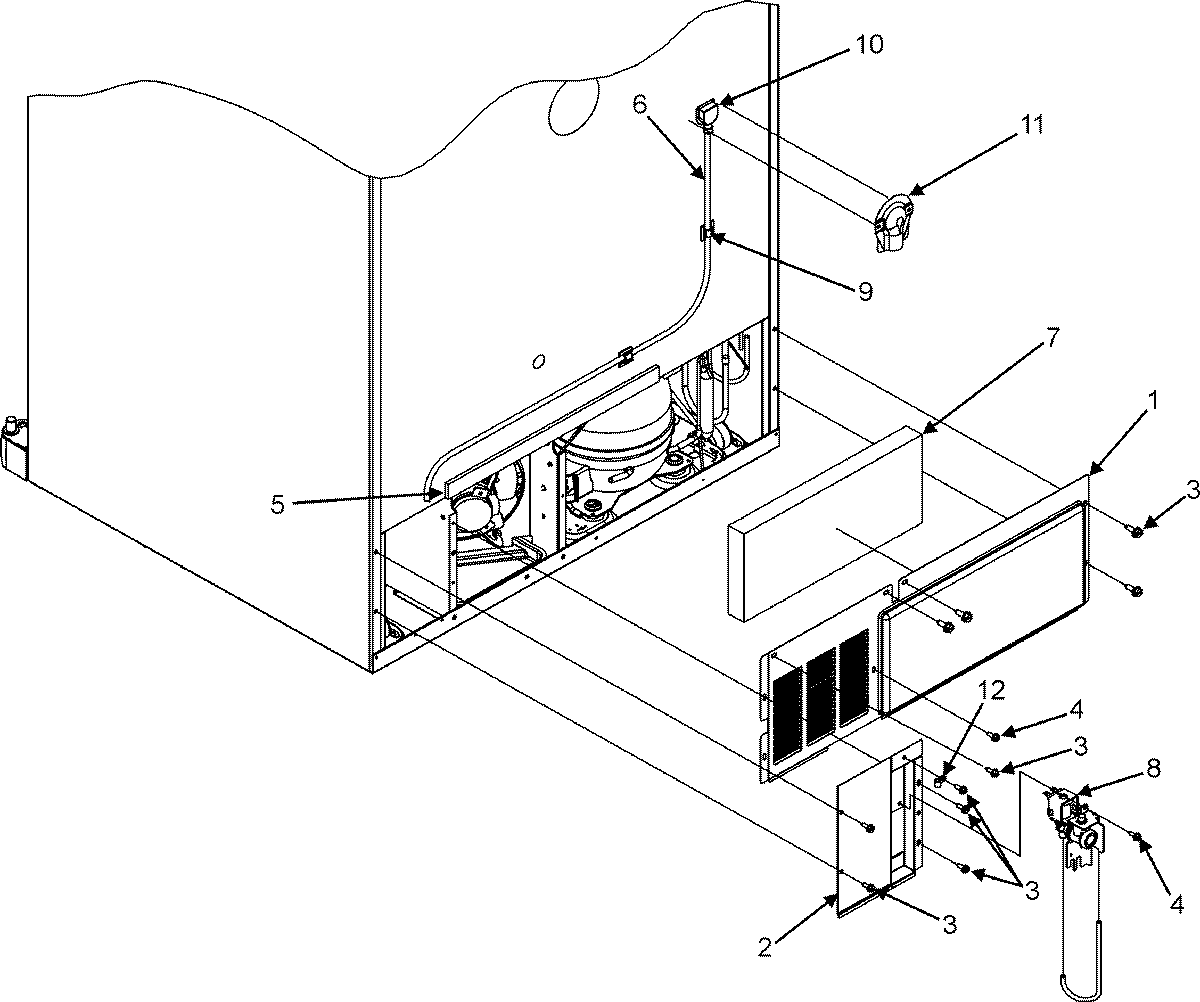

MBR2556KES 01 – CABINET BACK

MBR2556KES 01 – CABINET BACK

Written by

in

MBR2556KES 01 – CABINET BACK

Products

PositionProduct
1MAY 67006101
2MAY 12479803
3Screw (10)
4MAY 67006662
5Gasket
6Tubing, Plastic
767003796 Whirlpool Refrigerator Fiber Acoustic
8WP67003753 Whirlpool Refrigerator Inlet Valve
9WPM0104106 Whirlpool Refrigerator Clip
10Clip
10ELBOW, FILL TUBE
11WP98165 Whirlpool Screw
11COVER, WATER LINE
12W10833902 Whirlpool Refrigerator Clamp
13MAY A3223101
14WP67006506 Whirlpool Refrigerator Power Cord
