MBR2556KES 05 – EVAPORATOR/EVAP MOTOR/FRONT ROLLERS

MBR2556KES 05 – EVAPORATOR/EVAP MOTOR/FRONT ROLLERS

Written by

in

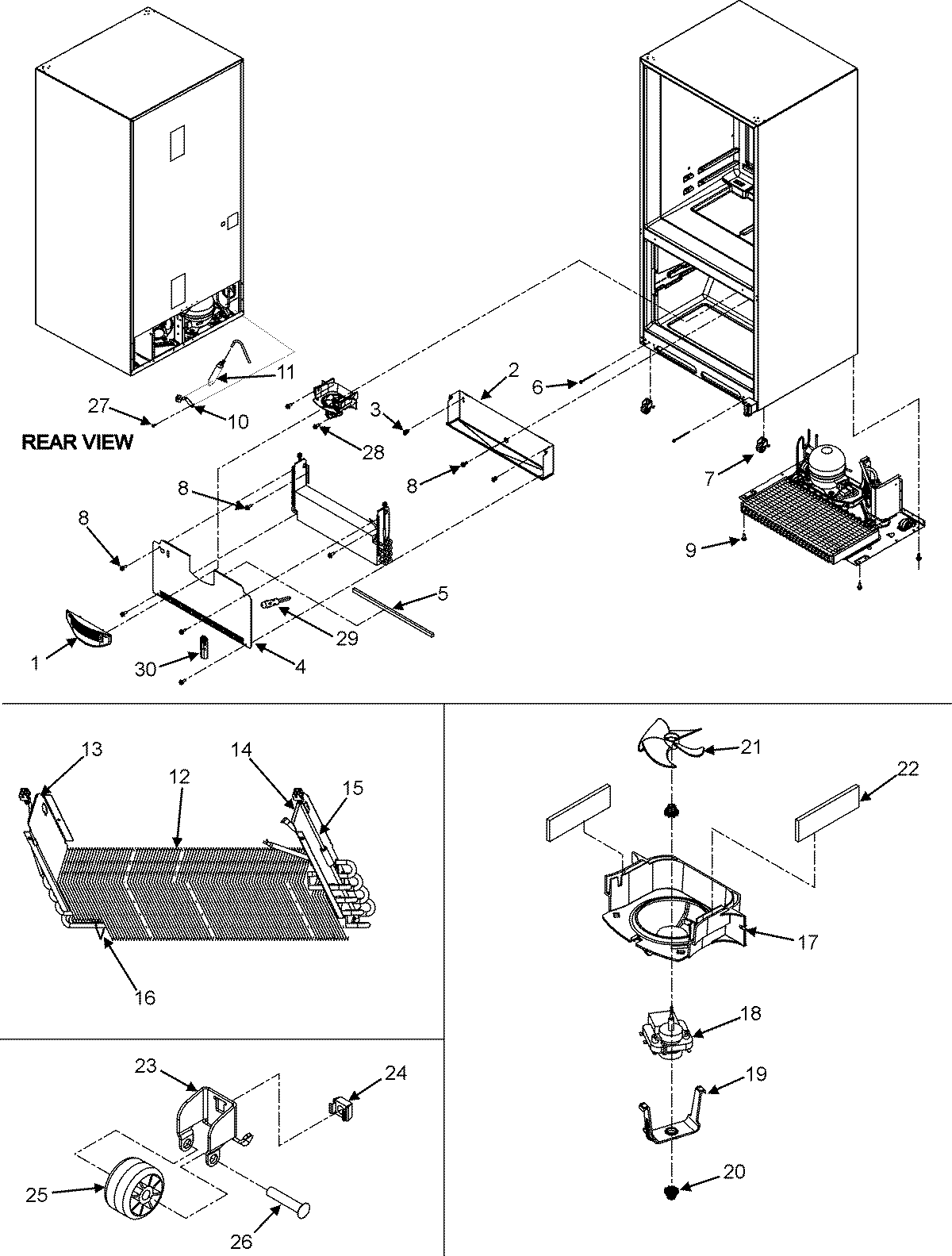

MBR2556KES 05 – EVAPORATOR/EVAP MOTOR/FRONT ROLLERS

Products

PositionProduct
1WPW10175909 Whirlpool Grille Assembly
2MAY 67002490
3MAY 10623002
4MAY 67005873
5W11159728 Whirlpool Refrigerator Gasket
671003131 Whirlpool Oven Screw
7ROLLER BRACKET ASSY
8Screw (10)
9Screw (4)
10MAY 10547002
11DRIER
1212002041 Whirlpool Refrigerator Evaporator Replacement Kit
13MAY 67001083
14MAY 67001084
15WP67002493 Whirlpool Refrigerator Defrost Heater
16W11673433 Whirlpool Clip
18WPW10128551 Whirlpool Evaporator Fan Motor
19MAY 67005633
20WP67002780 Whirlpool Refrigerator Grommet
21MAY 12217201
22W10856123 Whirlpool Refrigerator Gasket
2312456801V Whirlpool Refrigerator Bracket
24MAY M0286708
25WP10450603 Whirlpool Refrigerator Roller
26MAY M1205302
27SCREW
28WP98165 Whirlpool Screw
2912002355 Whirlpool Refrigerator Thermistor Kit
30WP67003924 Whirlpool Refrigerator Cover
31WP67003426 Whirlpool Refrigerator Thermostat
32MAY 67003931
