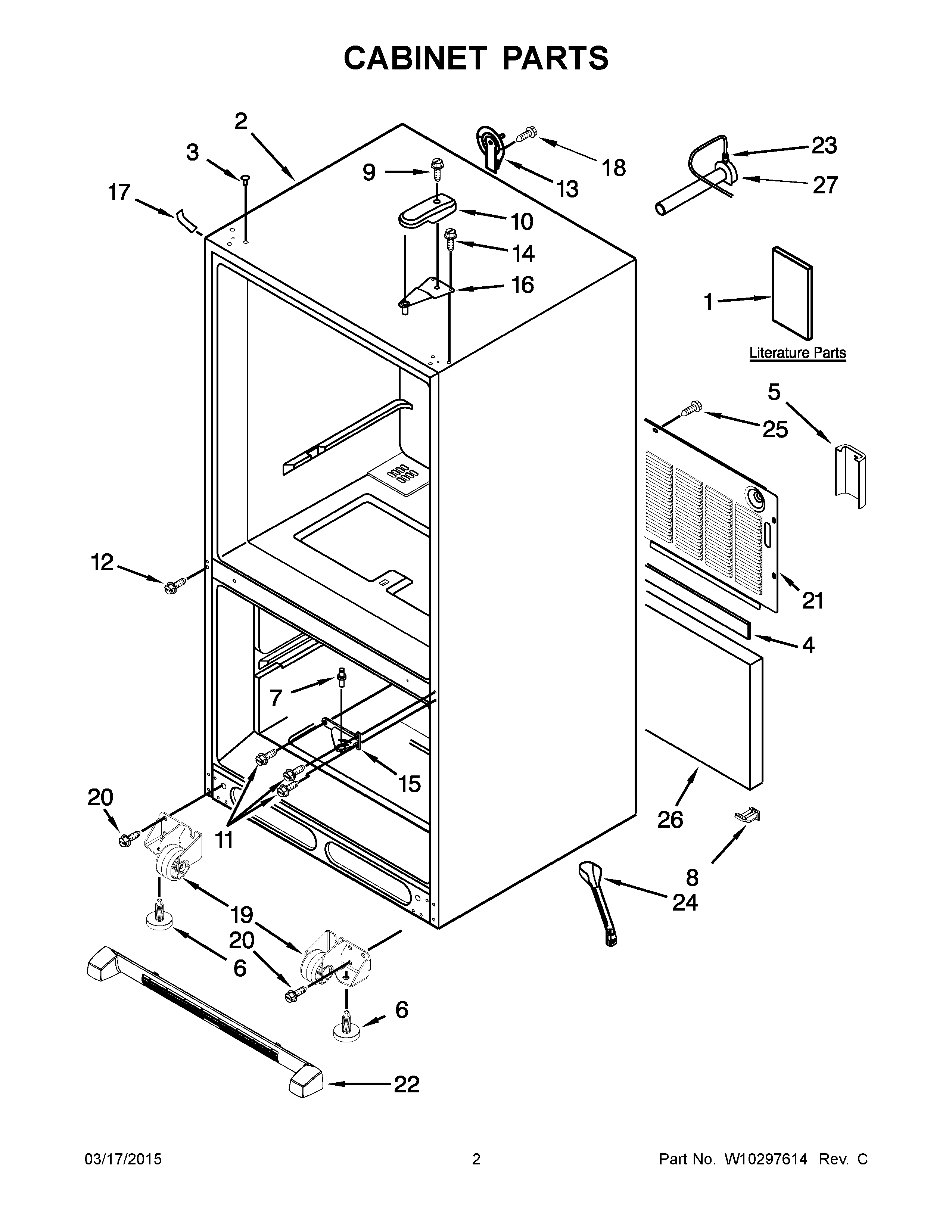

MBR2556KES4 02 – CABINET PARTS

Products

PositionProduct
1AMAY W10183260
1Owners Manual
1BMAY W10238840
2LINER (NOT A SERVICEABLE PART)
3MAY M0310731
4MAY B5759655
5GUARD-WATER VALVE
6Brake, Foot
7MAY 10351006
8MAY W10216614
9MAY 12992602
10COVER, HINGE(BLACK)
11MAY 12990101
12Screw (8)
13MAY 12726003
14SCREW (6)
15MAY 12607104ED
16Hinge, Top
17COVER, CORNER (BLACK)
18MAY 12990504
19AROLLER ASSY. (FRONT) (RIGHT)
19ROLLER ASSY. (FRONT) (LEFT)
20Screw (8)
21MAY W10211854
22GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
23CLIP
24MAY W10210988
25SCREW (10)
26Insulation, Sound
27MAY 10463203SP
