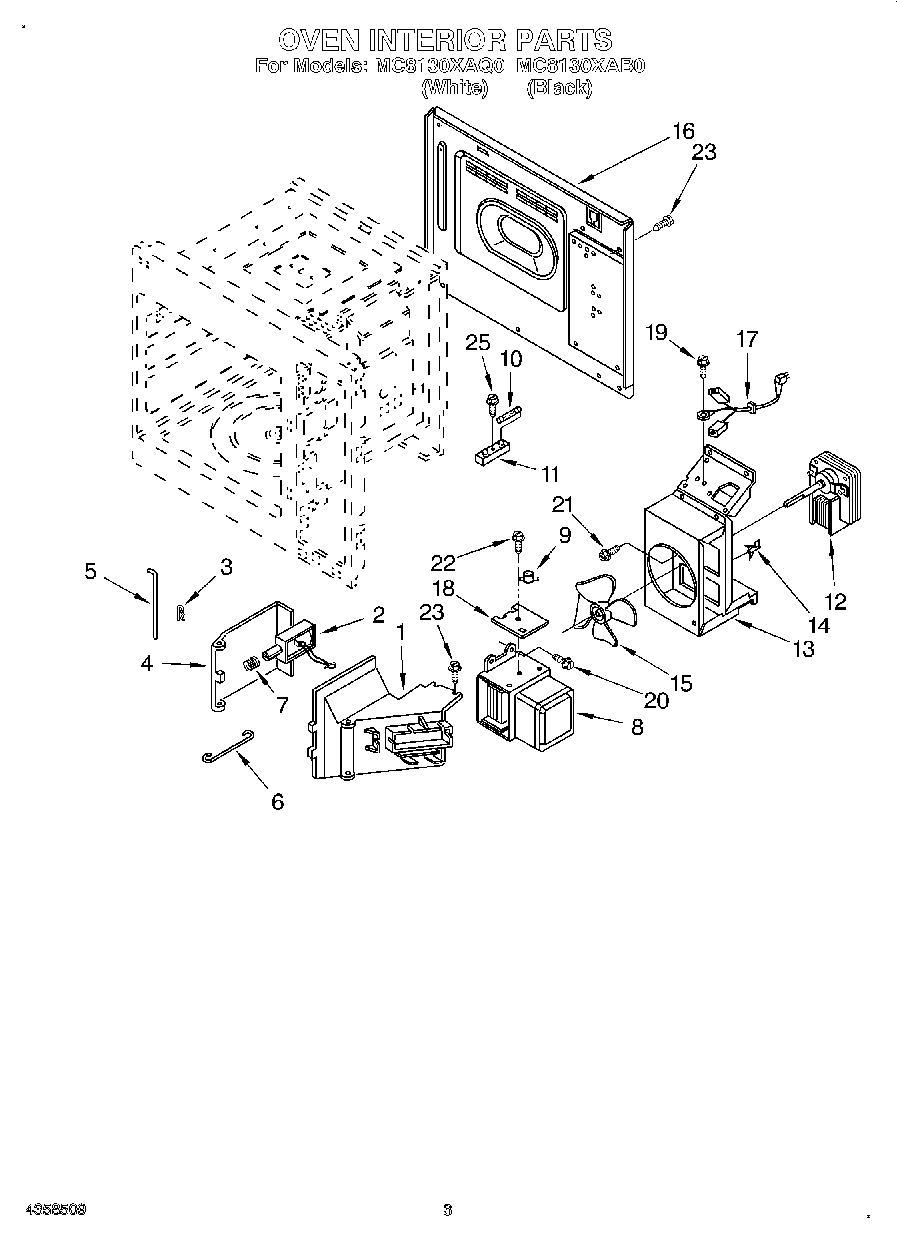

MC8130XAB0 02 – OVEN INTERIOR

MC8130XAB0 02 – OVEN INTERIOR

Written by

in

MC8130XAB0 02 – OVEN INTERIOR

Products

PositionProduct
1Air Duct
2Solenoid
3Clip
4Bracket, Damper
5Shaft
6Connector, Damper
7Spring, Solenoid
8Magnatron
9Thermostat
10Fuse
11Holder, Fuse
12Motor, Fan
13Bracket, Mount
144392027 Whirlpool Microwave Primary Switch
15Fan
16Cover, Back
17Cord, Power
18Bracket, Thermostat
19Screw
20WP3400094 Whirlpool Screw
214344826 Whirlpool Refrigerator Screw
22Screw
23W11380570 Whirlpool Microwave Screw
25Screw
