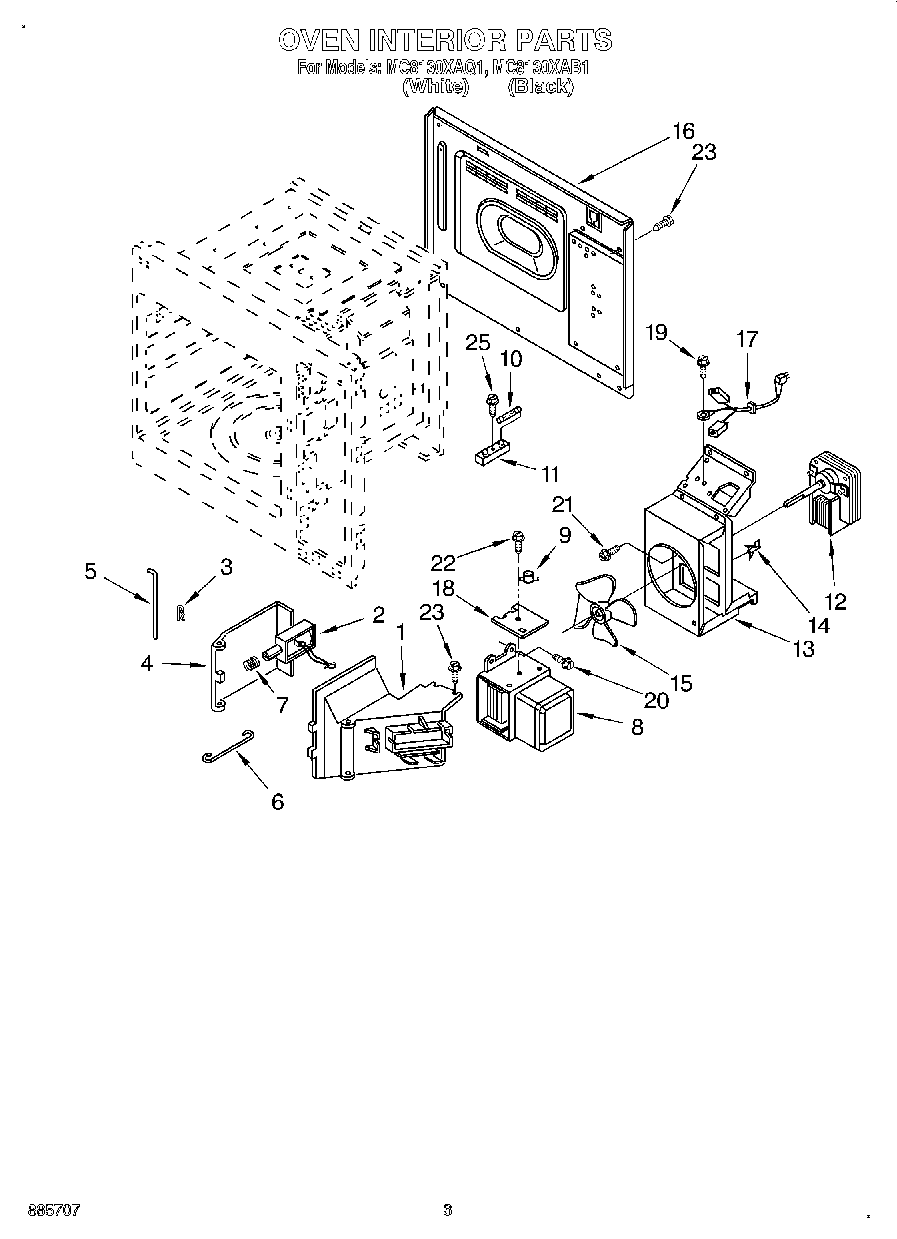

MC8130XAB1 02 – OVEN INTERIOR

Products

Position	Product
1	Air Duct
2	Solenoid
3	Clip
4	Bracket, Damper
5	Shaft
6	Connector, Damper
7	Spring, Solenoid
8	Magnatron
9	Thermostat
10	Fuse
11	Holder, Fuse
12	Motor, Fan
13	Bracket, Mount
14	4392027 Whirlpool Microwave Primary Switch
15	Fan
16	Cover, Back
17	Cord, Power
18	Thermostat Bracket
19	Screw
20	WP3400094 Whirlpool Screw
21	4344826 Whirlpool Refrigerator Screw
22	Screw
23	W11380570 Whirlpool Microwave Screw
25	Screw
