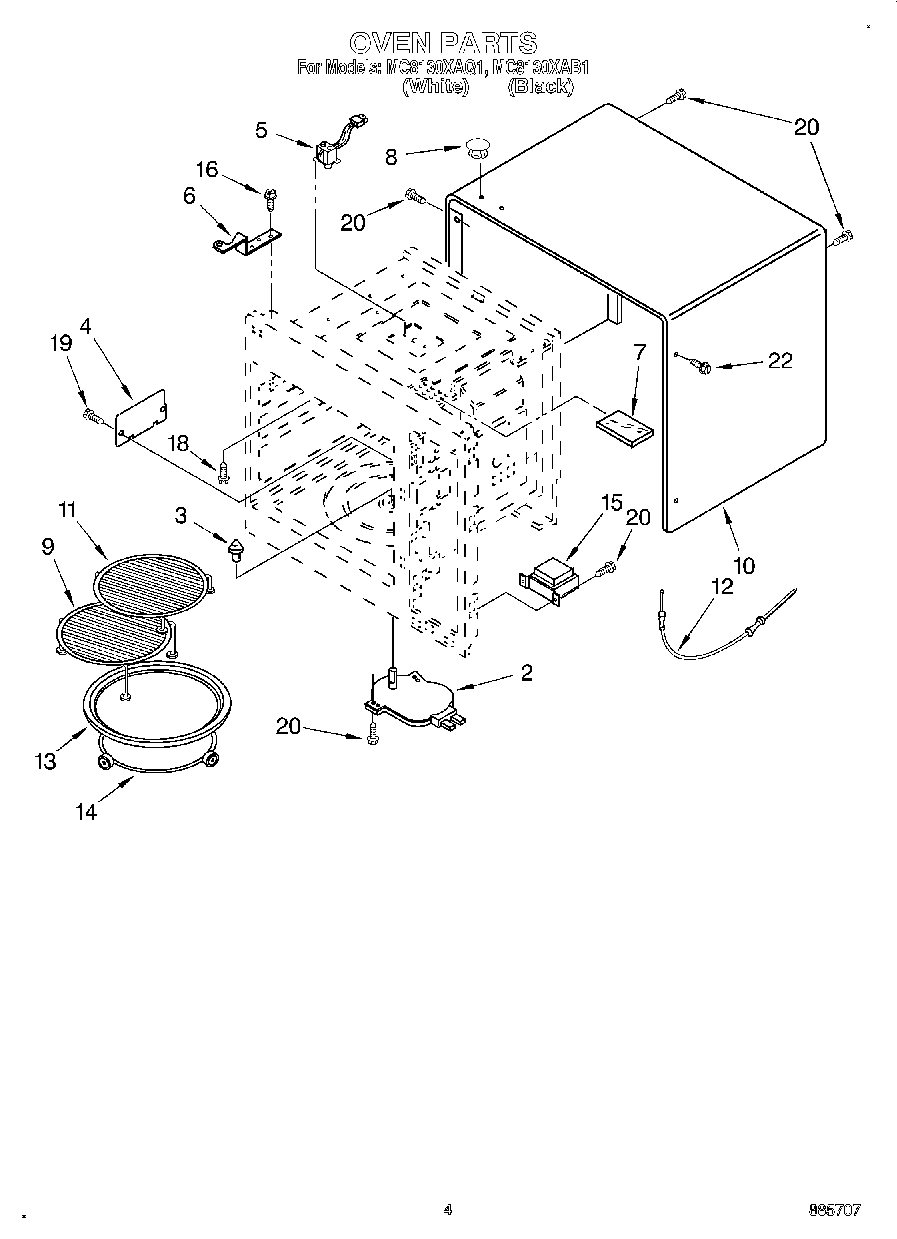

MC8130XAB1 03 – OVEN

Products

Position	Product
2	Motor, Turntable
3	Shaft, Turntable
4	Cover, Outlet
5	Probe Jack Assembly
6	Hinge
7	Glass, Lamp
8	Button Plug (Black)
8	Button Plug (White)
9	Rack
10	Cabinet Wrapper (White)
10	Cabinet Wrapper (Black)
11	Rack
12	Temperature Probe
13	Tray
14	Rotating Ring
15	Transformer, Power
16	WP3400094 Whirlpool Screw
18	Screw
19	Screw
20	W11380570 Whirlpool Microwave Screw
