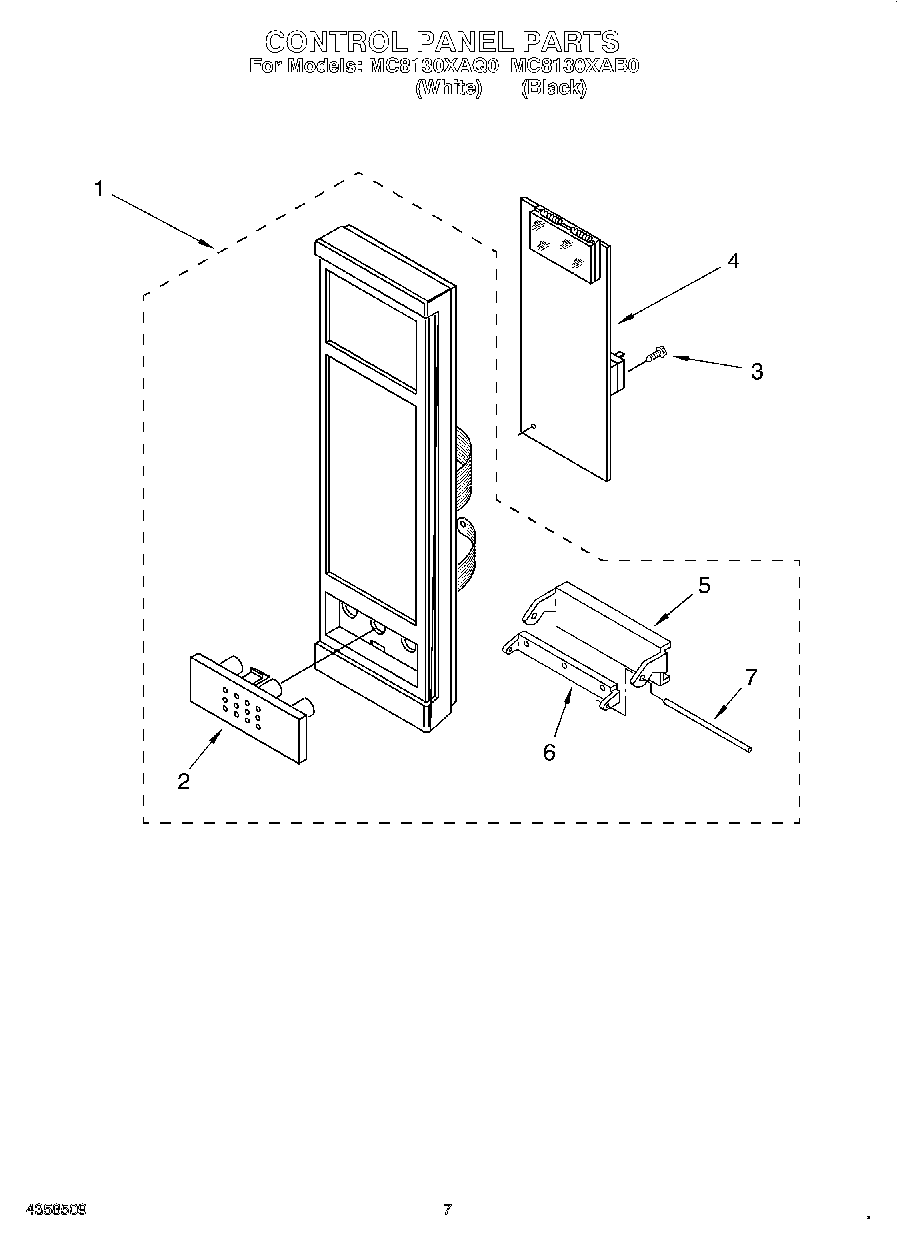

MC8130XAQ0 06 – CONTROL PANEL

Written by

Products

Position	Product
1	Control Panel Assembly (White)
1	Control Panel Assembly (Black)
2	Button, Open (Black)
2	Button, Open (White)
3	W11245710 Whirlpool Refrigerator Screw
4	Microcomputer
5	Lever, Release
6	Base, Lever
7	Pin, Lever
