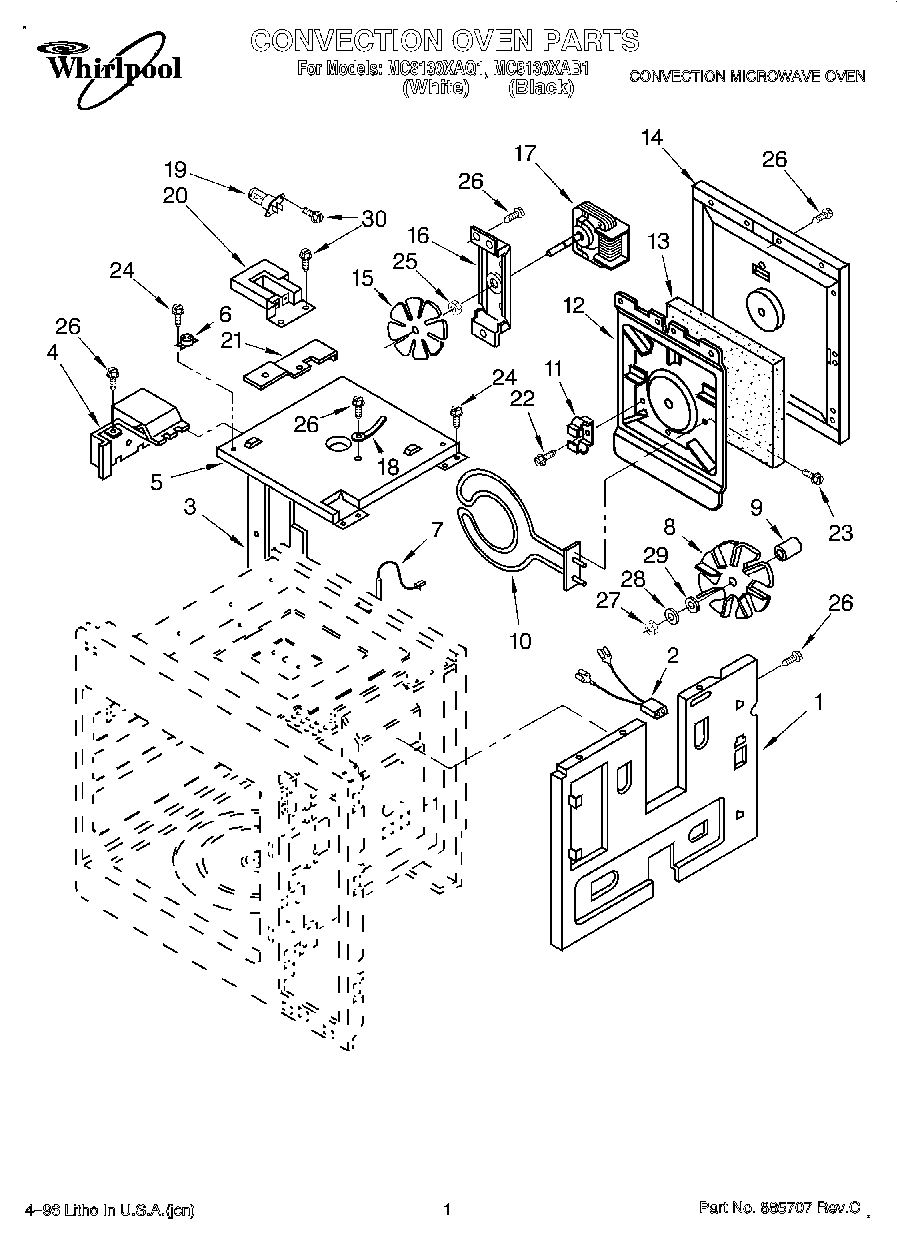

MC8130XAQ1 01 – CONVECTION OVEN

Products

Position	Product
1	Insulator
2	Motor Wire
3	Bracket, Support
4	Air Tunnel
5	Insulator
6	Thermostat
7	Thermistor
8	Fan Motor, Convection
9	Bushing
10	Convection Element
11	Clip, Convection Element
12	Duct, Magnatron
13	Insulation
14	Insulation Shield, Back
15	Fan Blade
16	Bracket, Convection Motor
17	Convection Motor
18	Lug
19	Lamp
20	Bracket, Lamp
21	Cover
22	W11380570 Whirlpool Microwave Screw
23	4344826 Whirlpool Refrigerator Screw
24	Screw
25	Nut
26	W11245710 Whirlpool Refrigerator Screw
27	Nut
28	WP8533914 Whirlpool Lock
29	Washer
30	Screw (White Model)
