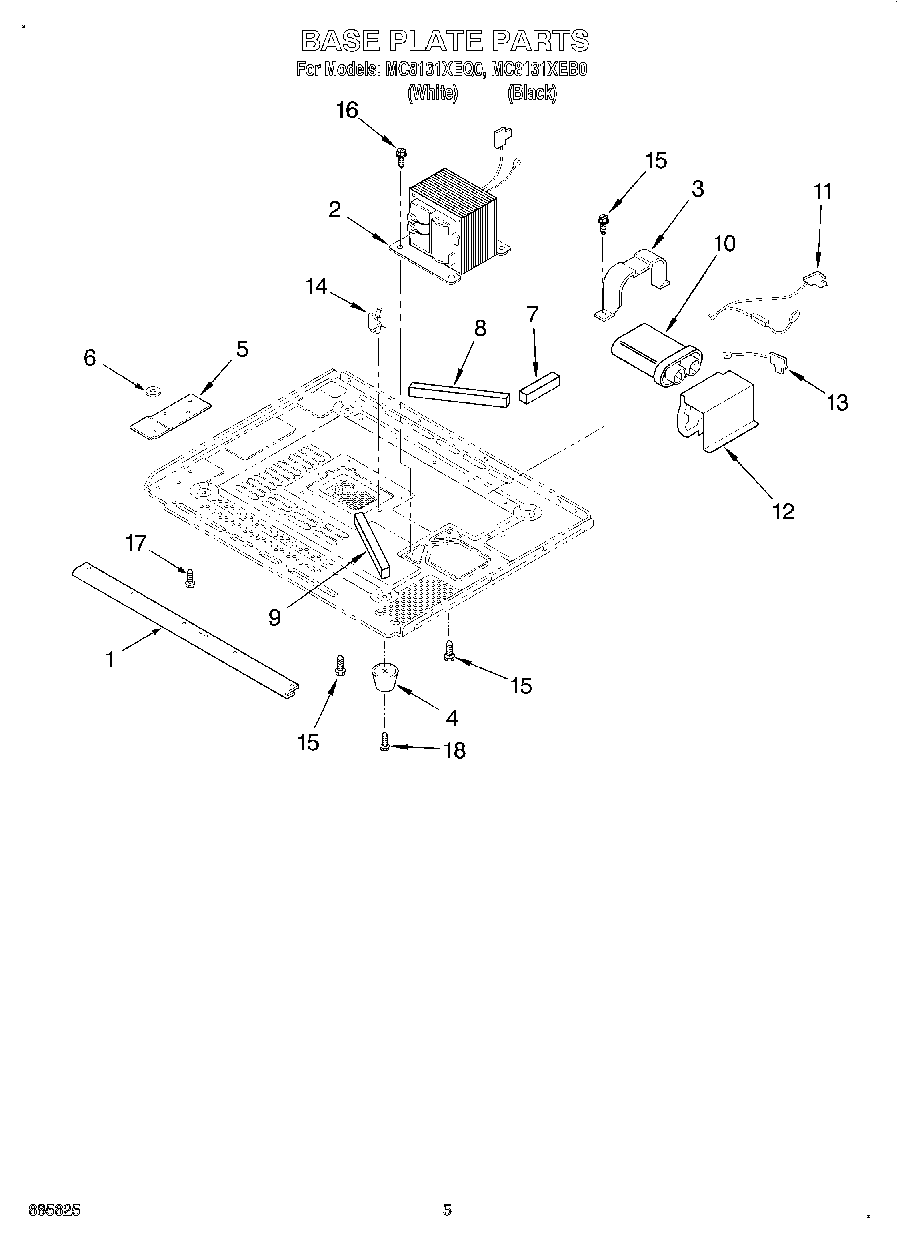

MC8131XEB0 04 – BASE PLATE

Written by

Products

Position	Product
1	Deco
2	Transformer
3	Bracket, Capacitor
4	Leg
5	Hinge
6	Charcoal Filter
7	Foam Seal
8	Foam Seal
9	Cushion
10	Capacitor
11	Diode Cable
12	Insulator
13	Cable
14	Wire Holder (4)
15	4344826 Whirlpool Refrigerator Screw
16	WP3400094 Whirlpool Screw
17	Screw
18	Screw
