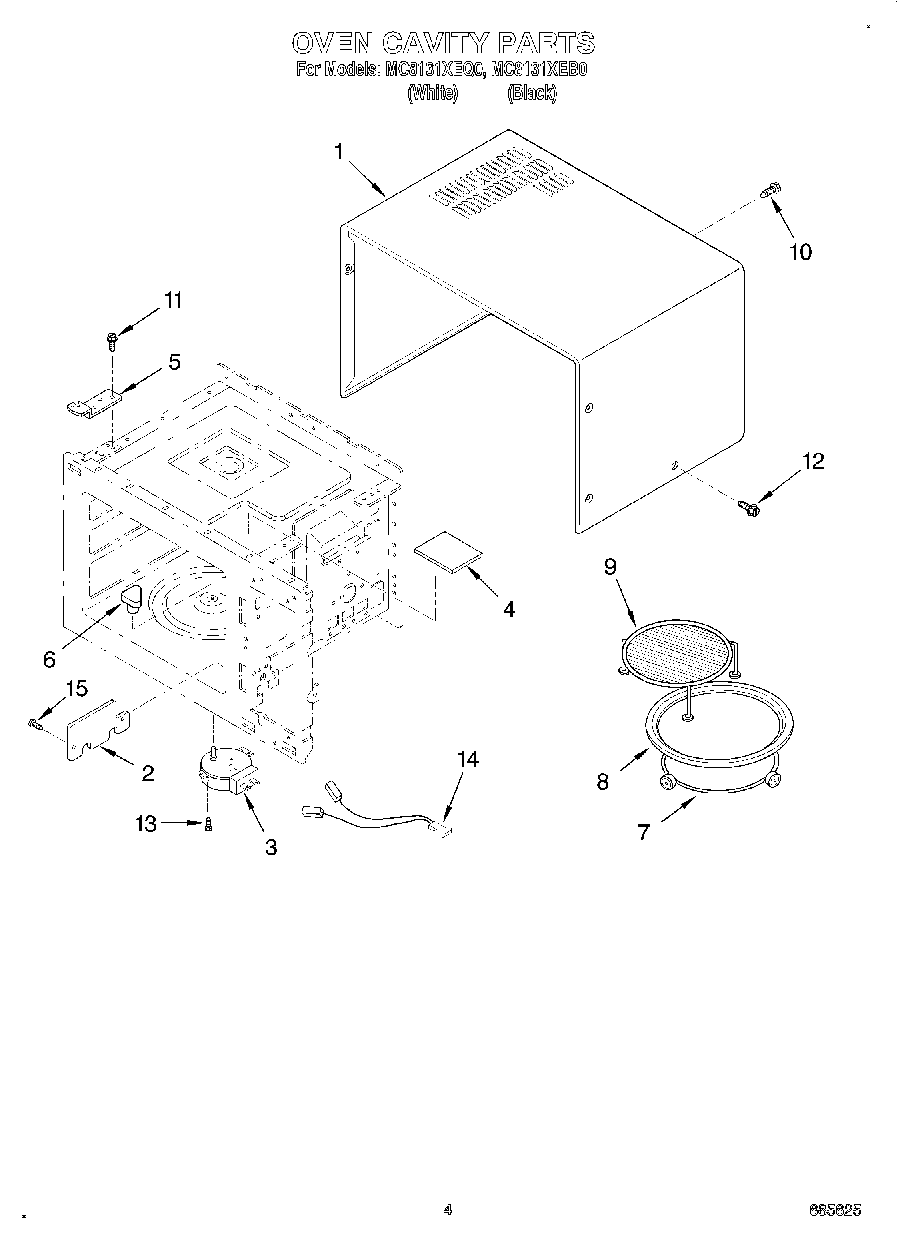

MC8131XEQ0 03 – OVEN CAVITY

Written by

Products

Position	Product
1	Outer Case (White Model)
1	Outer Case (Black Model)
2	Cover, Outlet
3	Motor, Turntable
4	Glass, Lamp
5	Hinge
6	Shaft, Turntable
7	Ring Assembly
8	Tray
9	Rack
10	W11380570 Whirlpool Microwave Screw
11	WP3400094 Whirlpool Screw
12	W11245710 Whirlpool Refrigerator Screw
13	Screw
14	Turn Table Wire Assembly
15	WP3196557 Whirlpool Screw
